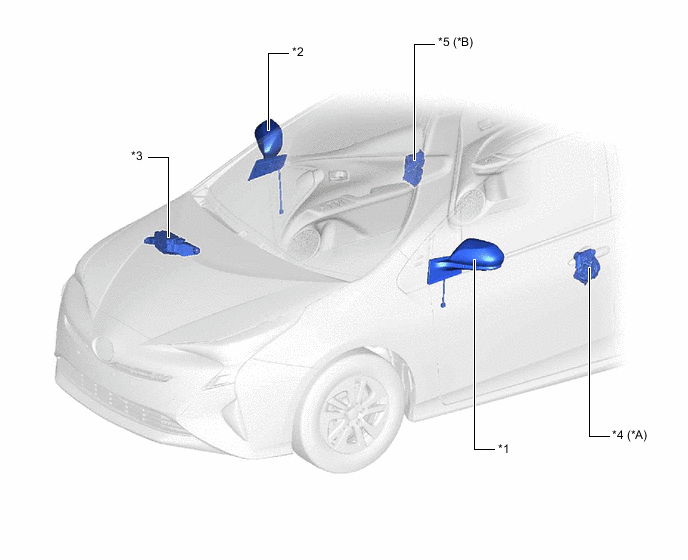

MIRROR SYSTEM
| *A | LHD Models | *B | RHD Models |
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | NO. 2 ENGINE ROOM RELAY BLOCK ASSEMBLY
|
*4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
|
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH
|
- | - |

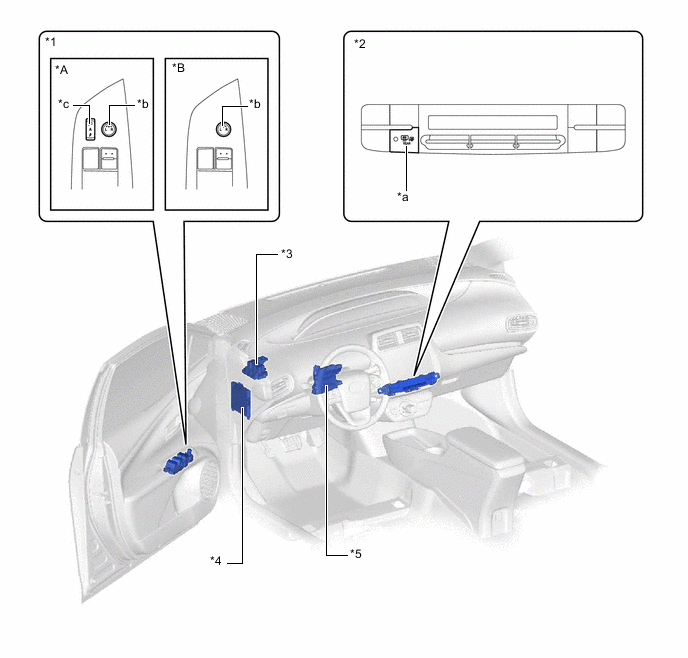

Figure 1. LHD Models
| *A | Models with Automatic Retractable Function | *B | Models without Automatic Retractable Function |
| *1 | OUTER MIRROR SWITCH ASSEMBLY | *2 | Air Conditioning Control Assembly |
| *3 | NO. 4 INSTRUMENT PANEL RELAY BLOCK ASSEMBLY
|
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | - | - |
| *a | Rear Window Defogger and Mirror Heater Switch | *b | Outer Mirror Switch |
| *c | Retraction / Restoration Switch | - | - |

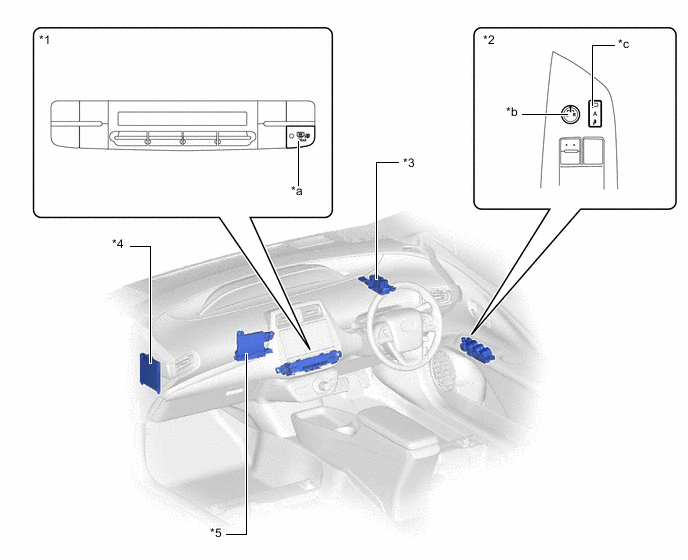

Figure 2. RHD Models
| *1 | Air Conditioning Control Assembly | *2 | OUTER MIRROR SWITCH ASSEMBLY |
| *3 | NO. 4 INSTRUMENT PANEL RELAY BLOCK ASSEMBLY
|
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | - | - |
| *a | Rear Window Defogger and Mirror Heater Switch | *b | Outer Mirror Switch |
| *c | Retraction / Restoration Switch | - | - |
