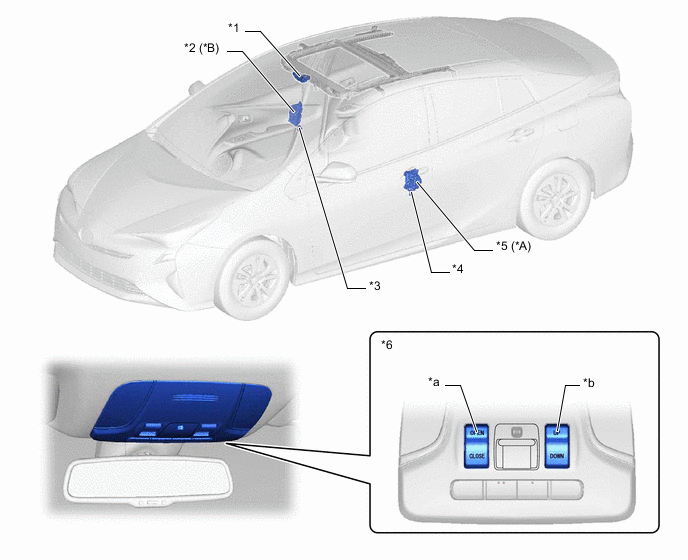

SLIDING ROOF SYSTEM
| *A | LHD Models | *B | RHD Models |
| *1 | SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY | *2 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | MAP LIGHT ASSEMBLY |
| *a | OPEN/CLOSE Switch | *b | TILT UP/DOWN Switch |

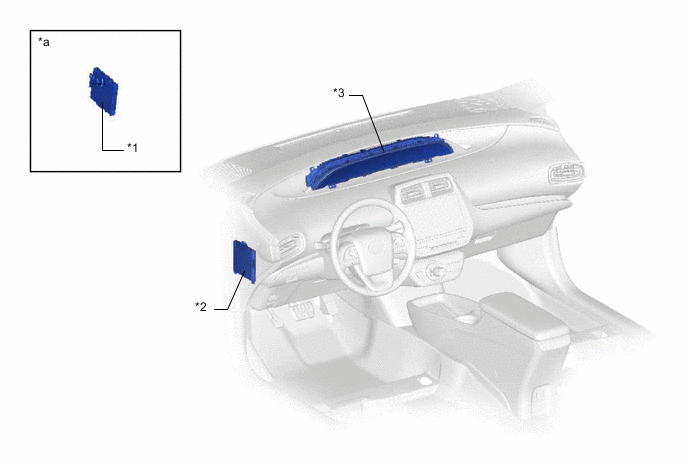

Figure 1. LHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION METER ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

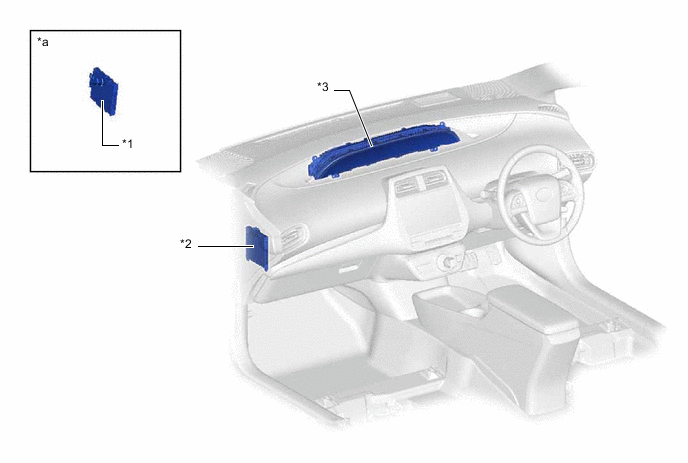

Figure 2. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION METER ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
