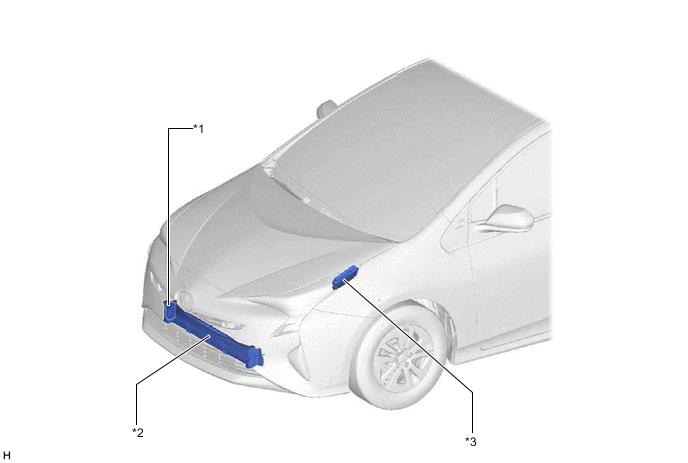

GRILLE SHUTTER SYSTEM
| *1 | SWING GRILLE ACTUATOR ASSEMBLY | *2 | RADIATOR SHUTTER SUB-ASSEMBLY |
| *3 | ECM | - | - |

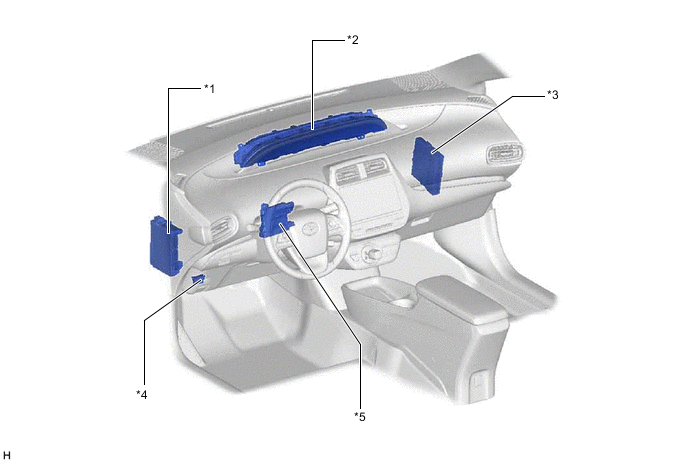

Figure 1. LHD Models
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | DLC3 |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | - | - |

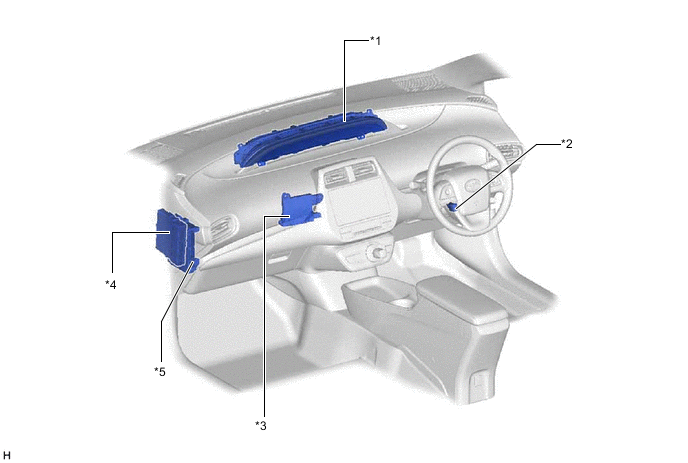

Figure 2. RHD Models
| *1 | COMBINATION METER ASSEMBLY | *2 | DLC3 |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | HYBRID VEHICLE CONTROL ECU |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | - | - |
