BODY STRUCTURE

Sound Absorption and Insulation Structure around Engine Compartment

1. Cowl top panel insulator and dash panel insulator outer are provided on the engine compartment side, minimizing penetration of engine noise and road noise into the cabin.

2. A hood insulators provided below the hood sub-assembly to suppress engine drive noise which penetrates the cabin and provide excellent quietness.

3. A front fender seal and front side air guide sub-assembly are used in the front fender to reduce the noise which travels through the fender toward the cabin.



   *A	Except Base Grade	-	-
   *1	Cowl Top Panel Insulator	*2	Hood Insulator
   *3	Dash Panel Insulator Outer	*4	Front Fender Upper Protector
   *5	Front Fender Seal	*6	Front Side Air Guide Sub-assembly
   *a	A - A Cross Section	-	-

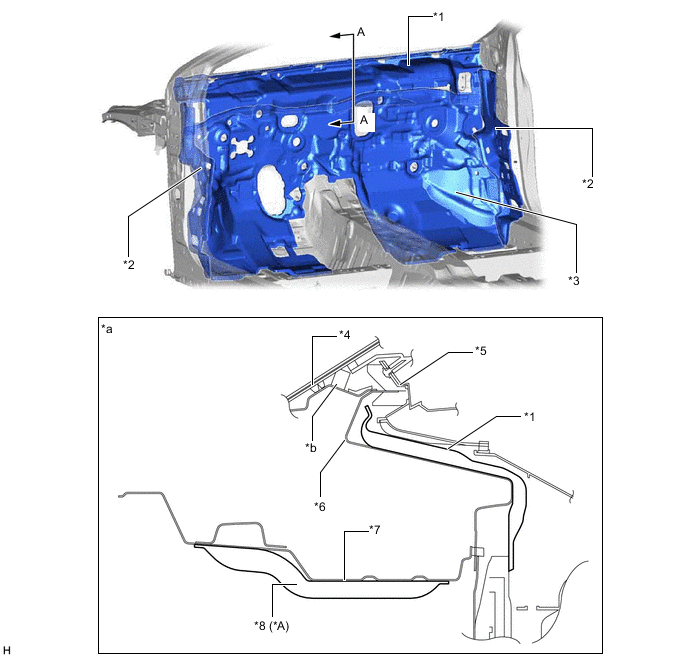

4. The cowl inner silencer, cowl side silencer and dash panel insulator inner are provided in the cabin side. The dash panel insulator inner has a structure which enlarges the cowl side parts while filling in holes and gaps as much as possible. This structure absorbs and insulates mechanical noise such as engine noise and ensures excellent quietness.



   *A	Except Base Grade	-	-
   *1	Cowl Inner Silencer	*2	Cowl Side Silencer
   *3	Dash Panel Insulator Inner	*4	Windshield
   *5	Instrument Panel	*6	Coul Top Panel
   *7	Cowl Top Outer Panel	*8	Cowl Top Panel Insulator
   *a	A - A Cross Section	*b	Seal Material
