AIRBAG SYSTEM


  1. CONSTRUCTION


    1. Front Airbag Sensor


      1. The front airbag sensors are electrical type deceleration sensors. As a result of the deceleration of the vehicle during a frontal collision, distortion is created in the internal element in the sensor and is converted into an electrical signal.

        A01RGQME22
        *1 Front Airbag Sensor
        *2 Deceleration Sensor
        *3 Airbag ECU Assembly
        *4 Communication Circuit

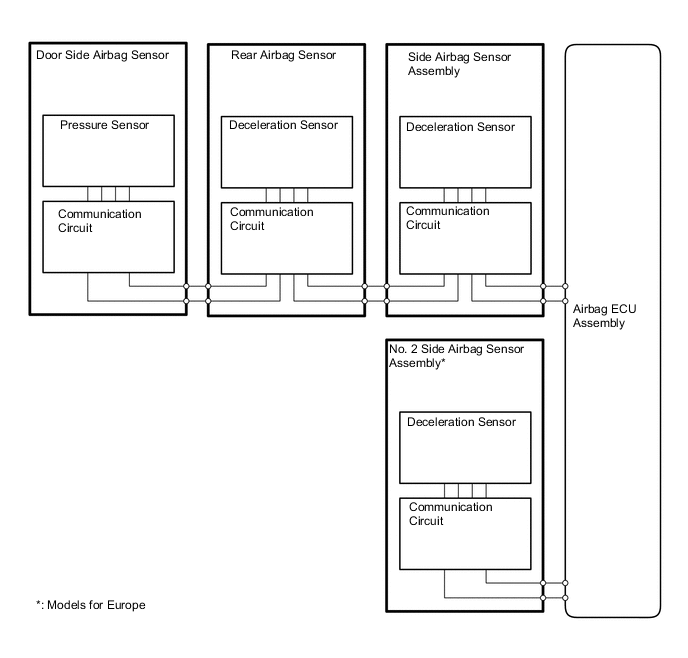

    2. Door Side Airbag Sensor, Side Airbag Sensor Assembly, No. 2 Side Airbag Sensor Assembly* and Rear Airbag Sensor


      1. The door side airbag sensor LH and door side airbag sensor RH consists of a pressure sensor, communication circuit, etc. Each sensor detects an impact to the respective side of the vehicle and sends a pressure value signal caused by deformation of the front door to the airbag ECU assembly.

      2. A deceleration sensor is built into each airbag sensor assembly, No. 2 Side Airbag Sensor Assembly* and rear airbag sensor. As a result of the deceleration of the vehicle during a side or rear side collision, distortion is created in the internal element in the sensor and is converted into an electrical signal.

        *: Models for Europe

        A01RGTYE02
