AIRBAG SYSTEM


  1. CONSTRUCTION

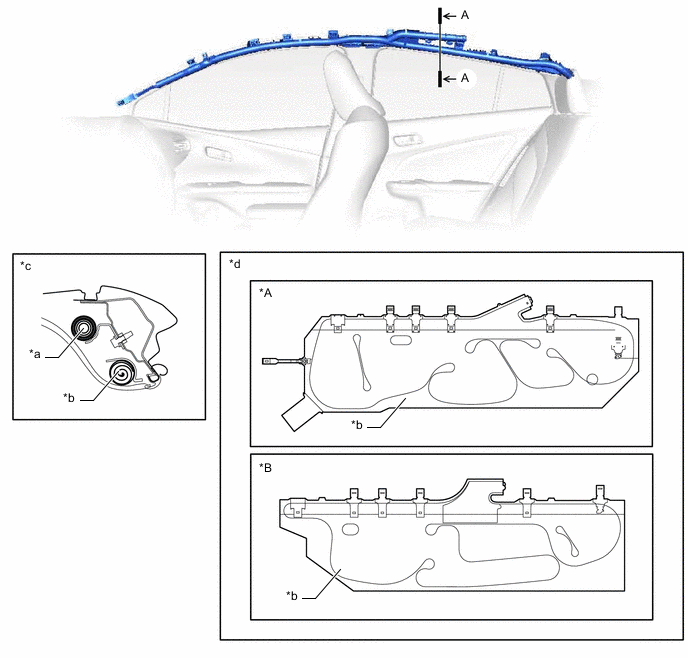

    1. Each curtain shield airbag assembly is a one-piece design, consisting of an inflator and a bag.

      A01VB5UC02
      *A Destination Package for South Korea *B Except Destination Package for South Korea
      *a Inflator *b Bag
      *c A-A Cross Section *d Bag Deployment Status
