AIRBAG SYSTEM


  1. CONSTRUCTION

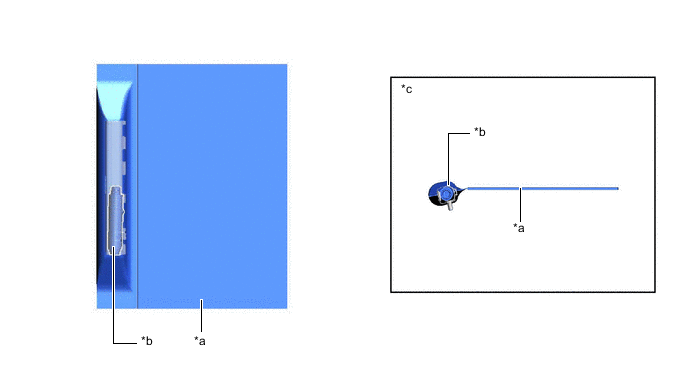

    1. The front seat airbag sub-assembly RH is installed in the seat cushion of the front passenger seat. The front seat airbag sub-assembly RH is a one-piece design, consisting of an inflator and a bag.

      A01RGLUC01
      *a Bag *b Inflator
      *c Cross Section - -
