AIRBAG SYSTEM


  1. CONSTRUCTION


    1. The horn button assembly contains a set of 2 initiators and propellants. The airbag ECU assembly helps optimize the airbag deployment rate by controlling the ignition timing of the initiators.

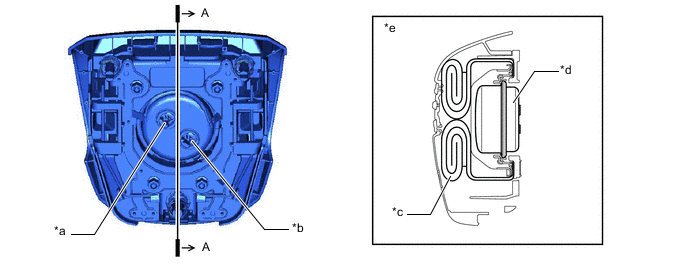

      A01VB80C03
      *a 2nd Initiator Connector *b 1st Initiator Connector
      *c Bag *d Inflator
      *e A-A Cross Section - -
