METER / GAUGE SYSTEM

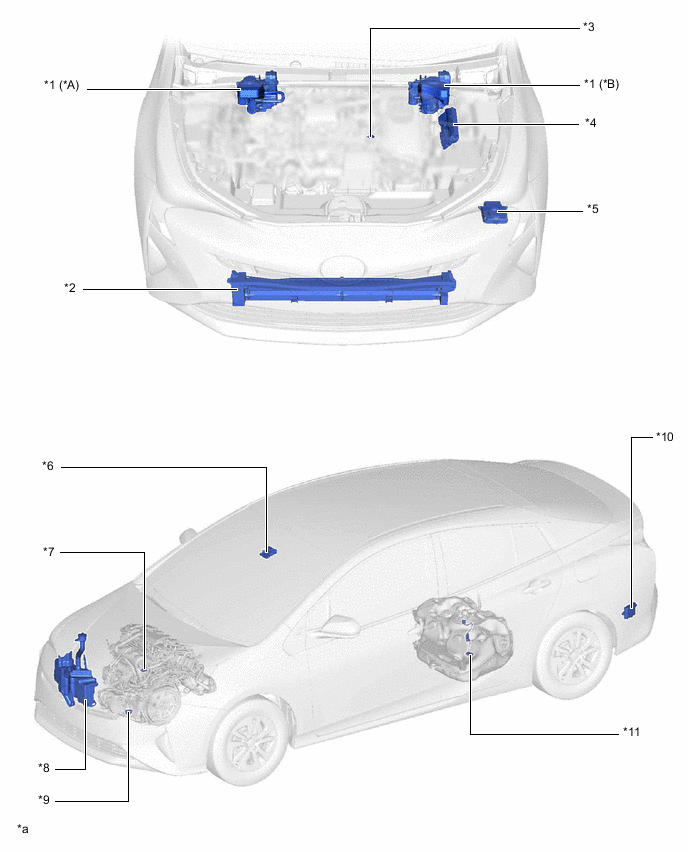

| *A | RHD Models | *B | LHD Models |
| *1 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
|
*2 | RADIATOR SHUTTER SUB-ASSEMBLY |
| *3 | ENGINE COOLANT TEMPERATURE SENSOR | *4 | ECM |
| *5 | HEADLIGHT ECU SUB-ASSEMBLY LH | *6 | FORWARD RECOGNITION CAMERA |
| *7 | ENGINE OIL PRESSURE SWITCH ASSEMBLY | *8 | WINDSHIELD WASHER JAR ASSEMBLY
|
| *9 | ENGINE OIL LEVEL SENSOR | *10 | BLIND SPOT MONITOR SENSOR LH |
| *11 | FUEL SENDER GAUGE ASSEMBLY | - | - |
| *a | The illustrations shown are examples only. | - | - |

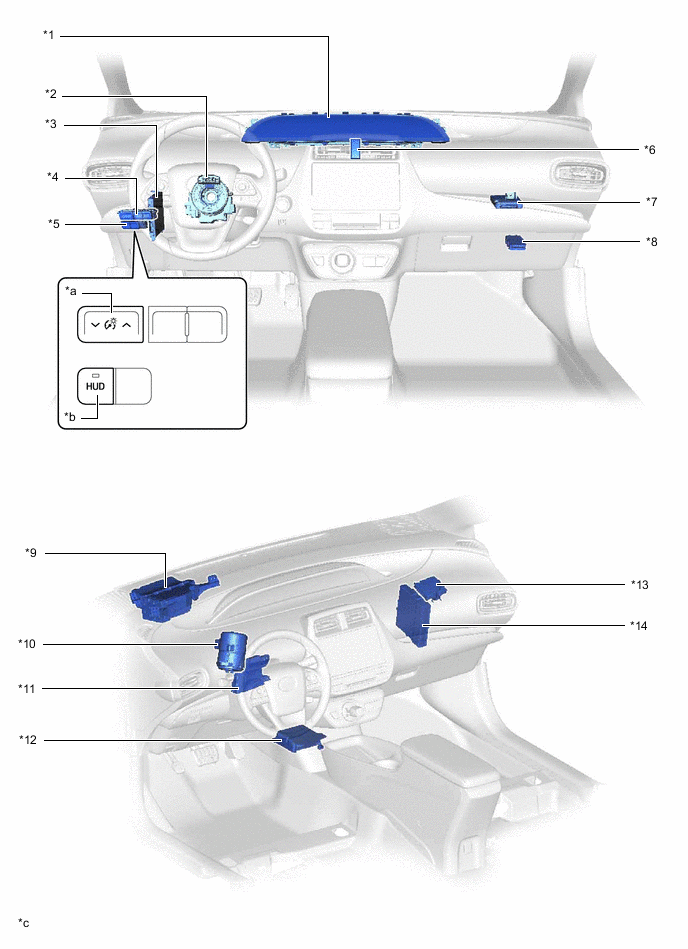

Figure 1. LHD Models
| *1 | COMBINATION METER ASSEMBLY | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | COMBINATION SWITCH ASSEMBLY |
| *5 | NO. 2 COMBINATION SWITCH ASSEMBLY | *6 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *7 | DRIVING SUPPORT ECU ASSEMBLY | *8 | NETWORK GATEWAY ECU |
| *9 | COMBINATION METER MIRROR ECU | *10 | POWER STEERING ECU ASSEMBLY |
| *11 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *12 | AIRBAG ECU ASSEMBLY |
| *13 | CLEARANCE WARNING ECU ASSEMBLY | *14 | HYBRID VEHICLE CONTROL ECU |
| *a | Rheostat Switch | *b | HUD Switch |
| *c | The illustrations shown are examples only. | - | - |

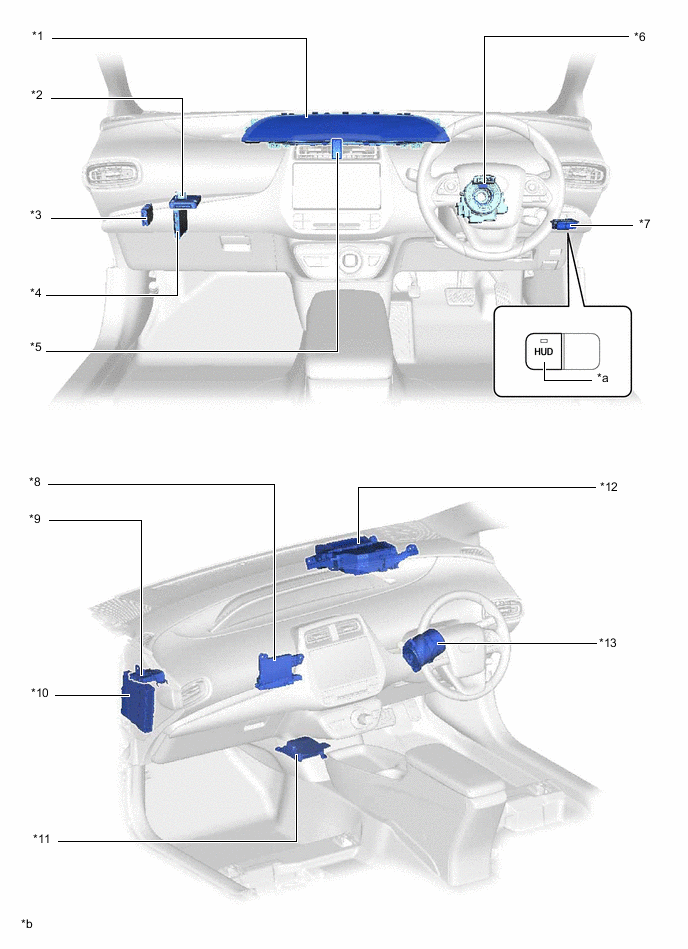

Figure 2. RHD Models
| *1 | COMBINATION METER ASSEMBLY | *2 | DRIVING SUPPORT ECU ASSEMBLY |
| *3 | NETWORK GATEWAY ECU | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *6 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
| *7 | NO. 2 COMBINATION SWITCH ASSEMBLY | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | CLEARANCE WARNING ECU ASSEMBLY | *10 | HYBRID VEHICLE CONTROL ECU |
| *11 | AIRBAG ECU ASSEMBLY | *12 | COMBINATION METER MIRROR ECU |
| *13 | POWER STEERING ECU ASSEMBLY | - | - |
| *a | HUD Switch | *b | The illustrations shown are examples only. |

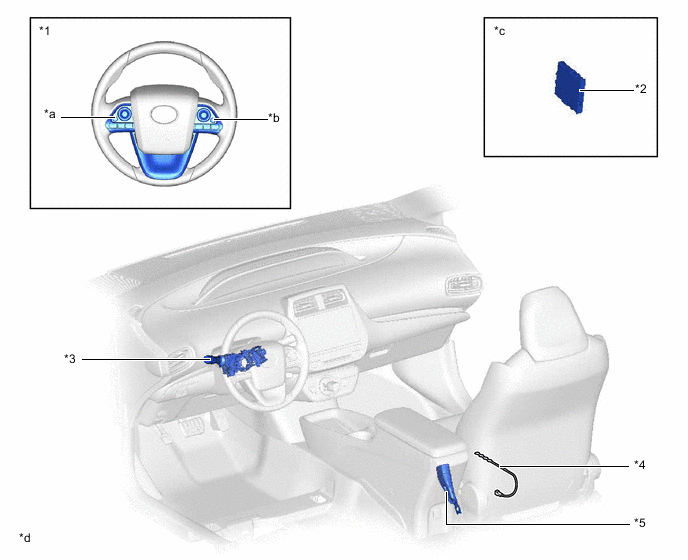

Figure 3. LHD Models
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | OCCUPANT DETECTING SENSOR |
| *5 | FRONT INNER SEAT BELT ASSEMBLY RH | - | - |
| *a | ODO/TRIP Switch | *b |
|
| *c | Refer to Service Bulletin for the installation position of the part. | *d | The illustrations shown are examples only. |

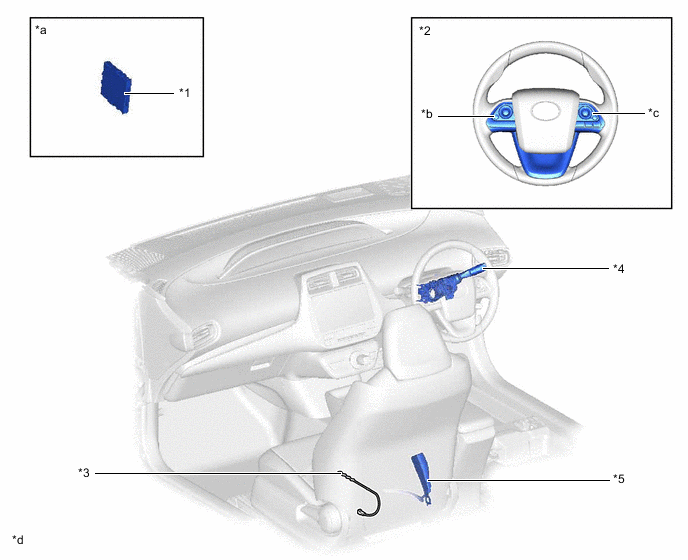

Figure 4. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | OCCUPANT DETECTING SENSOR | *4 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *5 | FRONT INNER SEAT BELT ASSEMBLY LH | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | ODO/TRIP Switch |
| *c |
|
*d | The illustrations shown are examples only. |

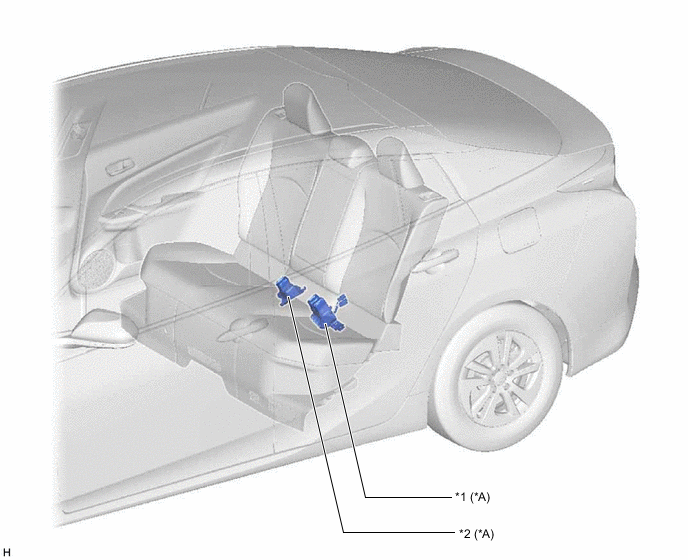

| *A | Models with Rear Seat Belt Warning System | - | - |
| *1 |
|
*2 | REAR SEAT INNER BELT ASSEMBLY RH |
