METER / GAUGE SYSTEM

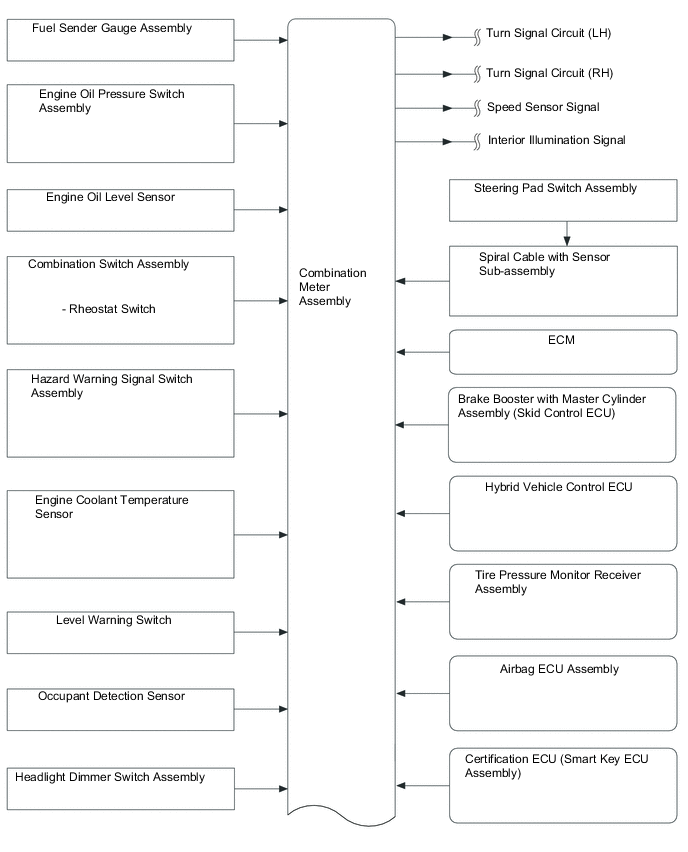

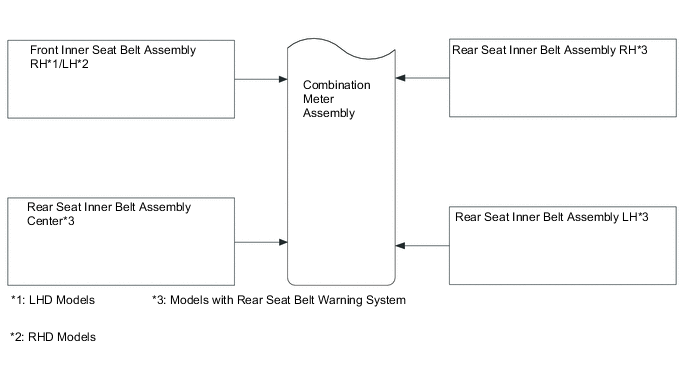

Figure 1. Direct Line Signal

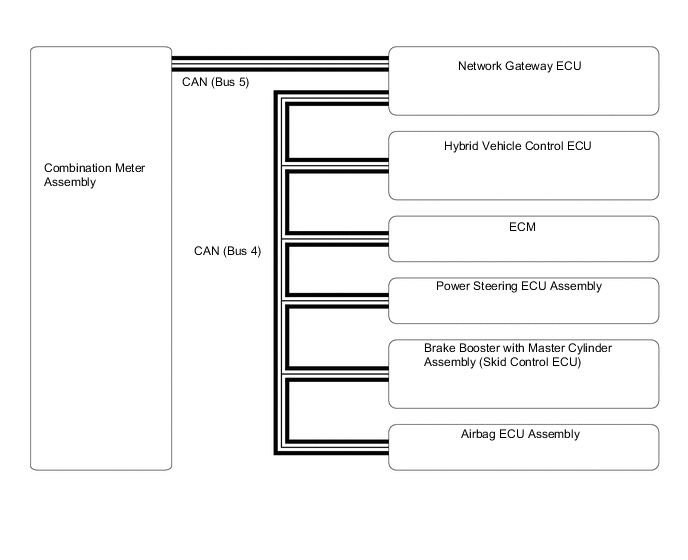

Figure 2. Network Signal (Bus 4, Bus 5)

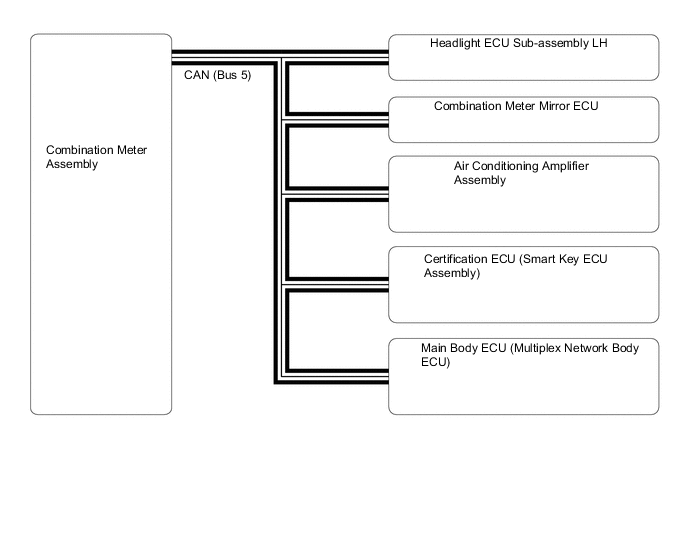

Figure 3. Network Signal (Bus 5)

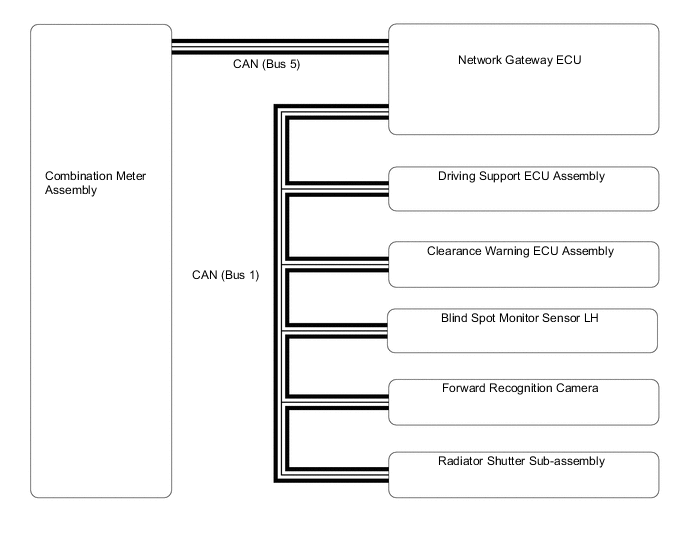

Figure 4. Network Signal (Bus 1, Bus 5)

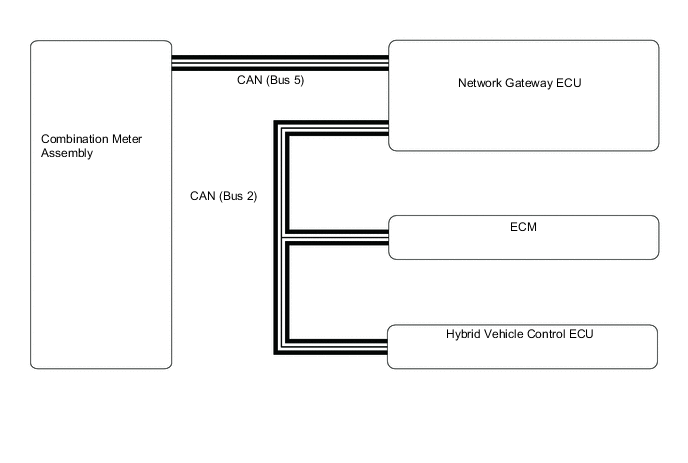

Figure 5. Network Signal (Bus 2, Bus 5)

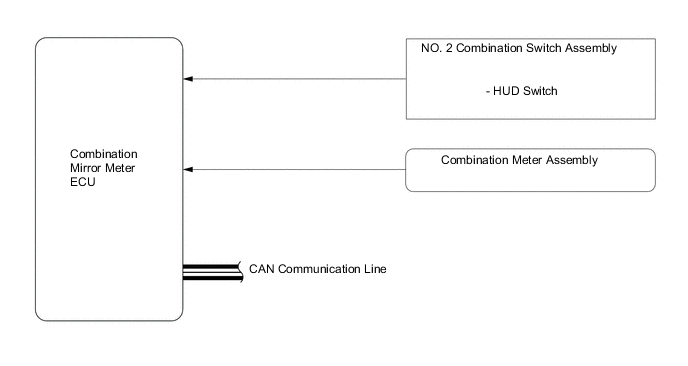

Figure 6. Headup Display
