METER / GAUGE SYSTEM


  1. OUTLINE


    1. A combination meter with a Thin Film Transistor (TFT) type main display and multi-information display is provided.

    2. Light Emitting Diodes (LEDs) are used for the indicator lights and warning lights.

    3. A Hybrid System Indicator is provided. It indicates the output and regeneration conditions of the hybrid system and has an Eco Acceleration Guidance that shows the guide of Eco-friendly accelerator pedal operation.

    4. A warning buzzer is provided in the combination meter to sound when a seat belt is unfastened or when the vehicle is reversing.

    5. The meter ECU (meter circuit plate), mounted in the combination meter, receives signals from ECUs and sensors and shows vehicle information.

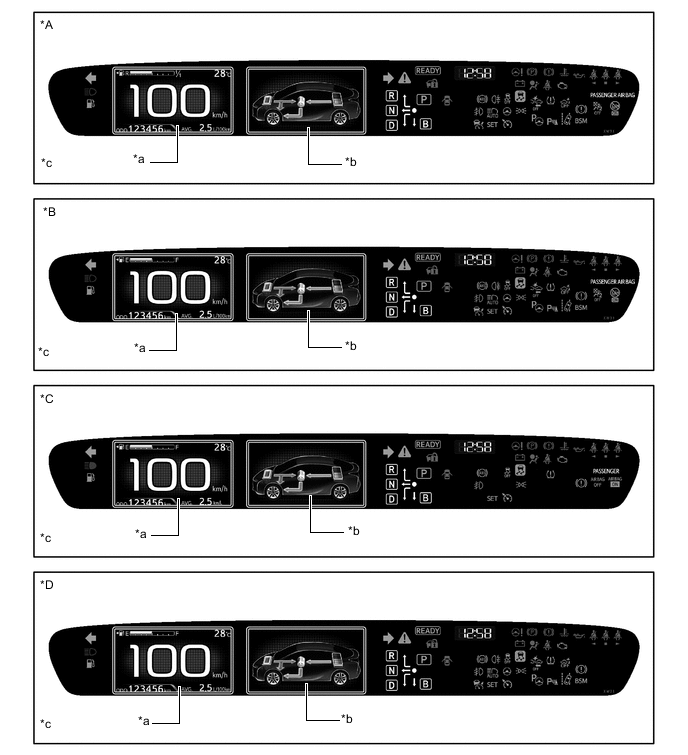

      B0048GWC01
      *A Models for Europe (LHD) *B Models for General Countries
      *C Destination Package for South Korea *D Models for Australia
      *a Main Display *b Multi-information Display
      *c The illustrations shown are examples only. - -

    6. Headup Display


      1. A headup display has been adopted to enable the driver to see driving information more easily within their field of view.

      2. The combination meter mirror ECU and the structure of the windshield glass enables the headup display to project an image as if it is displayed outside of the windshield glass.

        B0048F9C01
        *a Projected Image from the Headup Display *b The illustrations shown are examples only.

  2. MAIN FEATURES


    1. Main Display


      1. The main display shows the following information:

        Item Outline
        Speedometer Displays the current vehicle speed.
        Fuel Gauge Displays the fuel remaining amount.
        Ambient Temperature Displays the ambient temperature.

        • Odo Meter

        • Trip Meter

        • Cruising Range After Hybrid System Start-up

        • Cruising Range

        • Displays the odometer, trip meter A, trip meter B, cruising range after hybrid system start-up or cruising range.

        • Displayed item can be switched by pressing the ODO/TRIP switch.
        Indicator

        • When the display conditions are met, the following indicators illuminate.


          • Eco Mode Indicator

          • Power Mode Indicator

          • EV Driving Mode Indicator
        Light Control Rheostat This item is displayed when the meter panel luminance is adjusted by using the rheostat switch.

        • Road Sign Assist

        • Adjustable Speed Limiter

        • This item is displayed when the settings is switched to the road sign assist or adjustable speed limiter

        • The displayed item can be changed by using the steering pad switch.

        Tech Tips

        The road sign assist or adjustable speed limiter can be turned on or off from the settings tab.

        • Current Fuel Consumption

        • Hybrid System Indicator

        • State Of Charge

        • This item is displayed when the settings is switched to the split mode.

        • The displayed item can be changed by using the steering pad switch.

        Tech Tips

        Split mode can be turned on or off from the settings tab.
        B0048H2C01
        *a Simple Mode *b Split Mode

    2. Multi-information Display


      1. The multi-information display shows the following information.

        Item Outline
        Information

        • The following information can be displayed on the multi-information display by switching between tabs.


          • Drive Information

          • Navigation Information*1

          • Audio Information

          • Air Conditioning System Information

          • Dynamic Radar Cruise Control System/Lane Departure Alert System Inform/Road Sign Assist

          • Message

          • Settings

        • The tab can be switched using the RIGHT/LEFT switch of the steering pad switch assembly.
        Simple Intelligent Parking Assist System*2 This item is displayed when the simple intelligent parking assist system is operating.

        *1: Models with navigation system

        *2: Models with simple intelligent parking assist system

      2. The drive information shows the following information.

        Item Outline
        Drive Information

        • The following items can be displayed.


          • Energy Monitor

          • Hybrid System Indicator/State Of Charge/Eco Score

          • Fuel Consumption Record

          • Drive Monitor

          • Eco Savings

          • Eco Diary

        • The item shown can be changed using the UP/DOWN switch of the steering pad switch assembly.

      3. The eco score display is added to the hybrid system indicator and air conditioning system information display. The eco score displays a score of how the vehicle and air conditioner is being operated, in order to support eco driving.

        B0048D2C01
        *a Hybrid System Indicator Display *b Air Conditioning System Display
        *c Eco Score Display (Driving Conditions Score) *d Eco Score Display (Air Conditioning System Score)

        Tech Tips

        When the power switch is turned off, an eco score result and comment is displayed.

    3. Hybrid System Indicator


      1. The Hybrid System Indicator displays the total of the HV battery and engine output as the hybrid system output.

      2. The eco acceleration guidance is added to the hybrid system indicator. The eco acceleration guidance displays a bar shape to indicate the guide of accelerator pedal operation and deceleration for eco driving.

      3. The scale for the Hybrid System Indicator is divided into 3 areas (Charge, Eco, Power). The role of each area is as follows.

        B0048CYC01
        *a Charge Area *b Hybrid Eco Area
        *c Eco Area *d Power Area
        *e Eco Acceleration Guidance *f The illustrations shown are examples only.
        Information Displayed in Hybrid System Indicator
        Area Function
        Charge The Charge area indicates when energy is being regenerated.
        Eco

        • The Eco area indicates when the vehicle is being driven in an Eco-friendly manner.

        • The Hybrid Eco area indicates that the vehicle is driven in a manner that promotes frequent motor only operation. (Based on various conditions, the hybrid vehicle control ECU assembly controls if the engine should be stopped to enhance fuel efficiency.)
        Power The Power area indicates that the Eco-friendly driving range is being exceeded (during full power driving, etc.).

    4. Headup Display


      1. The headup display shows the following information:

        Figure 1. LHD Models

        B0048G2E01

        The illustrations shown are examples only.

        Figure 2. RHD Models

        B0048ETE01

        The illustrations shown are examples only.

        Area Displayed Item
        a

        • Pre-crash Safety System Display*1

        • Dynamic Radar Cruise Control System Notification Display*2

        • Intelligent Clearance Sonar System Display*3

        • Unsteady driving alert display*4

        • Hands off steering wheel alert display*4

        • Navigation System Display*5

        • Hybrid System Indicator

        • Road Sign Assist*6
        b Speedometer

        *1: Models with pre-crash safety system

        *2: Models with dynamic radar cruise control system

        *3: Models with intelligent clearance sonar system

        *4: Models with lane departure alert system

        *5: Except models for Europe

        *6: Models with road sign assist
