AIRBAG SYSTEM

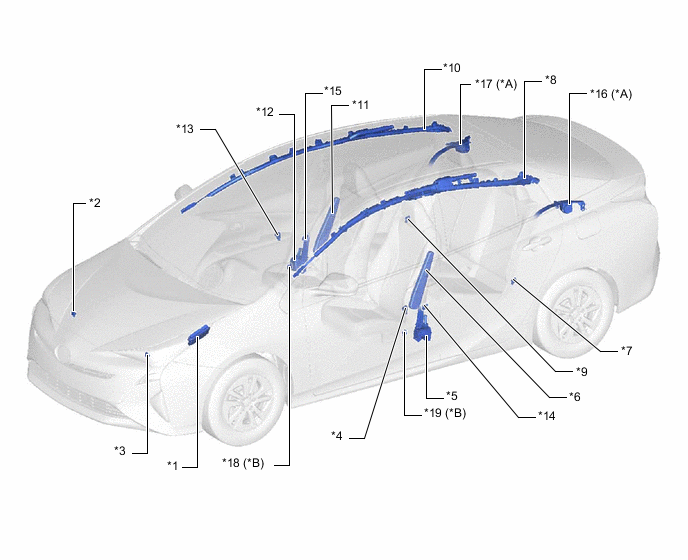

A01VB9DC03
*A Except Models for G.C.C. Countries *B Models for Europe
*1 ECM *2 FRONT AIRBAG SENSOR RH
*3 FRONT AIRBAG SENSOR LH *4 DOOR SIDE AIRBAG SENSOR LH
*5

FRONT SEAT OUTER BELT ASSEMBLY LH


  • FRONT PRETENSIONER SQUIB LH

 *6

FRONT SEAT AIRBAG ASSEMBLY LH


  • FRONT SIDE AIRBAG SQUIB LH
*7 REAR AIRBAG SENSOR LH *8

CURTAIN SHIELD AIRBAG ASSEMBLY LH


  • CURTAIN SHIELD SQUIB LH
*9 REAR AIRBAG SENSOR RH *10

CURTAIN SHIELD AIRBAG ASSEMBLY RH


  • CURTAIN SHIELD SQUIB RH
*11

FRONT SEAT AIRBAG ASSEMBLY RH


  • FRONT SIDE AIRBAG SQUIB RH

 *12

FRONT SEAT OUTER BELT ASSEMBLY RH


  • FRONT PRETENSIONER SQUIB RH
*13 DOOR SIDE AIRBAG SENSOR RH *14 SIDE AIRBAG SENSOR ASSEMBLY LH
*15 SIDE AIRBAG SENSOR ASSEMBLY RH *16

REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH


  • REAR PRETENSIONER SQUIB LH
*17

REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH


  • REAR PRETENSIONER SQUIB RH

 *18 NO. 2 SIDE AIRBAG SENSOR ASSEMBLY RH
*19 NO. 2 SIDE AIRBAG SENSOR ASSEMBLY LH - -

Figure 1. LHD Models

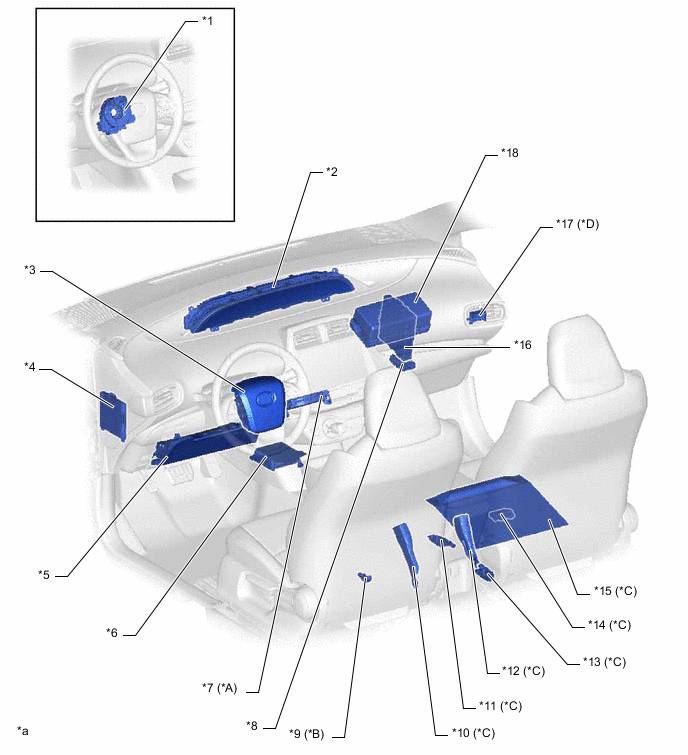

A01VB9EC01
*A Models with Manual (SOS) Switch *B Models for Europe
*C Destination Package for South Korea *D Models with Manual Airbag Cut Off Switch Cylinder
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3

HORN BUTTON ASSEMBLY


  • DRIVER SIDE SQUIB

 *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY


  • DRIVER KNEE AIRBAG SQUIB

 *6 AIRBAG ECU ASSEMBLY
*7 DCM (TELEMATICS TRANSCEIVER) *8 NETWORK GATEWAY ECU
*9 SEAT POSITION AIRBAG SENSOR *10 FRONT SEAT INNER BELT ASSEMBLY LH
*11 FRONT OCCUPANT CLASSIFICATION SENSOR LH *12 FRONT SEAT INNER BELT ASSEMBLY RH
*13 REAR OCCUPANT CLASSIFICATION SENSOR LH *14 OCCUPANT DETECTION ECU
*15

FRONT SEAT CUSHION AIRBAG ASSEMBLY RH


  • FRONT SEAT CUSHION AIRBAG SQUIB

 *16 HYBRID VEHICLE CONTROL ECU
*17 AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY *18

INSTRUMENT PANEL PASSENGER AIRBAG WITHOUT DOOR ASSEMBLY


  • FRONT PASSENGER SIDE SQUIB
*a The illustrations shown are examples only. - -

Figure 2. RHD Models

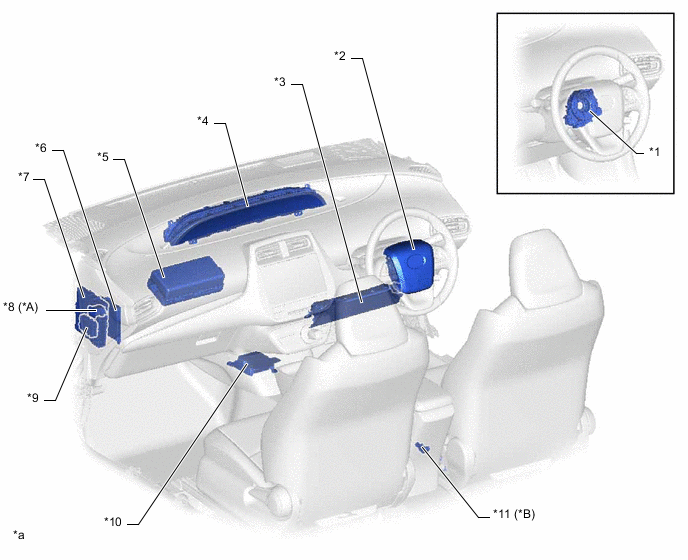

A01VB6OC01
*A Models with Manual Airbag Cut Off Switch Cylinder *B Models for Europe
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2

HORN BUTTON ASSEMBLY


  • DRIVER SIDE SQUIB
*3

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY


  • DRIVER KNEE AIRBAG SQUIB

 *4 COMBINATION METER ASSEMBLY
*5

INSTRUMENT PANEL PASSENGER AIRBAG WITHOUT DOOR ASSEMBLY


  • FRONT PASSENGER SIDE SQUIB

 *6 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*7 HYBRID VEHICLE CONTROL ECU *8 AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY
*9 NETWORK GATEWAY ECU *10 AIRBAG ECU ASSEMBLY
*11 SEAT POSITION AIRBAG SENSOR - -
*a The illustrations shown are examples only. - -
