AIRBAG SYSTEM

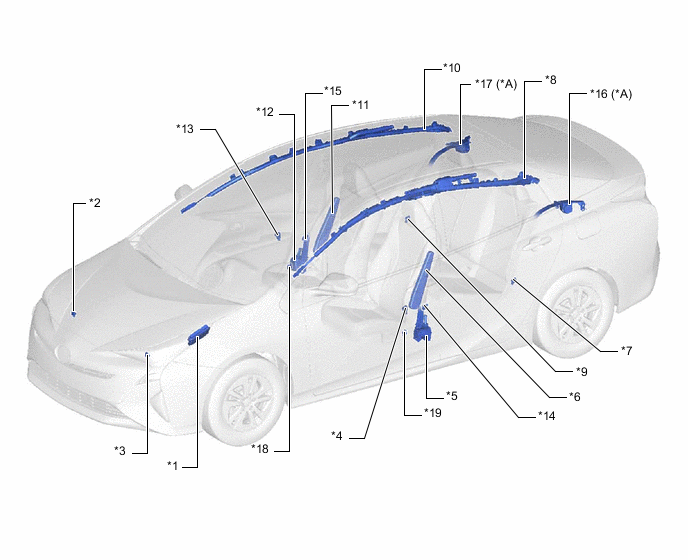

A01VB9DC01
*A Except Models for G.C.C. Countries - -
*1 ECM *2 FRONT AIRBAG SENSOR RH
*3 FRONT AIRBAG SENSOR LH *4 DOOR SIDE AIRBAG SENSOR LH
*5

FRONT SEAT OUTER BELT ASSEMBLY LH


  • FRONT PRETENSIONER SQUIB LH

 *6

FRONT SEAT AIRBAG ASSEMBLY LH


  • FRONT SIDE AIRBAG SQUIB LH
*7 REAR AIRBAG SENSOR LH *8

CURTAIN SHIELD AIRBAG ASSEMBLY LH


  • CURTAIN SHIELD SQUIB LH
*9 REAR AIRBAG SENSOR RH *10

CURTAIN SHIELD AIRBAG ASSEMBLY RH


  • CURTAIN SHIELD SQUIB RH
*11

FRONT SEAT AIRBAG ASSEMBLY RH


  • FRONT SIDE AIRBAG SQUIB RH

 *12

FRONT SEAT OUTER BELT ASSEMBLY RH


  • FRONT PRETENSIONER SQUIB RH
*13 DOOR SIDE AIRBAG SENSOR RH *14 SIDE AIRBAG SENSOR ASSEMBLY LH
*15 SIDE AIRBAG SENSOR ASSEMBLY RH *16

REAR SEAT OUTER BELT ASSEMBLY LH


  • REAR PRETENSIONER SQUIB RH
*17

REAR SEAT OUTER BELT ASSEMBLY RH


  • REAR PRETENSIONER SQUIB RH

 *18 NO. 2 SIDE AIRBAG SENSOR ASSEMBLY RH
*19 NO. 2 SIDE AIRBAG SENSOR ASSEMBLY LH - -

Figure 1. LHD Models

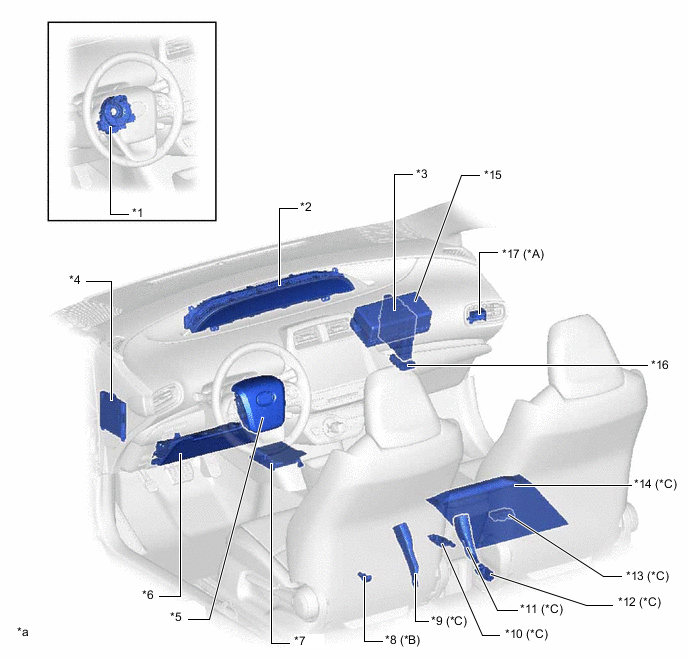

A01RGR7C01
*A Models with Manual Airbag Cut Off Switch Cylinder *B Models for Europe
*C Destination Package for South Korea - -
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 HYBRID VEHICLE CONTROL ECU *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5

HORN BUTTON ASSEMBLY


  • DRIVER SIDE SQUIB

 *6

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY


  • DRIVER KNEE AIRBAG SQUIB
*7 AIRBAG ECU ASSEMBLY *8 SEAT POSITION AIRBAG SENSOR
*9 FRONT SEAT INNER BELT ASSEMBLY LH *10 OCCUPANT CLASSIFICATION SENSOR (FRONT LH)
*11 FRONT SEAT INNER BELT ASSEMBLY RH *12 OCCUPANT CLASSIFICATION SENSOR (REAR LH)
*13 OCCUPANT DETECTION ECU *14

FRONT SEAT CUSHION AIRBAG ASSEMBLY RH


  • FRONT SEAT CUSHION AIRBAG SQUIB
*15

INSTRUMENT PANEL PASSENGER AIRBAG WITHOUT DOOR ASSEMBLY


  • FRONT PASSENGER SIDE SQUIB

 *16 NETWORK GATEWAY ECU
*17 AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY - -
*a The illustrations shown are examples only. - -

Figure 2. RHD Models

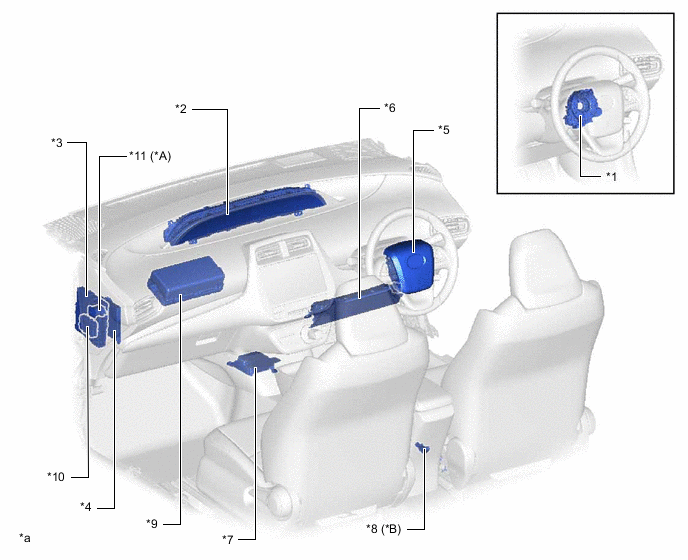

A01RGIYC01
*A Models with Manual Airbag Cut Off Switch Cylinder *B Models for Europe
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 HYBRID VEHICLE CONTROL ECU *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5

HORN BUTTON ASSEMBLY


  • DRIVER SIDE SQUIB

 *6

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY


  • DRIVER KNEE AIRBAG SQUIB
*7 AIRBAG ECU ASSEMBLY *8 SEAT POSITION AIRBAG SENSOR
*9

INSTRUMENT PANEL PASSENGER AIRBAG WITHOUT DOOR ASSEMBLY


  • FRONT PASSENGER SIDE SQUIB

 *10 NETWORK GATEWAY ECU
*11 AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY - -
*a The illustrations shown are examples only. - -
