TOYOTA PARKING ASSIST-SENSOR SYSTEM

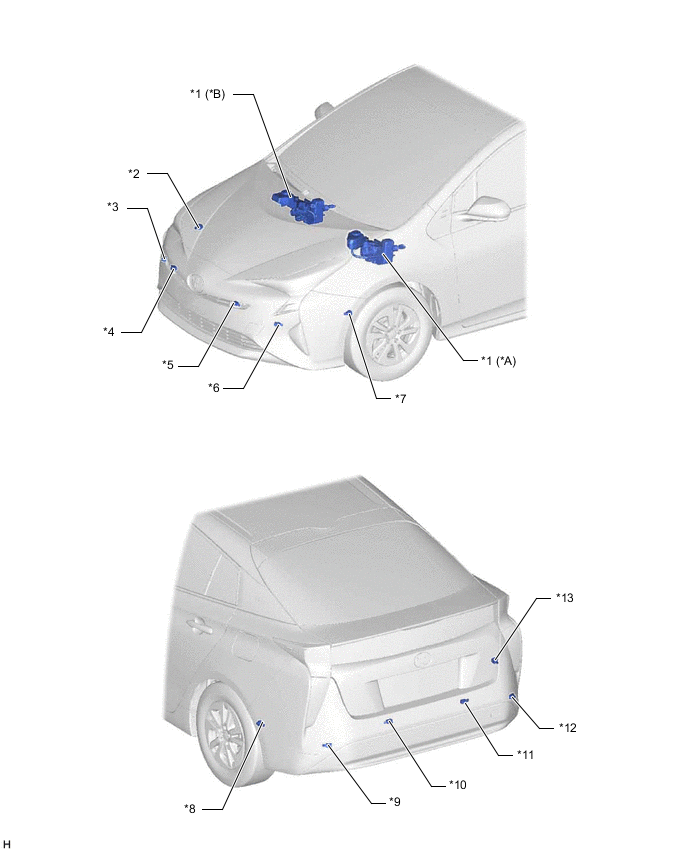

| *A | LHD Models | *B | RHD Models |
| *1 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
|
*2 | FRONT SIDE ULTRASONIC SENSOR (FRS) |
| *3 | FRONT CORNER ULTRASONIC SENSOR (FR) | *4 | FRONT CENTER ULTRASONIC SENSOR (FRC) |
| *5 | FRONT CENTER ULTRASONIC SENSOR (FLC) | *6 | FRONT CORNER ULTRASONIC SENSOR (FL) |
| *7 | FRONT SIDE ULTRASONIC SENSOR (FLS) | *8 | REAR SIDE ULTRASONIC SENSOR (RLS) |
| *9 | REAR CORNER ULTRASONIC SENSOR (RL) | *10 | REAR CENTER ULTRASONIC SENSOR (RLC) |
| *11 | REAR CENTER ULTRASONIC SENSOR (RRC) | *12 | REAR CORNER ULTRASONIC SENSOR (RR) |
| *13 | REAR SIDE ULTRASONIC SENSOR (RRS) | - | - |

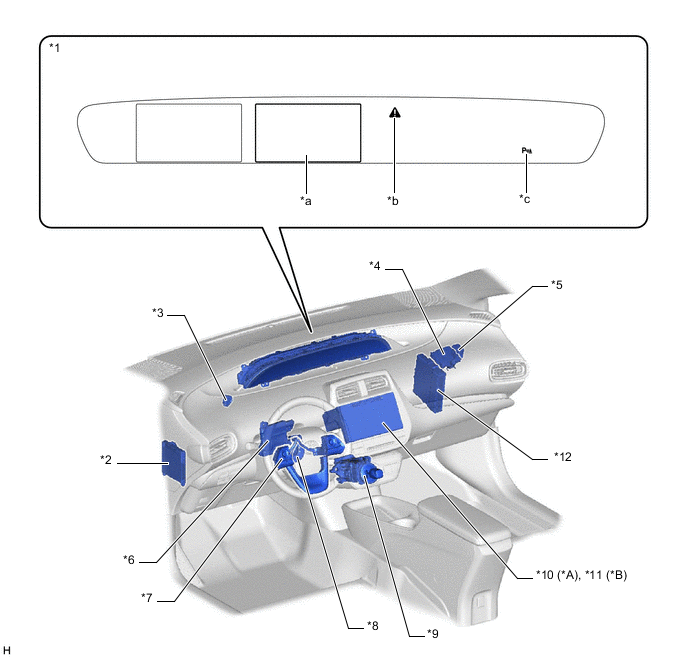

Figure 1. LHD Models
| *A | Models with Multimedia System | *B | Models with Navigation System |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | NO. 1 CLEARANCE WARNING BUZZER (FRONT) | *4 | CLEARANCE WARNING ECU ASSEMBLY |
| *5 | NO. 2 CLEARANCE WARNING BUZZER (REAR) | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | STEERING PAD SWITCH ASSEMBLY | *8 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
| *9 | SHIFT LOCK CONTROL UNIT ASSEMBLY
|
*10 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *11 | NAVIGATION RECEIVER ASSEMBLY | *12 | HYBRID VEHICLE CONTROL ECU |
| *a | Multi-information Display | *b | Master Warning Light |
| *c | TOYOTA Parking Assist-sensor System Indicator Light | - | - |

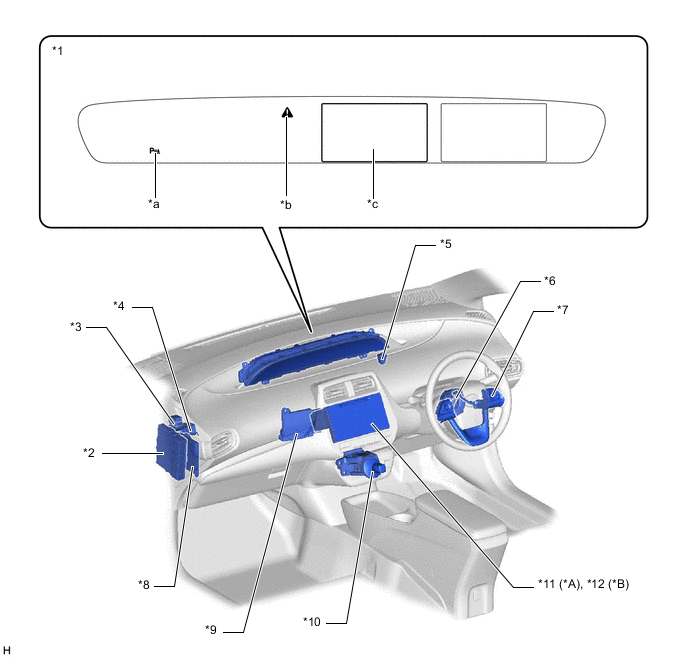

Figure 2. RHD Models
| *A | Models with Multimedia System | *B | Models with Navigation System |
| *1 | COMBINATION METER ASSEMBLY | *2 | HYBRID VEHICLE CONTROL ECU |
| *3 | NO. 2 CLEARANCE WARNING BUZZER (REAR) | *4 | CLEARANCE WARNING ECU ASSEMBLY |
| *5 | NO. 1 CLEARANCE WARNING BUZZER (FRONT) | *6 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
| *7 | STEERING PAD SWITCH ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *10 | SHIFT LOCK CONTROL UNIT ASSEMBLY
|
| *11 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *12 | NAVIGATION RECEIVER ASSEMBLY |
| *a | TOYOTA Parking Assist-sensor System Indicator Light | *b | Master Warning Light |
| *c | Multi-information Display | - | - |
