BRAKE CONTROL SYSTEM


  1. CONSTRUCTION

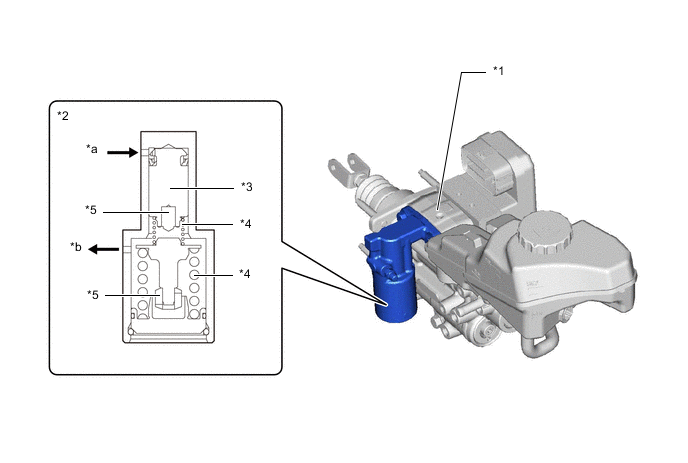

    1. The stroke simulator optimally controls the piston in the stroke simulator in accordance with the brake fluid pressure generated by the depression of the brake pedal in order to generate a natural brake pedal feel.

      A01RGEOC01
      *1 Brake Booster with Master Cylinder Assembly *2 Stroke Simulator
      *3 Piston *4 Coil Spring
      *5 Rubber - -
      *a From Master Cylinder *b To Brake Master Cylinder Reservoir Assembly
