BRAKE CONTROL SYSTEM


  1. CONSTRUCTION


    1. The stop light switch assembly consists of 2 non-contact durable magnet sensors.

    2. The magnet sensor outputs a signal when the magnet mounted to the shaft of the stop light switch assembly moves to the on position.

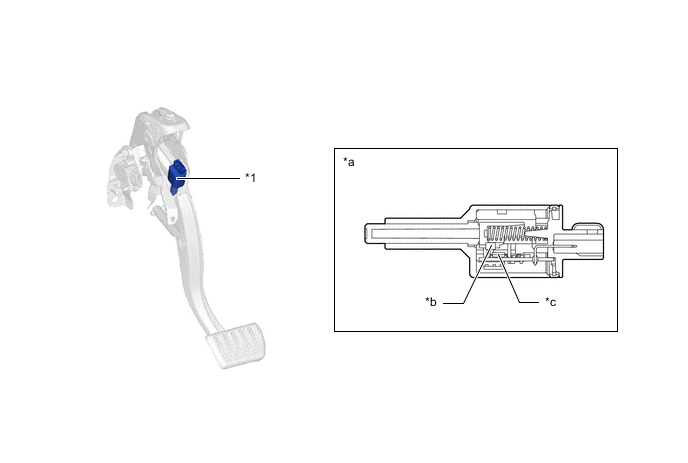

      A01RGMEC01
      *1 Stop Light Switch Assembly - -
      *a Cross Section *b Magnet
      *c Magnet Sensor - -
