BRAKE CONTROL SYSTEM


  1. SYSTEM CONTROL


    1. Steering cooperative control integrates control of the brake system and power steering system in order to achieve excellent vehicle stability and smooth control.

    2. When accelerating or braking on a split friction road, or when the vehicle is understeering or oversteering, steering cooperative control operates each system according to the situation and controls the steering assist torque to urge the driver to perform corrective steering.

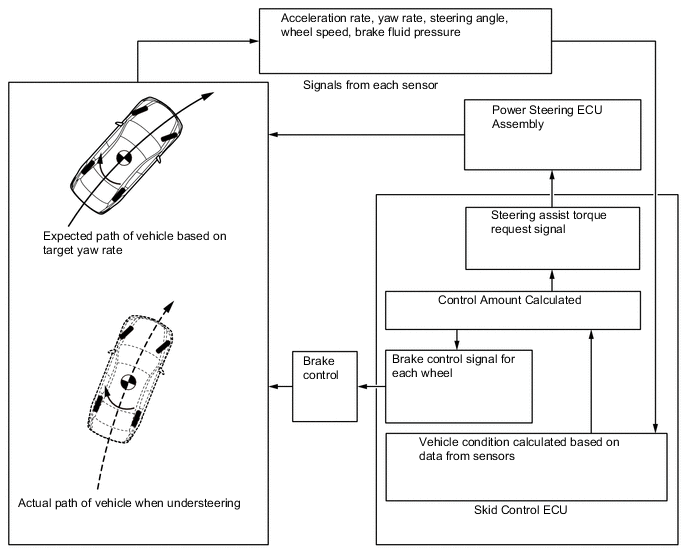

      Figure 1. General overview of steering cooperative control

      A01RGNBE01

    3. Acceleration control on a split friction road


      1. When accelerating on a split friction road surface, such as when the left wheels are on asphalt and the right wheels are on snow, the vehicle tends to steer to the side with less friction. In addition to conventional TRC system control, steering cooperative control controls the steering assist torque to urge the driver to perform corrective steering to counter the yaw moment generated by the difference in drive force of the left and right wheels.

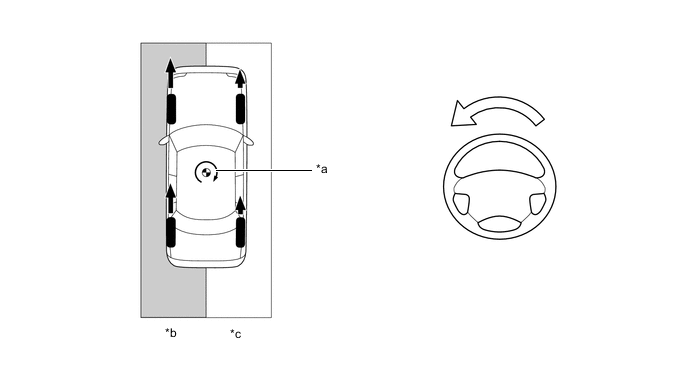

        Figure 2. Acceleration control on a split friction road

        A01RGBTC01
        *a Yaw moment due to difference in drive force of left and right wheels *b High Friction Surface
        *c Low Friction Surface - -
        B0048G8 Drive Force B0048FA Steering assist torque required to cancel yaw moment due to difference in drive force of left and right wheels

    4. Brake control on a split friction road


      1. When braking on a split friction road surface, such as when the left wheels are on asphalt and the right wheels are on snow, the vehicle tends to steer to the side with more friction. In addition to conventional ABS system control, steering cooperative control controls the steering assist torque to urge the driver to perform corrective steering to counter the yaw moment generated by the difference in brake force of the left and right wheels.

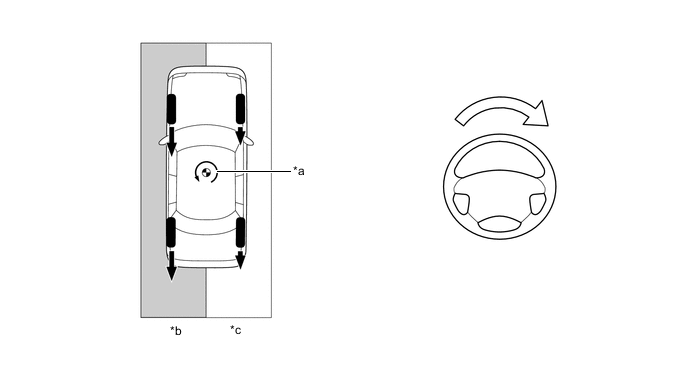

        Figure 3. Brake control on a split friction road

        A01RGP5C01
        *a Yaw moment due to difference in brake force of left and right wheels *b High Friction Surface
        *c Low Friction Surface - -
        B0048G8 Brake Force B0048FA Steering assist torque required to cancel yaw moment due to difference in brake force of left and right wheels

    5. Control when vehicle is oversteering


      1. To determine if the vehicle is oversteering, the vehicle compares the slip angle with the target yaw rate, based on the steering angle and vehicle speed, with the actual yaw rate. If it is determined that the vehicle is oversteering, the vehicle primarily controls the brake force of the outer wheels to generate a moment toward the outside of the turn in order to minimize the oversteer. In addition, steering cooperative control controls the steering assist torque to urge the driver to perform corrective steering.

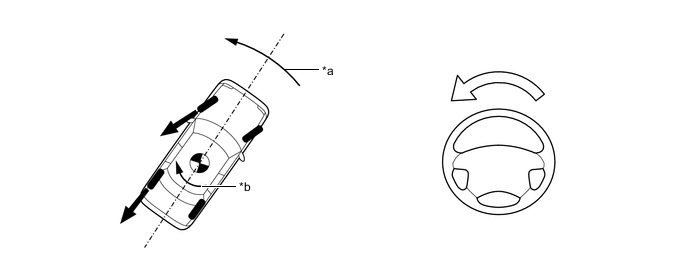

        Figure 4. Control when vehicle is oversteering

        A01RGQ8C01
        *a Control moment when vehicle is oversteering *b Yaw
        B0048G8 Brake Force B0048FA Steering assist torque applied to this direction to control understeering of the vehicle

    6. Control when vehicle is understeering


      1. To determine if the vehicle is understeering, the vehicle compares the target yaw rate, based on the steering angle and vehicle speed, with the actual yaw rate. If it is determined that the vehicle is understeering, the vehicle limits the drive force and controls the brake force of each wheel in order to generate a moment that aligns the vehicle with its intended path in order to minimize the understeer. In addition, steering cooperative control controls the steering assist torque to urge the driver not to excessively turn the steering wheel.

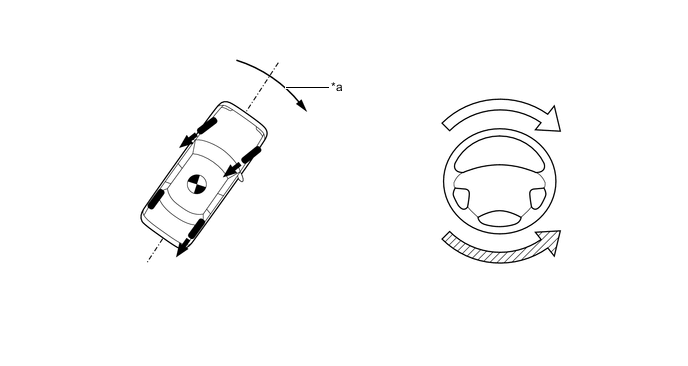

        Figure 5. Control when vehicle is oversteering

        A01RGKVC01
        *a Control moment when vehicle is understeering - -
        B0048G8 Control by VSC B0048FA When understeering, direction in which steering assist torque makes it easy to turn the steering wheel to aid vehicle stability
        A01RGOZ When understeering, opposing force which makes it difficult to further turn the steering wheel when detrimental to vehicle stability - -
