BRAKE CONTROL SYSTEM

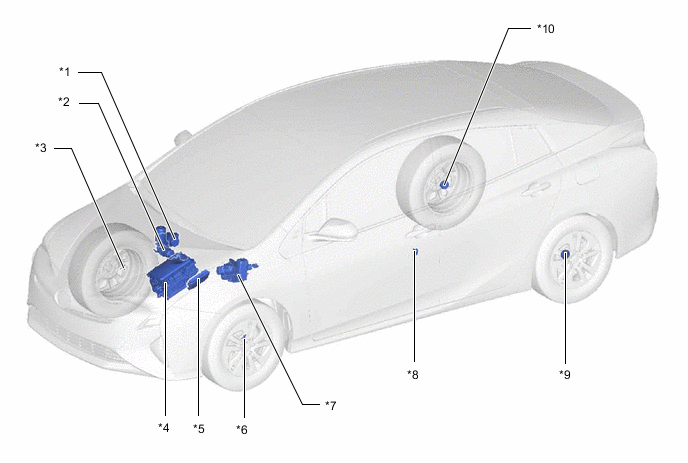

Figure 1. LHD Models
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE BOOSTER PUMP ASSEMBLY |
| *3 | FRONT SPEED SENSOR RH | *4 | INVERTER WITH CONVERTER ASSEMBLY
|
| *5 | ECM | *6 | FRONT SPEED SENSOR LH |
| *7 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
|
*8 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *9 | REAR SPEED SENSOR LH | *10 | REAR SPEED SENSOR RH |

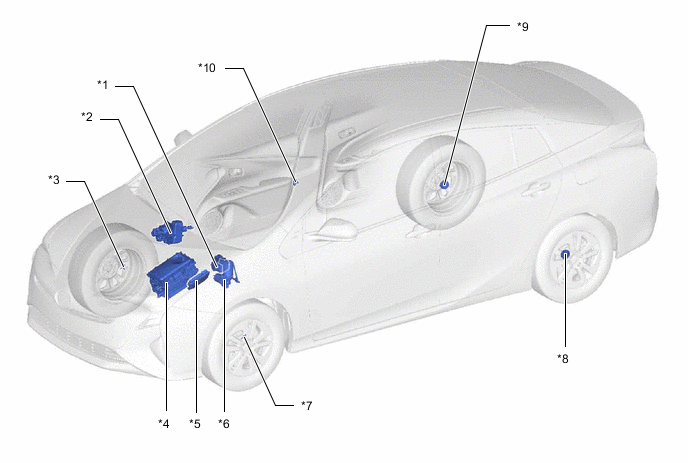

Figure 2. RHD Models
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
|
| *3 | FRONT SPEED SENSOR RH | *4 | INVERTER WITH CONVERTER ASSEMBLY
|
| *5 | ECM | *6 | BRAKE BOOSTER PUMP ASSEMBLY |
| *7 | FRONT SPEED SENSOR LH | *8 | REAR SPEED SENSOR LH |
| *9 | REAR SPEED SENSOR RH | *10 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |

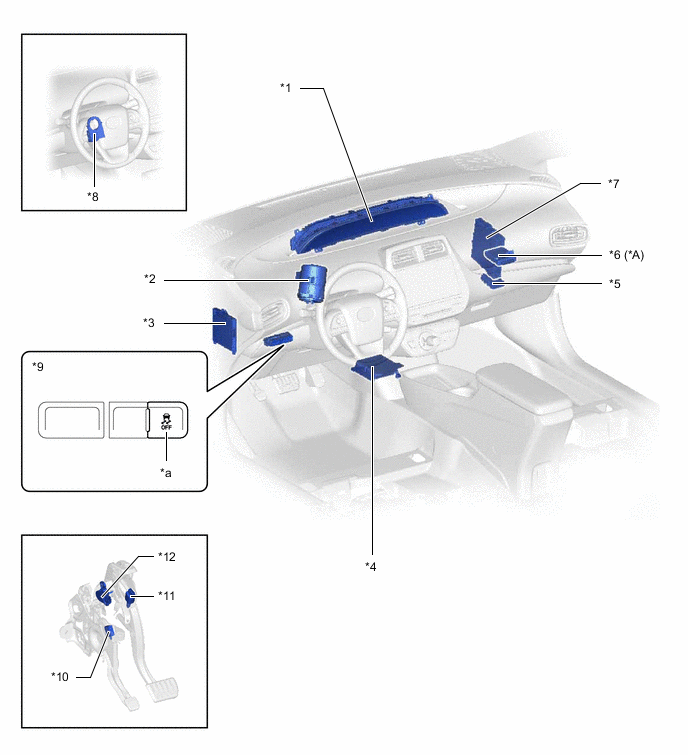

Figure 3. LHD Models
| *A | Models with Pre-crash Safety System | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | AIRBAG ECU ASSEMBLY |
| *5 | NETWORK GATEWAY ECU | *6 | DRIVING SUPPORT ECU ASSEMBLY |
| *7 | HYBRID VEHICLE CONTROL ECU | *8 | STEERING SENSOR |
| *9 | COMBINATION SWITCH ASSEMBLY | *10 | PARKING BRAKE SWITCH ASSEMBLY |
| *11 | STOP LIGHT SWITCH ASSEMBLY | *12 | BRAKE PEDAL STROKE SENSOR ASSEMBLY |
| *a | VSC OFF SWITCH | - | - |

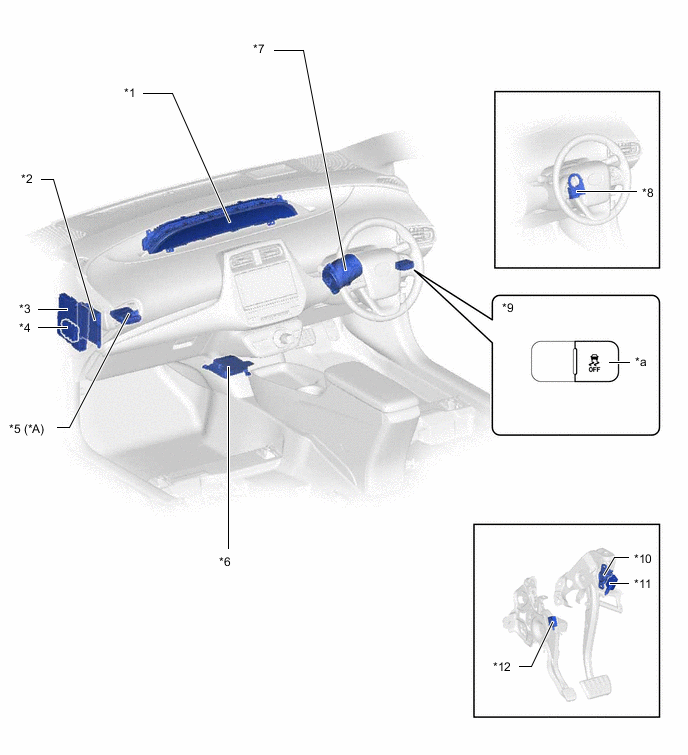

Figure 4. RHD Models
| *A | Models with Pre-crash Safety System | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | NETWORK GATEWAY ECU |
| *5 | DRIVING SUPPORT ECU ASSEMBLY | *6 | AIRBAG ECU ASSEMBLY |
| *7 | POWER STEERING ECU ASSEMBLY | *8 | STEERING SENSOR |
| *9 | COMBINATION SWITCH ASSEMBLY | *10 | BRAKE PEDAL STROKE SENSOR ASSEMBLY |
| *11 | STOP LIGHT SWITCH ASSEMBLY | *12 | PARKING BRAKE SWITCH ASSEMBLY |
| *a | VSC OFF SWITCH | - | - |
