BRAKE CONTROL SYSTEM


  1. SYSTEM CONTROL


    1. Front/Rear Brake Force Distribution


      1. This function controls the brake force of the rear wheels in accordance with the vehicle conditions, such as load or deceleration, in order to ensure excellent braking performance.

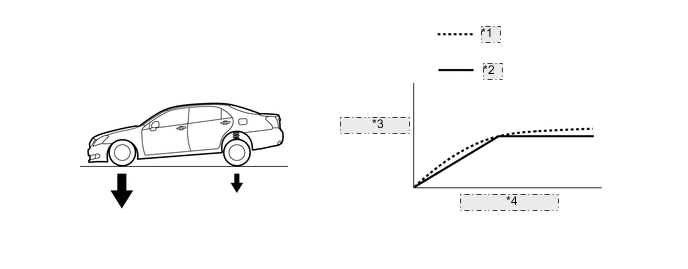

        Figure 1. Front/Rear Brake Force Distribution Control (Light Load)

        A01RGUYE05
        *1 Ideal Brake Force Distribution
        *2 EBD Control
        *3 Rear Brake Force
        *4 Front Brake Force

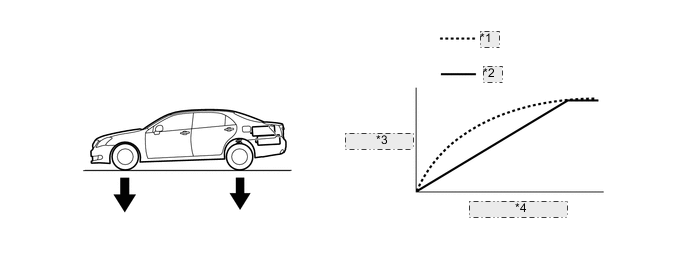

        Figure 2. Front/Rear Brake Force Distribution Control (Heavy Load)

        A01RGKUE11
        *1 Ideal Brake Force Distribution
        *2 EBD Control
        *3 Rear Brake Force
        *4 Front Brake Force

    2. Left/Right Brake Force Distribution Control


      1. This function optimally controls the brake force of the left and right wheels in order to maintain vehicle stability when braking during cornering. This ensures vehicle stability and excellent braking performance when braking during cornering.

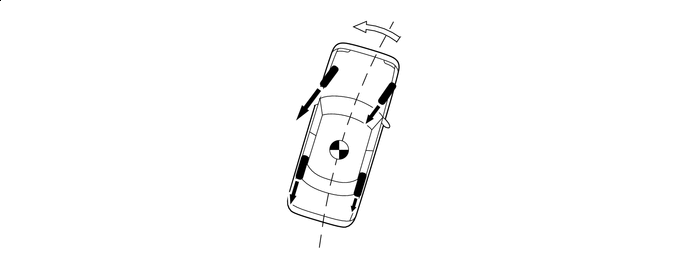

        Figure 3. Left/Right Brake Force Distribution Control

        A01RGYSC09
        B0048FA Control Moment B0048G8 Brake Force
