EMISSION CONTROL SYSTEM(w/o Canister Pump Module)


  1. CONSTRUCTION


    1. A step motor type EGR valve assembly is used to precisely control the EGR gas flow amount.

    2. The EGR cooler assembly cools the exhaust gas to improve the EGR efficiency.

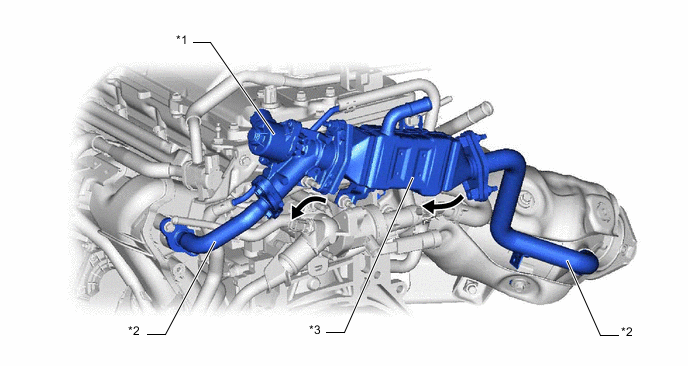

      Figure 1. Models with Dual-passage Cooling System

      A01RGMJC01
      *1 EGR Valve Assembly *2 EGR Pipe
      *3 EGR Cooler Assembly - -
      B0048G8 EGR Gas - -

      Figure 2. Models without Dual-passage Cooling System

      A01RGN9C01
      *1 EGR Valve Assembly *2 EGR Pipe
      *3 EGR Cooler Assembly - -
      B0048G8 EGR Gas - -
