CRUISE CONTROL SYSTEM

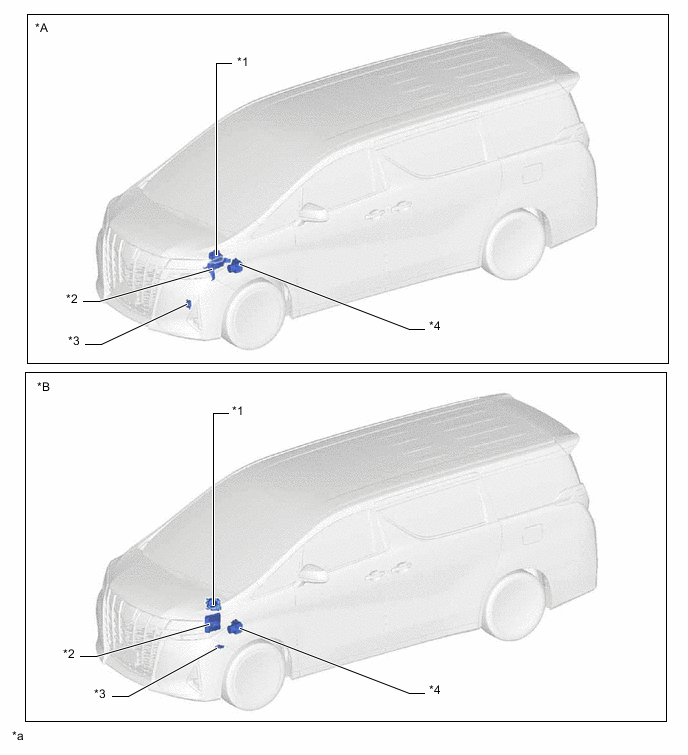

B006K9DC01
*A Models with 2AR-FE Engine *B Models with 2GR-FKS Engine
*1

THROTTLE BODY WITH MOTOR ASSEMBLY


  • THROTTLE POSITION SENSOR

  • THROTTLE CONTROL MOTOR

 *2 ECM
*3 PARK/NEUTRAL POSITION SWITCH ASSEMBLY *4

BRAKE ACTUATOR ASSEMBLY


  • SKID CONTROL ECU
*a The illustrations shown are examples only. - -

Figure 1. LHD Models

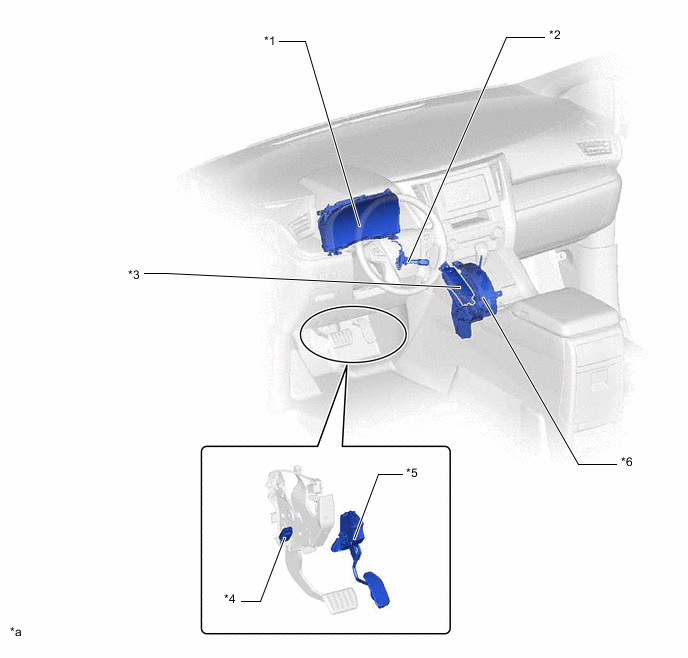

B006KCOC01
*1

COMBINATION METER ASSEMBLY


  • CRUISE CONTROL INDICATOR

  • CRUISE SET INDICATOR

  • MULTI-INFORMATION DISPLAY

  • MASTER WARNING LIGHT

 *2

CRUISE CONTROL SWITCH


  • ON-OFF BUTTON

  • +RES SWITCH

  • -SET SWITCH

  • CANCEL SWITCH
*3

COMBINATION SWITCH ASSEMBLY


  • VSC OFF SWITCH

 *4 STOP LIGHT SWITCH ASSEMBLY
*5 ACCELERATOR PEDAL SENSOR ASSEMBLY *6

SHIFT LOCK CONTROL UNIT ASSEMBLY


  • TRANSMISSION CONTROL SWITCH
*a The illustrations shown are examples only. - -

Figure 2. RHD Models

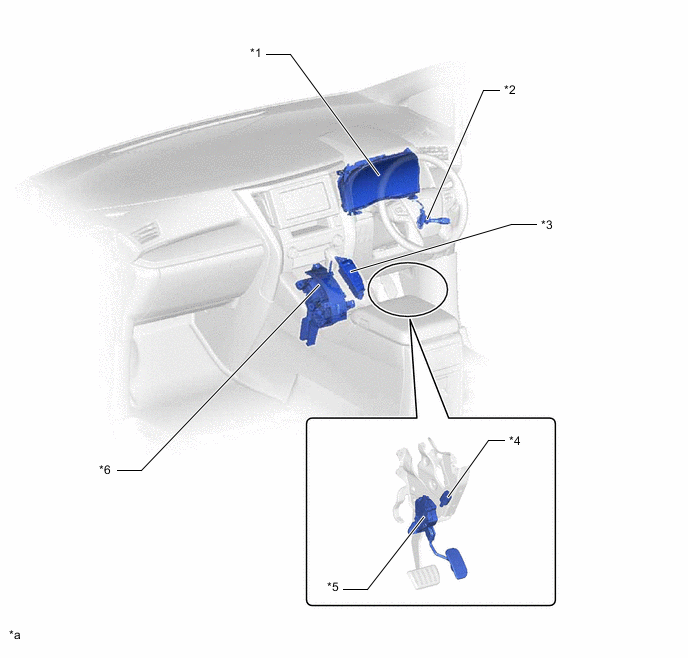

B006K5RC01
*1

COMBINATION METER ASSEMBLY


  • CRUISE CONTROL INDICATOR

  • CRUISE SET INDICATOR

  • MULTI-INFORMATION DISPLAY

  • MASTER WARNING LIGHT

 *2

CRUISE CONTROL SWITCH


  • ON-OFF BUTTON

  • +RES SWITCH

  • -SET SWITCH

  • CANCEL SWITCH
*3

COMBINATION SWITCH ASSEMBLY


  • VCS OFF SWITCH

 *4 STOP LIGHT SWITCH ASSEMBLY
*5 ACCELERATOR PEDAL SENSOR ASSEMBLY *6

SHIFT LOCK CONTROL UNIT ASSEMBLY


  • TRANSMISSION CONTROL SWITCH
*a The illustrations shown are examples only. - -
