CRUISE CONTROL SYSTEM

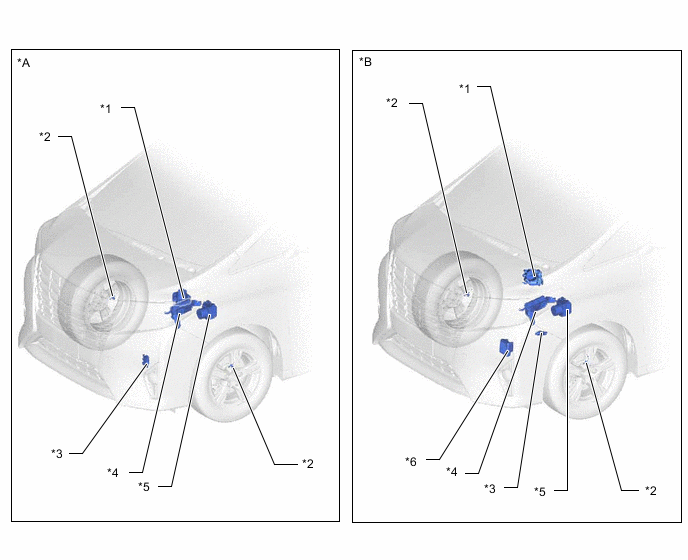

| *A | Models with 2AR-FE Engine | *B | Models with 2GR-FE Engine |
| *1 | THROTTLE BODY WITH MOTOR ASSEMBLY
|
*2 | SPEED SENSOR |
| *3 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *4 | ECM |
| *5 | BRAKE ACTUATOR ASSEMBLY
|
*6 | TCM |

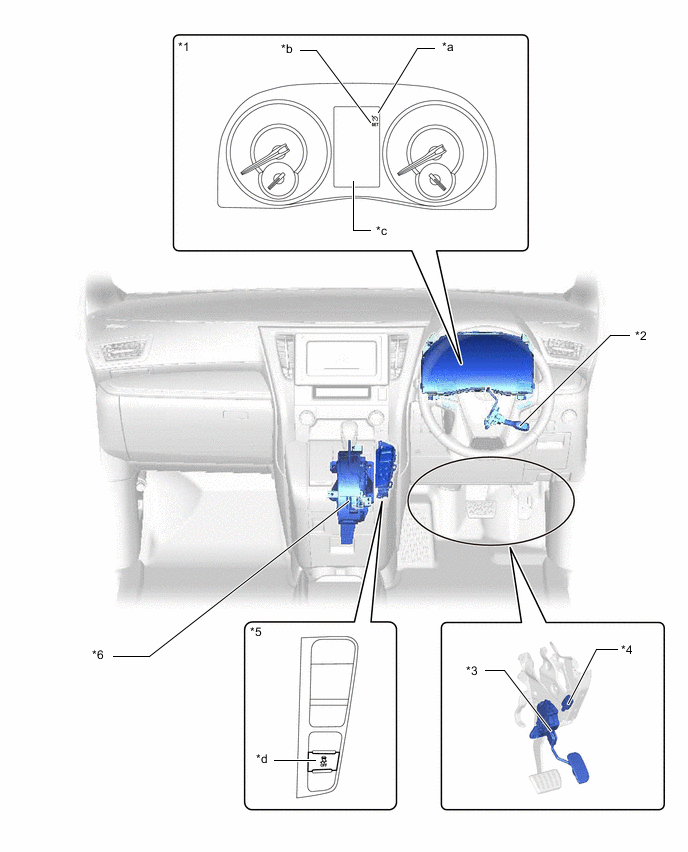

Figure 1. LHD Models
| *1 | COMBINATION METER ASSEMBLY | *2 | CRUISE CONTROL SWITCH
|
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | INTEGRATION CONTROL AND PANEL ASSEMBLY | *6 | SHIFT LOCK CONTROL UNIT ASSEMBLY
|
| *a | Cruise Control Indicator | *b | Cruise Control SET Indicator |
| *c | Multi-information Display | *d | VSC OFF Switch |
Figure 2. RHD Models
| *1 | COMBINATION METER ASSEMBLY | *2 | CRUISE CONTROL SWITCH
|
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | INTEGRATION CONTROL AND PANEL ASSEMBLY | *6 | SHIFT LOCK CONTROL UNIT ASSEMBLY
|
| *a | Cruise Control Indicator | *b | Cruise Control SET Indicator |
| *c | Multi-information Display | *d | VCS OFF Switch |
