INTAKE SYSTEM


  1. CONSTRUCTION


    1. A linkless type throttle body with motor assembly in which the throttle position sensor and the throttle actuator are integrated is used. It realizes excellent throttle valve control.

    2. The throttle actuator uses a DC motor with excellent response and minimal power consumption. The ECM performs duty ratio control of the direction and the amperage of the current that flows to the throttle actuator in order to regulate the throttle valve angle.

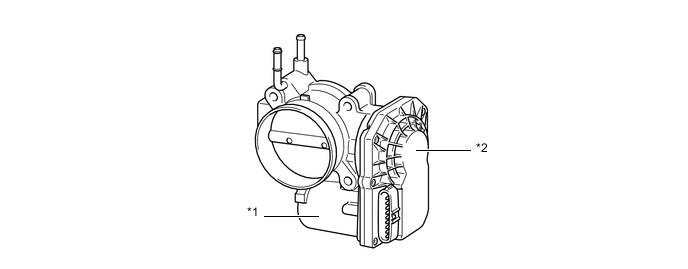

      A01IE0XC03
      *1 Throttle Control Motor *2 Throttle Position Sensor
