SFI SYSTEM

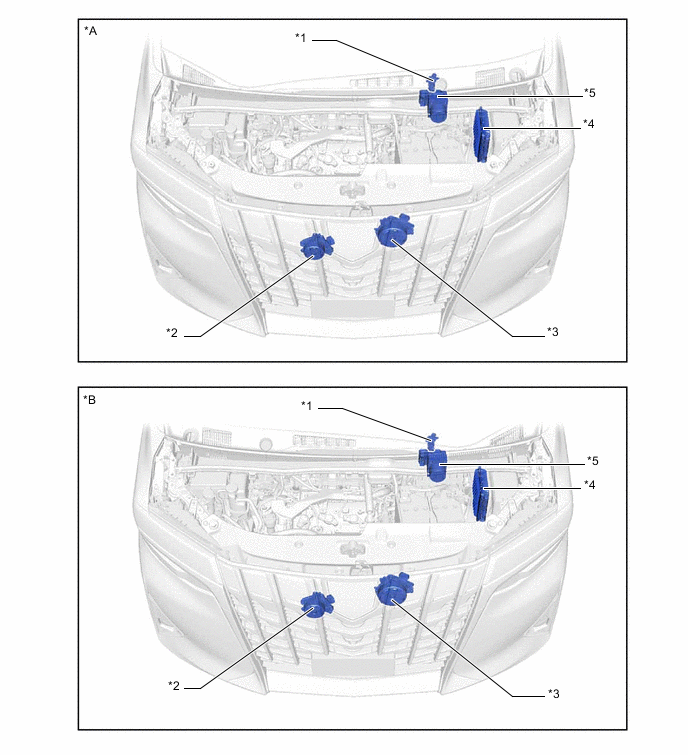

| *A | LHD Models | *B | RHD Models |
| *1 | MASS AIR FLOW METER SUB-ASSEMBLY
|
*2 | COOLING FAN MOTOR RH |
| *3 | COOLING FAN MOTOR LH | *4 | ECM |
| *5 | BRAKE ACTUATOR ASSEMBLY
|
- | - |

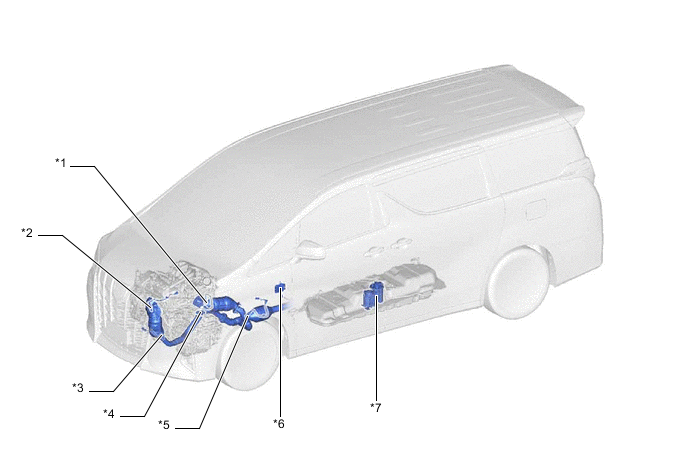

| *1 | AIR FUEL RATIO SENSOR (Bank 1, Sensor 1) | *2 | AIR FUEL RATIO SENSOR (Bank 2, Sensor 1) |
| *3 | HEATED OXYGEN SENSOR (Bank 2, Sensor 2) | *4 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *5 | HEATED OXYGEN SENSOR (Bank 1, Sensor 2) | *6 | FUEL PUMP CONTROL ECU |
| *7 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
|
- | - |

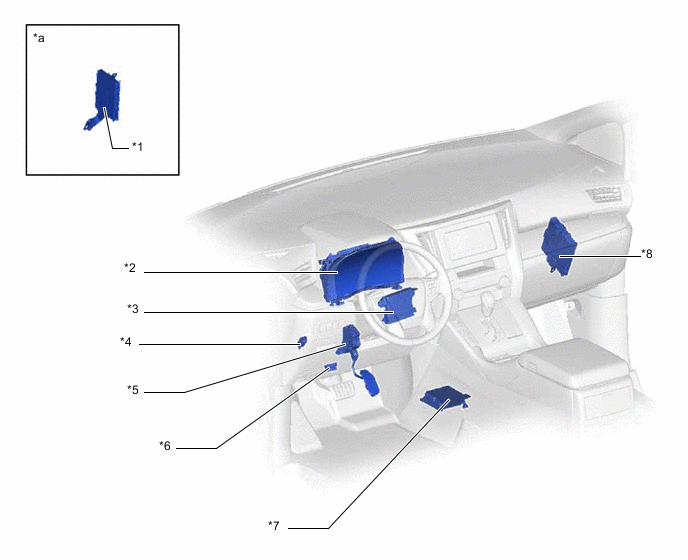

Figure 1. LHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | COMBINATION METER ASSEMBLY |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *6 | DLC3 |
| *7 | AIRBAG ECU ASSEMBLY | *8 | ENGINE STOP AND START ECU |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

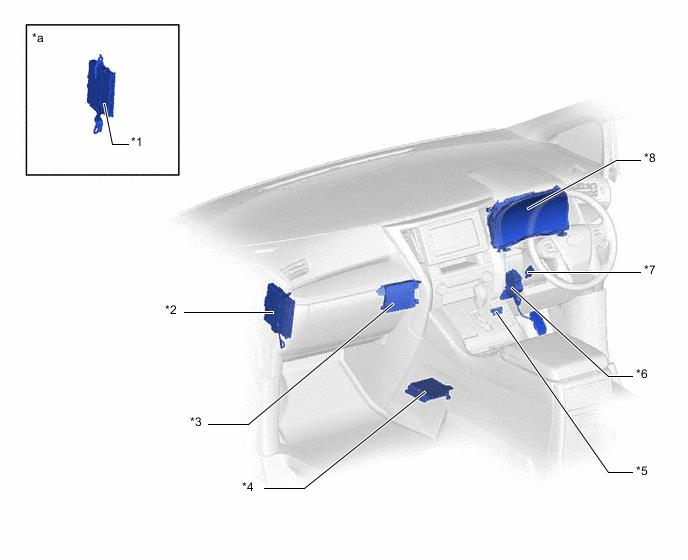

Figure 2. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | ENGINE STOP AND START ECU |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | AIRBAG ECU ASSEMBLY |
| *5 | DLC3 | *6 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *7 | STOP LIGHT SWITCH ASSEMBLY | *8 | COMBINATION METER ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

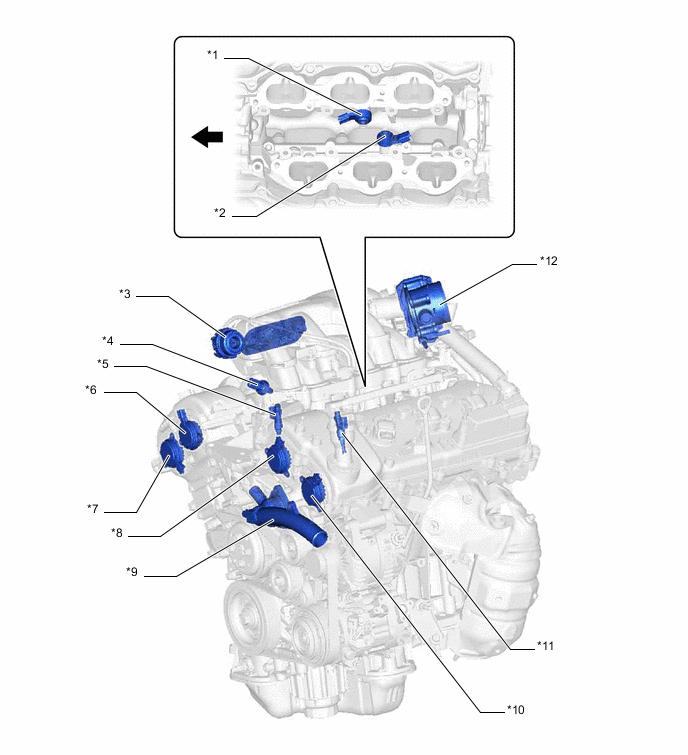

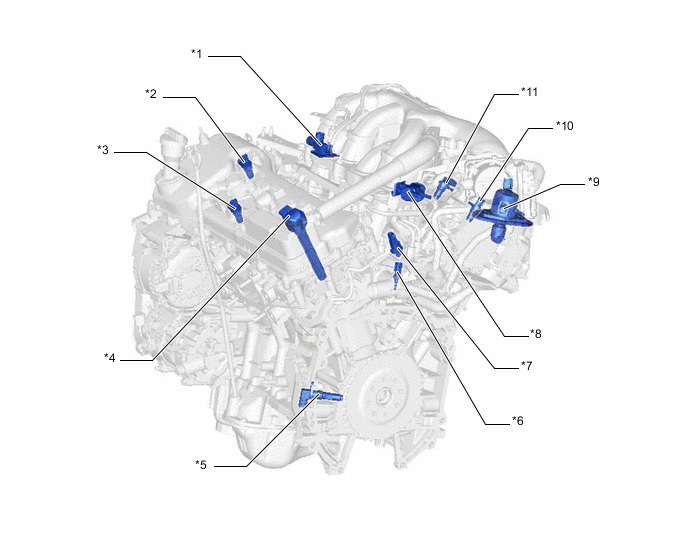

| *1 | VACUUM SWITCHING VALVE ASSEMBLY (for ACIS) | *2 | CAM POSITION SENSOR (NO. 2 CRANK POSITION SENSOR) (Bank 2 Intake) |
| *3 | CAM POSITION SENSOR (NO. 2 CRANK POSITION SENSOR) (Bank 2 Exhaust) | *4 | IGNITION COIL ASSEMBLY |
| *5 | CRANK POSITION SENSOR | *6 | ENGINE COOLANT TEMPERATURE SENSOR |
| *7 | FUEL PRESSURE SENSOR (for High Pressure) | *8 | PURGE VSV |
| *9 | FUEL PUMP ASSEMBLY (for High Pressure) | *10 | CAM POSITION SENSOR (NO. 2 CRANK POSITION SENSOR) (Bank 1 Exhaust) |
| *11 | CAM POSITION SENSOR (NO. 2 CRANK POSITION SENSOR) (Bank 1 Intake) | - | - |
| *1 | KNOCK CONTROL SENSOR (Bank 1) | *2 | KNOCK CONTROL SENSOR (Bank 2) |
| *3 | ACIS ACTUATOR | *4 | FUEL PRESSURE SENSOR (for Low Pressure) |
| *5 | FUEL INJECTOR ASSEMBLY (for Port Injection) | *6 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (Bank 1 Intake) |
| *7 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (Bank 1 Exhaust) | *8 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (Bank 2 Intake) |
| *9 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
|
*10 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (Bank 2 Exhaust) |
| *11 | FUEL INJECTOR ASSEMBLY (for Direct Injection) | *12 | THROTTLE BODY WITH MOTOR ASSEMBLY
|
 |
Engine Front | - | - |
