LIGHTING SYSTEM


  1. FUNCTION OF MAIN COMPONENTS

    Component Function
    Headlight Light Control ECU LH Receives signals from each ECU and sensor and illuminates the cornering lights.
    Headlight Light Control ECU RH Receives signals from the headlight light control ECU LH and illuminates the cornering lights.
    Steering Sensor Detects the steering angle position and outputs it to the headlight light control ECU LH.
    ECM Outputs the shift position signal to the headlight light control ECU LH.
    Main Body ECU (Multiplex Network Body ECU) Outputs each signal to the headlight light control ECU LH.

  2. SYSTEM CONTROL


    1. Cornering lights are provided to increase the distribution of light to the front, sides and top of the vehicle when turning left, right and driving in reverse, improving pedestrian visibility in consideration of safety.

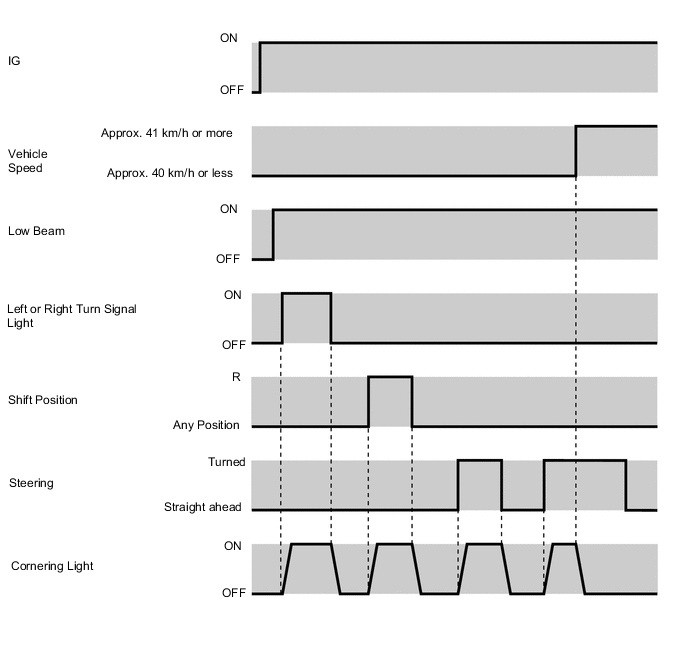

    2. When any of the following conditions is met with the engine switch on (IG), low beams illuminated and vehicle speed at approximately 40 km/h or less, the cornering lights fade in and illuminate.


      • Left or right turn signal switch is turned on

      • Steering wheel is turned to left or right

      • Shift position is R

    3. When the above conditions are no longer met while the cornering lights are illuminated, the cornering lights fade out and turn off.

      B006JYRE03
