SEAT ASSEMBLY


  1. OUTLINE


    1. Seat Variation


      1. An 8-way power seat or a 6-way manual seat is provided for the driver seat.

      2. A 4-way power seat or 4-way manual seat is provided for the front passenger seat.

      3. A manual captain seat, executive captain seat or executive lounge captain seat is provided for the rear No. 1 seat.

      4. A 50/50 split flip-up type manual seat is provided for the rear No. 2 seat.

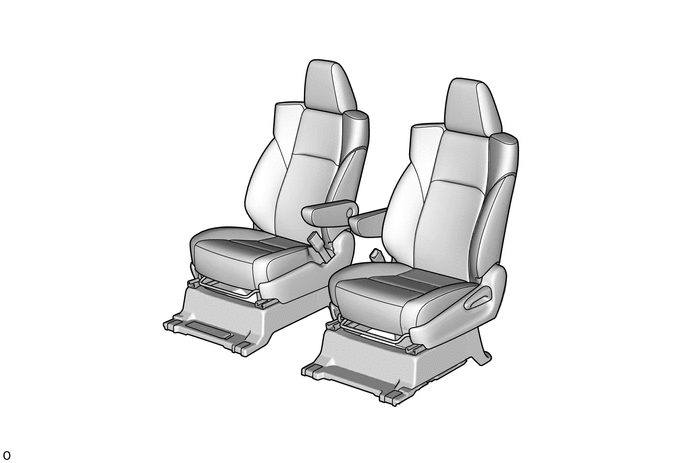

        Figure 1. Front Seat (Manual Seat)

        A01IDIU

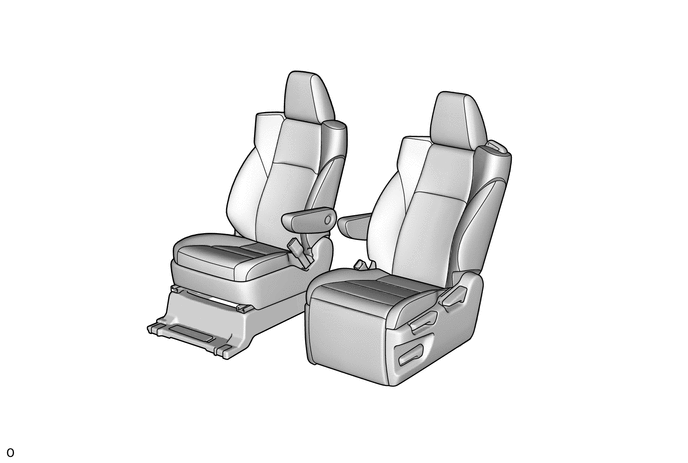

        Figure 2. Front Seat (Driver Seat: Power Seat, Front Passenger Seat: Super Long Slide Seat))

        A01IDIV

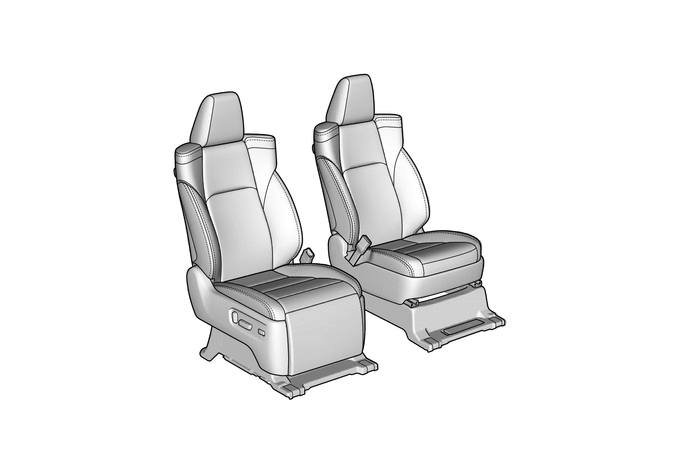

        Figure 3. Front Seat (Power Seat)

        A01IDZU

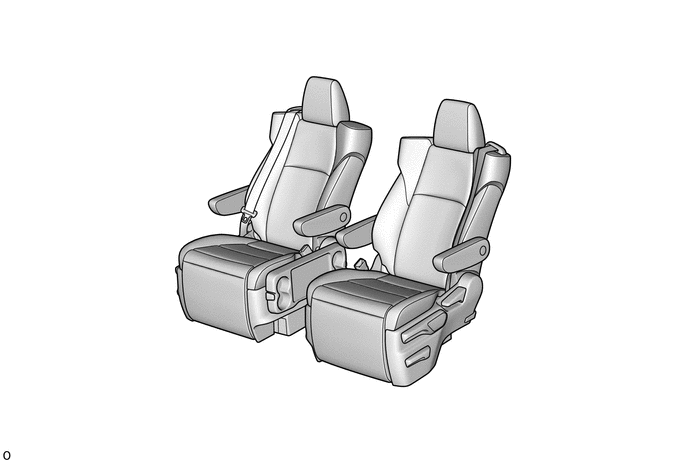

        Figure 4. Rear No. 1 Seat (Manual Captain Seat)

        A01IDVR

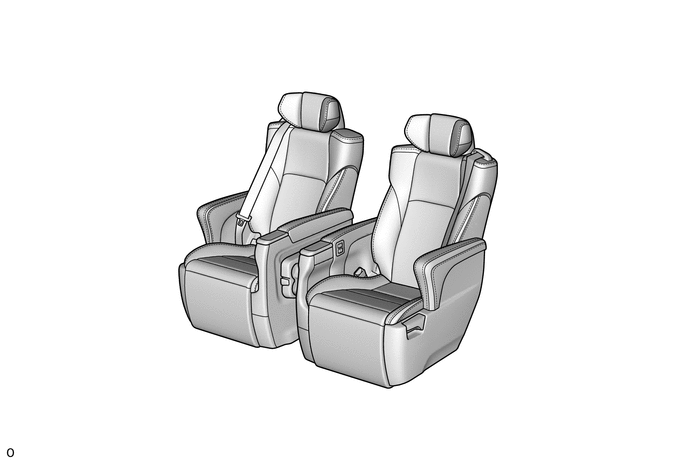

        Figure 5. Rear No. 1 Seat (Executive Captain Seat)

        A01IDHH

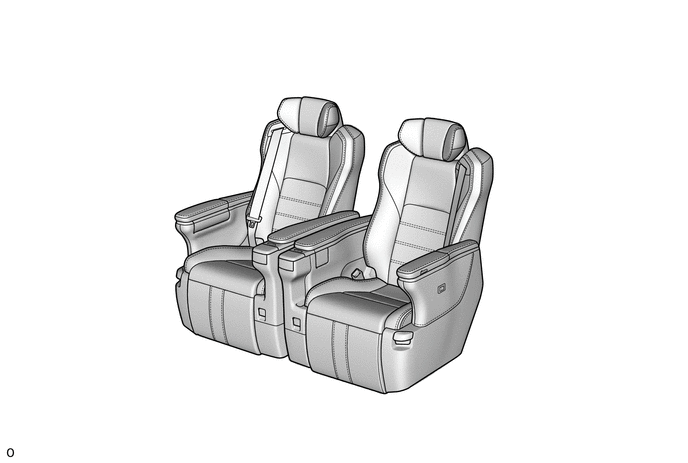

        Figure 6. Rear No. 1 Seat (Executive Lounge Captain Seat)

        A01IDNJ

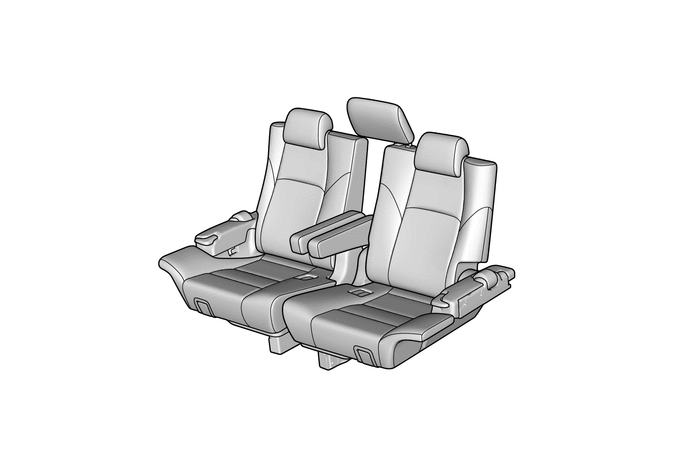

        Figure 7. Rear No. 2 Seat (Manual Flip-up Seat)

        A01IE3T

    2. Seat Cover


      1. 2 types of fabric or 2 types of genuine leather are provided for the seat cover, depending on the models.

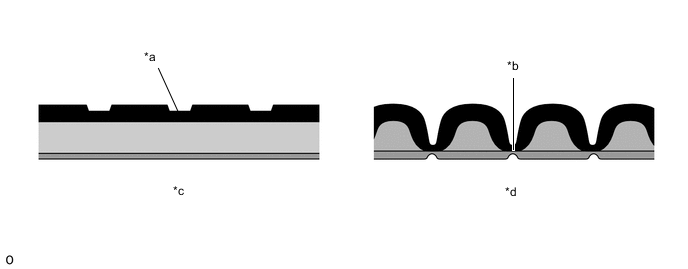

      2. A laminated embossment is used for the fabric seat cover to express a deep pattern similar to quilting.

        Tech Tips

        *: A processing method using heat which adheres the layers from the seat cover surface down to the back side

        A01IDJ4C01
        *a Heat Treatment of Seat Cover Surface Only *b Adhering Layers from Seat Cover Surface to Back Side
        *c Normal Embossment *d Laminated Embossment
