THEFT DETERRENT

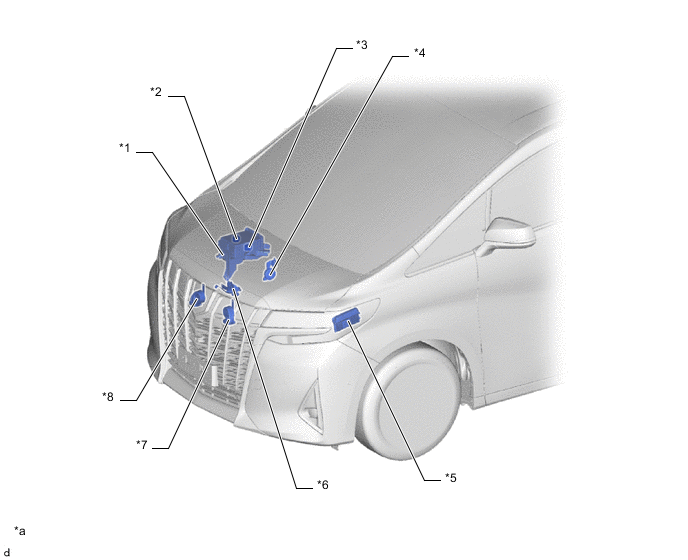

B006KG1C01
*1 No. 2 Engine Room Relay Block *2 Security Warning Relay
*3 Horn Relay Assembly *4 Security Horn Assembly
*5 ECM *6

Hood Lock Assembly


  • Engine Hood Courtesy Switch
*7 Low Pitched Horn Assembly *8 High Pitched Horn Assembly
*a This illustration shown is an example only. - -

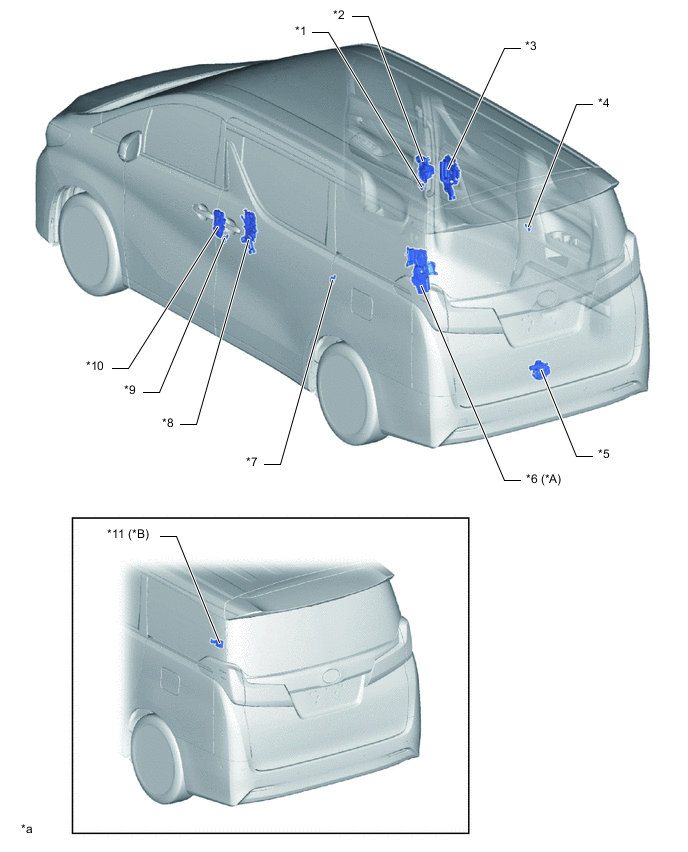

B006K3IC02
*A Models with Power Back Door System *B Models without Power Back Door System
*1 Front Door Courtesy Light Switch Assembly RH *2

Front Door Lock with Motor Assembly RH


  • Door Lock Position Switch

  • Door Lock Motor
*3

Slide Door Handle Assembly RH


  • Door Lock Position Switch

  • Door Lock Motor

 *4 Rear Door Courtesy Light Switch Assembly RH
*5

Back Door Lock Assembly


  • Door Lock Motor

  • Courtesy Light Switch

 *6

Back Door Motor Unit


  • Power Back Door ECU
*7 Rear Door Courtesy Light Switch Assembly LH *8

Slide Door Handle Assembly LH


  • Door Lock Position Switch

  • Door Lock Motor
*9 Front Door Courtesy Light Switch Assembly LH *10

Front Door Lock with Motor Assembly LH


  • Door Lock Position Switch

  • Door Lock Motor
*11 Multiplex Network Door ECU - -
*a This illustration shown is an examples only. - -

Figure 1. LHD Models

B006KDEC01
*1 Certification ECU (Smart Key ECU Assembly) *2 Main Body ECU (Multiplex Network Body ECU)
*3 Combination Meter Assembly - -
*a Refer to Service Bulletin for the installation position of the parts. *b Security Indicator Light
*c This illustration shown is an example only. - -

Figure 2. RHD Models

B006KGGC01
*1 Certification ECU (Smart Key ECU Assembly) *2 Main Body ECU (Multiplex Network Body ECU)
*3 Combination Meter Assembly - -
*a Refer to Service Bulletin for the installation position of the parts. *b Security Indicator Light
*c This illustration shown is an example only. - -
