THEFT DETERRENT

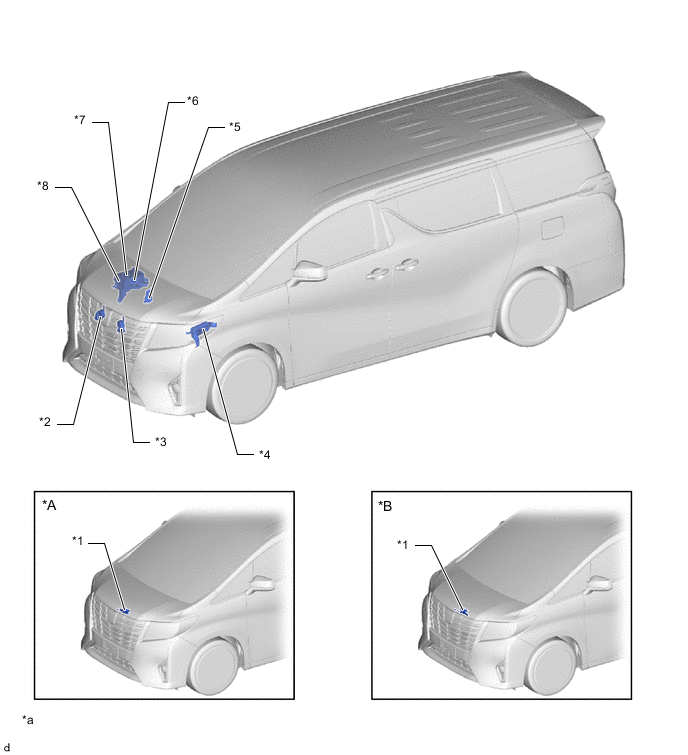

B006K6OC01
*A LHD Models *B RHD Models
*1

Hood Lock Assembly


  • Engine Hood Courtesy Switch

 *2 High Pitched Horn Assembly
*3 Low Pitched Horn Assembly *4 ECM
*5 Security Horn Assembly *6 Horn Relay Assembly
*7 Security Warning Relay *8 No. 2 Engine Room Relay Block
*a This illustration shown is an example only. - -

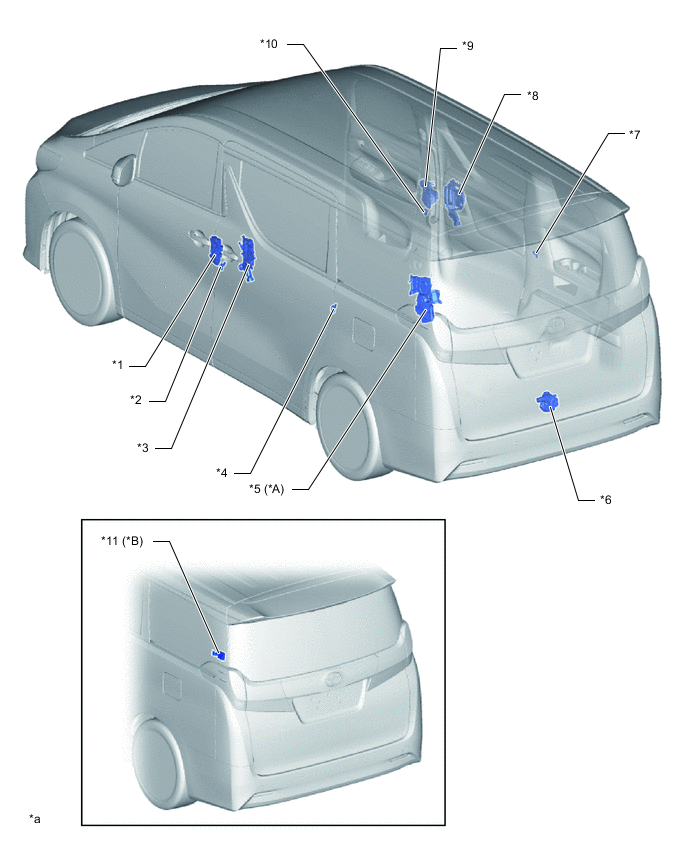

B006K11C02
*A Models with Power Back Door System *B Models without Power Back Door System
*1

Front Door Lock with Motor Assembly LH


  • Door Lock Position Switch

  • Door Lock Motor

 *2 Front Door Courtesy Light Switch Assembly LH
*3

Slide Door Handle Assembly LH


  • Door Lock Position Switch

  • Door Lock Motor

 *4 Rear Door Courtesy Light Switch Assembly LH
*5

Back Door Motor Unit


  • Power Back Door ECU

 *6

Back Door Lock Assembly


  • Door Lock Motor

  • Courtesy Light Switch
*7 Rear Door Courtesy Light Switch Assembly RH *8

Slide Door Handle Assembly RH


  • Door Lock Position Switch

  • Door Lock Motor
*9

Front Door Lock with Motor Assembly RH


  • Door Lock Position Switch

  • Door Lock Motor

 *10 Front Door Courtesy Light Switch Assembly RH
*11 Multiplex Network Door ECU - -
*a This illustration shown is an example only. - -

Figure 1. LHD Models

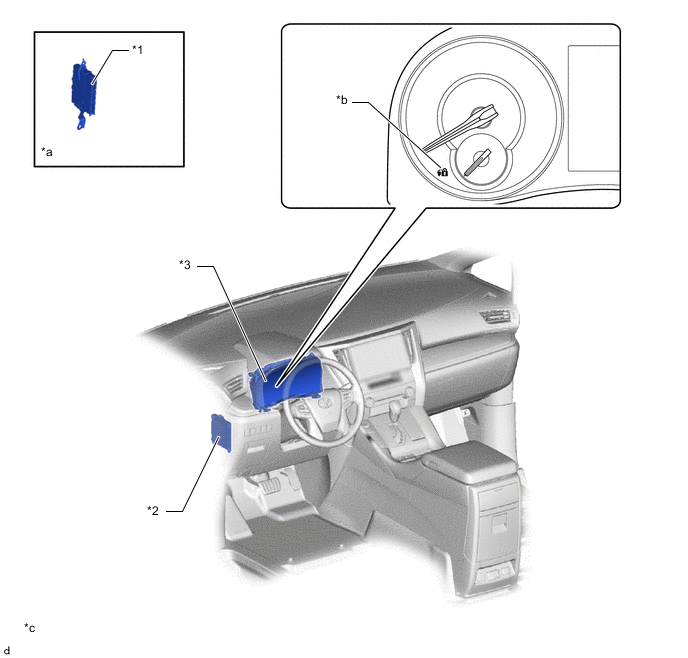

B006KDEC01
*1 Certification ECU (Smart Key ECU Assembly) *2 Main Body ECU (Multiplex Network Body ECU)
*3 Combination Meter Assembly - -
*a Refer to Service Bulletin for the installation position of the parts. *b Security Indicator Light
*c This illustration shown is an example only. - -

Figure 2. RHD Models

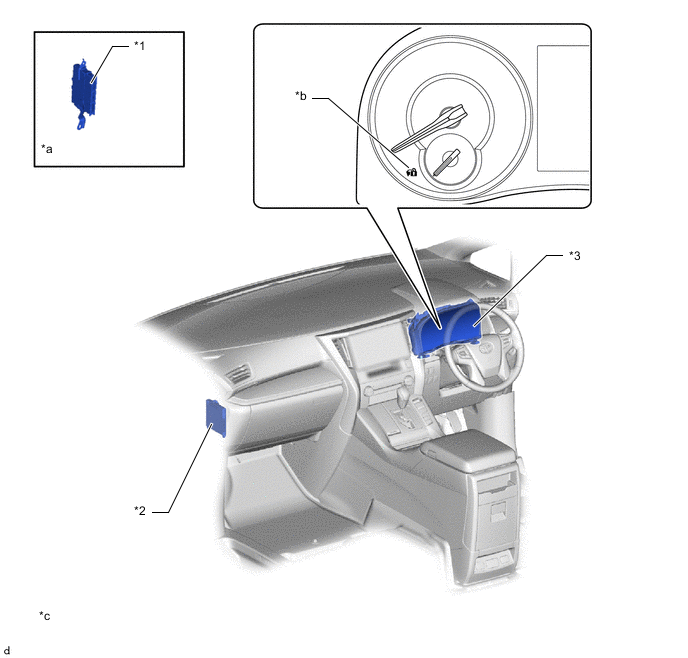

B006KGGC01
*1 Certification ECU (Smart Key ECU Assembly) *2 Main Body ECU (Multiplex Network Body ECU)
*3 Combination Meter Assembly - -
*a Refer to Service Bulletin for the installation position of the parts. *b Security Indicator Light
*c This illustration shown is an example only. - -
