PANORAMIC VIEW MONITOR SYSTEM

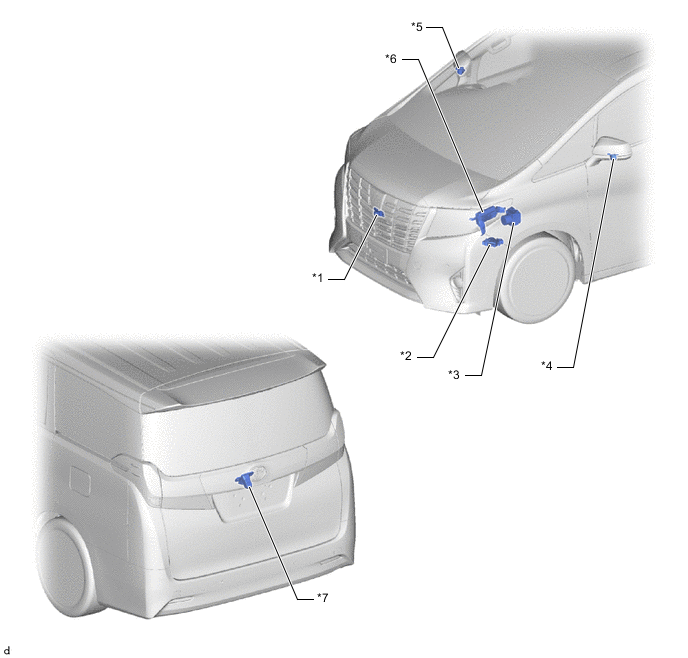

| *1 | Front Television Camera Assembly | *2 | Park/Neutral Position Switch Assembly |
| *3 | Brake Actuator Assembly
|
*4 | Side Television Camera Assembly LH |
| *5 | Side Television Camera Assembly RH | *6 | ECM |
| *7 | Rear Television Camera Assembly | - | - |

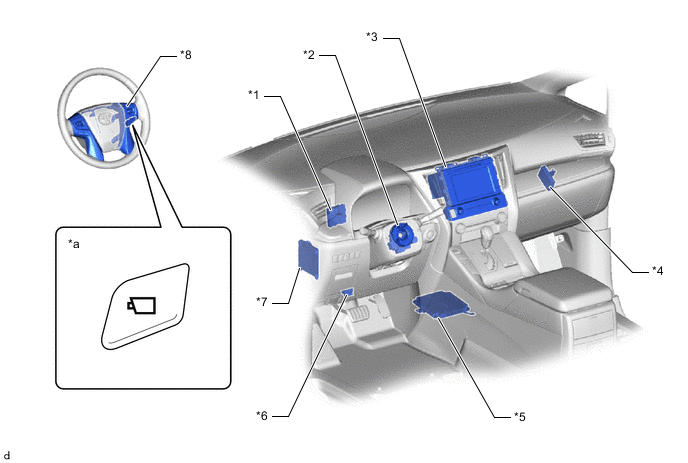

| *1 | Clearance Warning ECU Assembly | *2 | Spiral Cable with Sensor Sub-assembly
|
| *3 | Navigation Receiver Assembly | *4 | Network Gateway ECU |
| *5 | Parking Assist ECU | *6 | DLC3 |
| *7 | Main Body ECU (Multiplex Network Body ECU) | *8 | Steering Pad Switch Assembly |
| *a | Panoramic View Monitor Main Switch | - | - |
