BLIND SPOT MONITOR SYSTEM
| *1 | Outer Rear View Mirror Assembly RH | *2 | RCTA Buzzer (Blind Spot Monitor Buzzer) |
| *3 | Outer Rear View Mirror Assembly LH | *4 | Brake Actuator Assembly
|
| *5 | ECM | - | - |
| *a | The illustrations shown are examples only. | - | - |

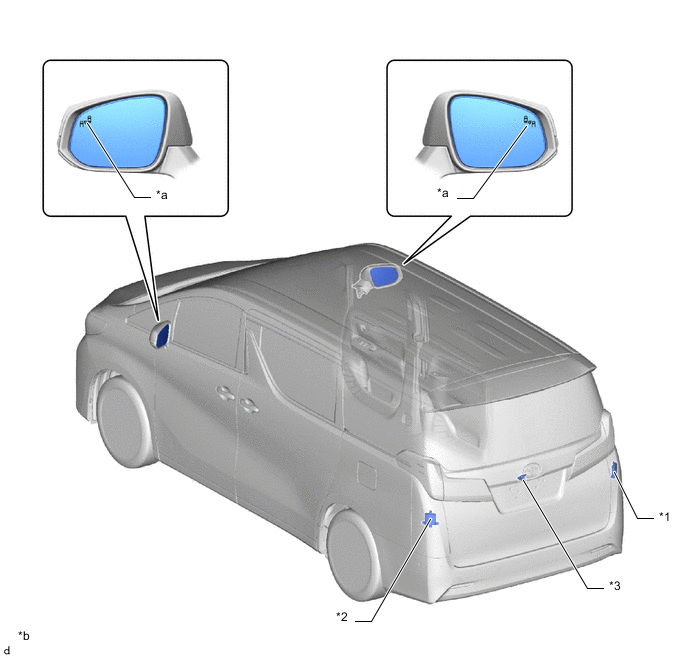

| *1 | Blind Spot Monitor Sensor RH | *2 | Blind Spot Monitor Sensor LH |
| *3 | Rear Television Camera Assembly | - | - |
| *a | Outer Rear View Mirror Indicator Light | *b | The illustrations shown are examples only. |

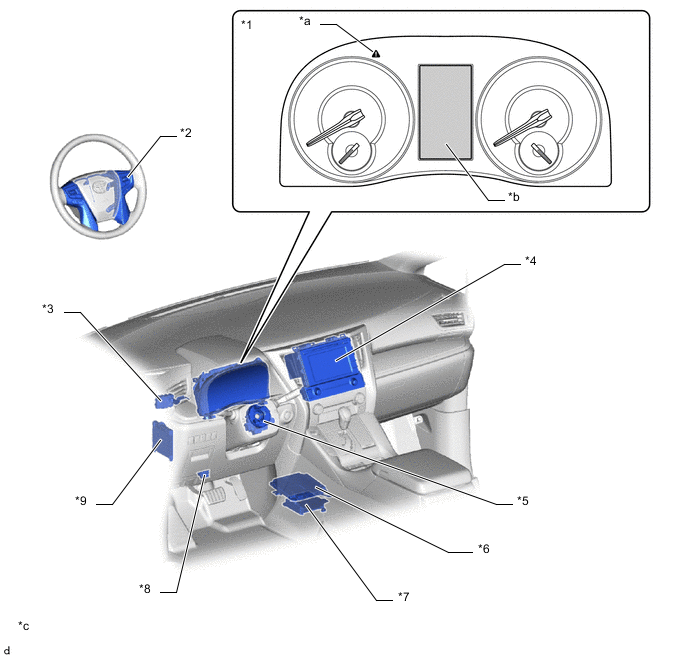

| *1 | Combination Meter Assembly | *2 | Steering Pad Switch Assembly |
| *3 | Network Gateway ECU | *4 | Navigation Receiver Assembly |
| *5 | Spiral Cable with Sensor Sub-assembly | *6 | Parking Assist ECU |
| *7 | Airbag ECU Assembly | *8 | DLC3 |
| *9 | Main Body ECU (Multiplex Network Body ECU) | - | - |
| *a | Master Warning Light | *b | Multi-information Display |
| *c | The illustrations shown are examples only. | - | - |
