TOYOTA PARKING ASSIST-SENSOR SYSTEM

A01IDLDC01

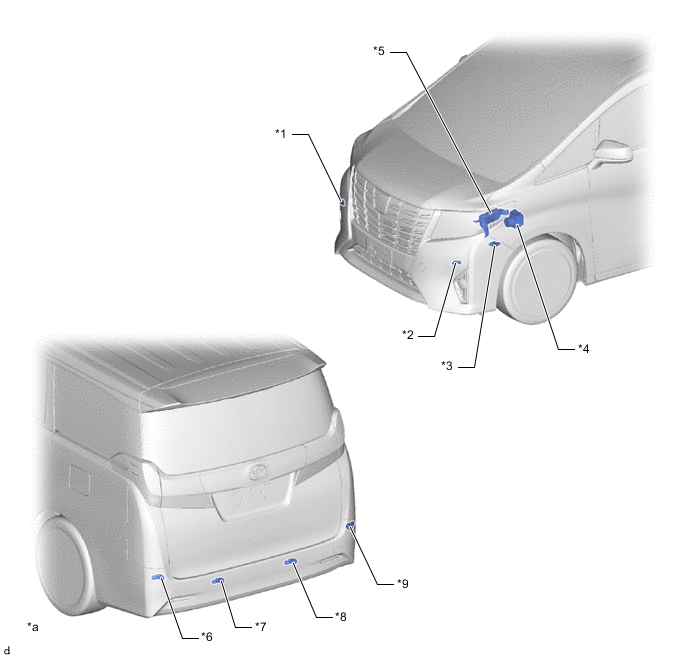

*1 No. 1 Ultrasonic Sensor (FR Sensor) *2 No. 1 Ultrasonic Sensor (FL Sensor)
*3 Park/Neutral Position Switch Assembly *4

Brake Actuator Assembly


  • Skid Control ECU
*5 ECM *6 No. 2 Ultrasonic Sensor (RL Sensor)
*7 No. 3 Ultrasonic Sensor (RLC Sensor) *8 No. 3 Ultrasonic Sensor (RRC Sensor)
*9 No. 2 Ultrasonic Sensor (RR Sensor) - -
*a The illustrations shown are examples only. - -
A01IDF5C01
*A Models with Navigation Receiver Assembly or Radio and Display Receiver Assembly *B Models with Panoramic View Monitor System

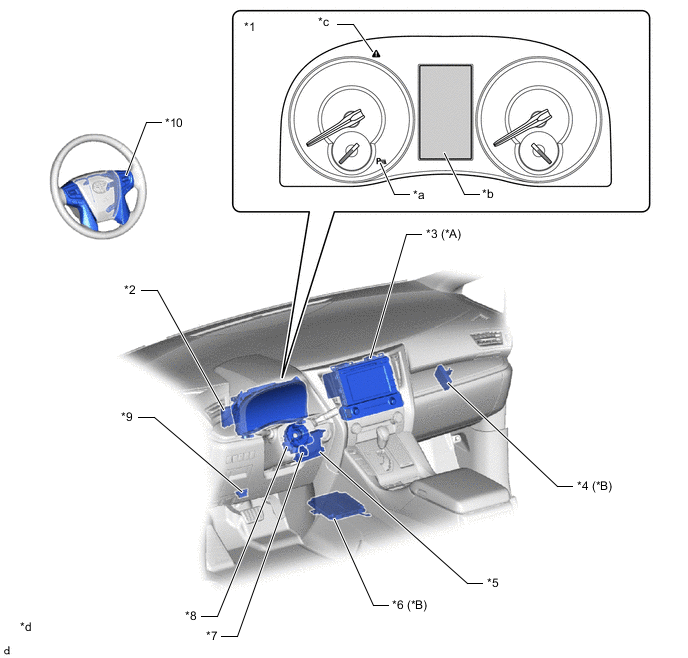

*1 Combination Meter Assembly *2 Clearance Warning ECU Assembly
*3 Navigation Receiver Assembly/Radio and Display Receiver Assembly *4 Network Gateway ECU
*5 Air Conditioning Amplifier Assembly *6 Parking Assist ECU
*7 No. 1 Clearance Warning Buzzer *8 Spiral Cable with Sensor Sub-assembly
*9 DLC3 *10 Steering Pad Switch Assembly
*a Clearance Sonar Indicator Light *b Multi-information Display
*c Master Warning Light *d The illustrations shown are examples only.
