BRAKE CONTROL SYSTEM


  1. CONSTRUCTION


    1. An active type speed sensor is used. This sensor contains a Hall IC.

    2. The magnet type rotor, which consists of N and S poles that are arranged in a circle, is integrated into the hub bearing inner race.

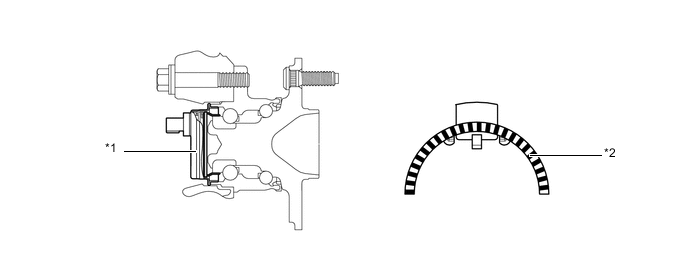

      A01FJRHC01
      *1 Front Speed Sensor *2 Sensor Rotor

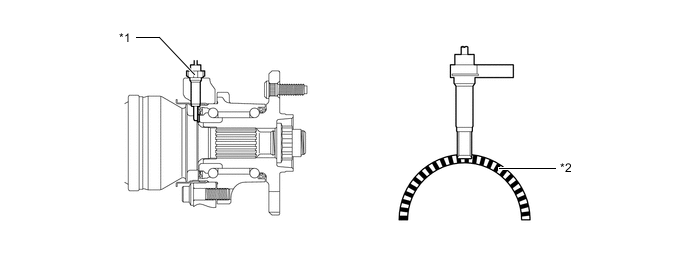

      A01FJRCC01
      *1 Rear Speed Sensor *2 Sensor Rotor
