BRAKE CONTROL SYSTEM


  1. SYSTEM CONTROL


    1. This function controls the brake force that acts on the rear wheels in accordance with the changes in the vehicle conditions such as load factors or deceleration, in order to ensure excellent braking performance.

      Figure 1. EBD Control Concept (without Load in Rear)

      A01FJBBE01
      *1 Ideal brake force distribution
      *2 EBD control
      *3 Rear Brake Force
      *4 Front Brake Force

      Figure 2. EBD Control Concept (with Load in Rear)

      A01FJH0E04
      *1 Ideal brake force distribution
      *2 EBD control
      *3 Rear Brake Force
      *4 Front Brake Force

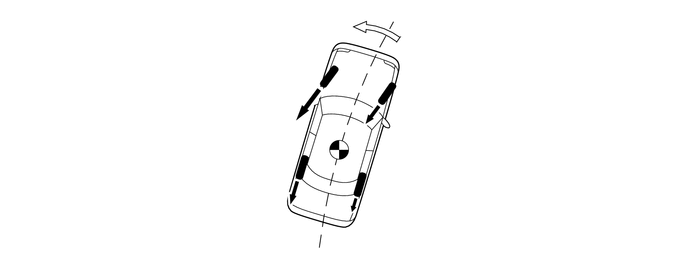

    2. During cornering braking, this function controls the brake force that acts on the left and right wheels in accordance with the vehicle conditions. This ensures vehicle stability and excellent braking performance.

      A01FJLRC07
      B004H73 Brake Force B004HAI Control Moment
