BRAKE CONTROL SYSTEM
Figure 1. LHD Models
| *1 | FRONT SPEED SENSOR RH | *2 | ECM |
| *3 | SEMICONDUCTOR PWR INTEGRATION ECU
|
*4 | FRONT SPEED SENSOR LH |
| *5 | BRAKE ACTUATOR ASSEMBLY
|
*6 | REAR SPEED SENSOR LH |
| *7 | REAR SPEED SENSOR RH | *8 | POWER STEERING ECU ASSEMBLY |
Figure 2. RHD Models
| *1 | FRONT SPEED SENSOR RH | *2 | ECM |
| *3 | SEMICONDUCTOR PWR INTEGRATION ECU
|
*4 | FRONT SPEED SENSOR LH |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | REAR SPEED SENSOR LH |
| *7 | REAR SPEED SENSOR RH | *8 | BRAKE ACTUATOR ASSEMBLY
|

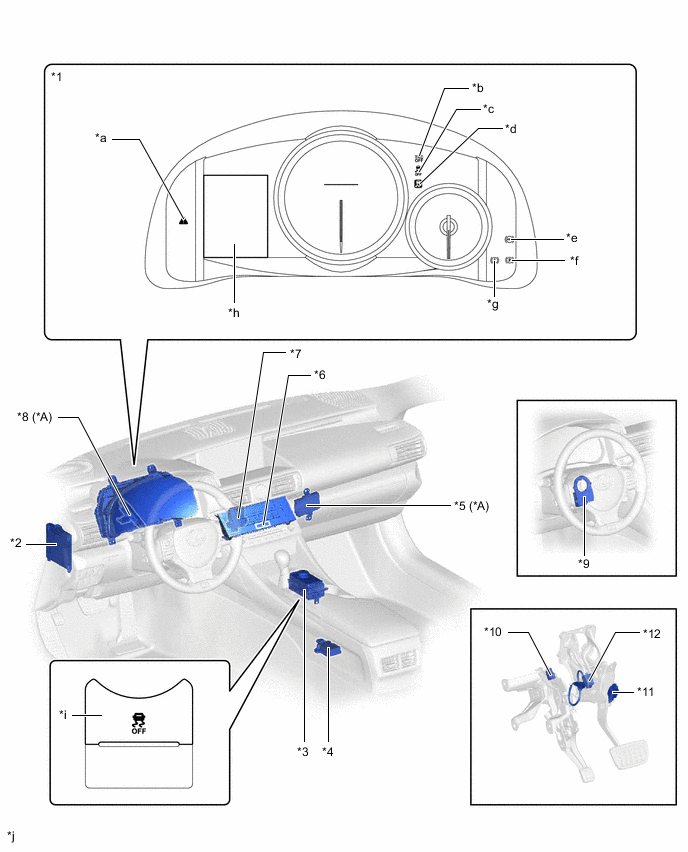

Figure 3. LHD Models
| *A | Models with Pre-crash Safety System | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION SWITCH ASSEMBLY | *4 | YAWRATE SENSOR |
| *5 | NETWORK GATEWAY ECU | *6 | AIR CONDITIONING CONTROL ASSEMBLY
|
| *7 | ROLL RATE AND VERTICAL ACCELERATION SENSOR | *8 | DRIVING SUPPORT ECU ASSEMBLY |
| *9 | STEERING SENSOR | *10 | PARKING BRAKE SWITCH ASSEMBLY |
| *11 | STOP LIGHT SWITCH ASSEMBLY | *12 | BRAKE PEDAL LOAD SENSING SWITCH |
| *a | Master Warning Light | *b | TRC OFF Indicator Light |
| *c | VSC OFF Indicator Light | *d | Slip Indicator Light |
| *e | ABS Warning Light | *f | Parking Brake Indicator Light |
| *g | Brake System Warning Light | *h | Multi-information Display |
| *i | VSC OFF Switch | *j | This illustration is an example. |

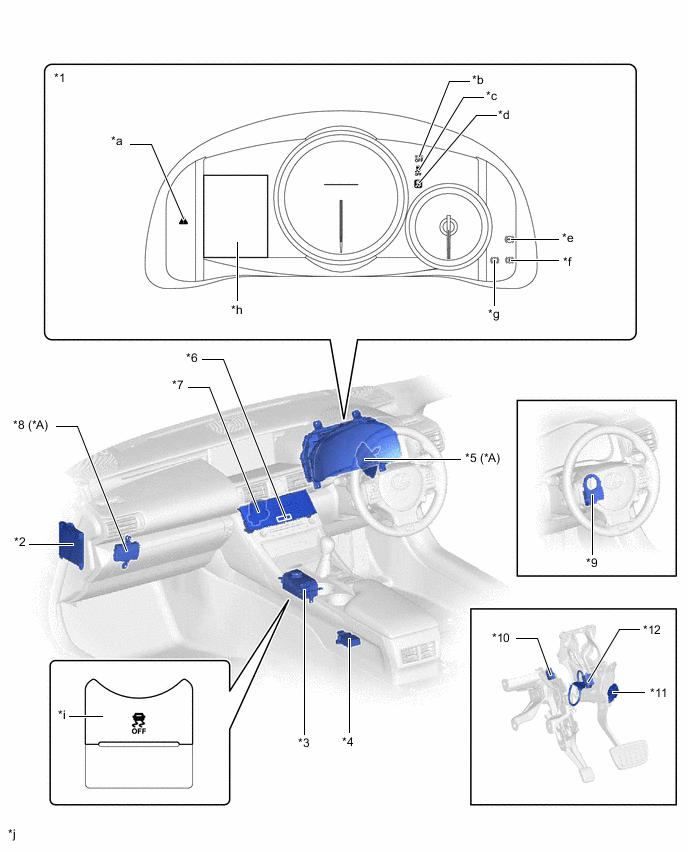

Figure 4. RHD Models
| *A | Models with Pre-crash Safety System | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION SWITCH ASSEMBLY | *4 | YAWRATE SENSOR |
| *5 | DRIVING SUPPORT ECU ASSEMBLY | *6 | AIR CONDITIONING CONTROL ASSEMBLY
|
| *7 | ROLL RATE AND VERTICAL ACCELERATION SENSOR | *8 | NETWORK GATEWAY ECU |
| *9 | STEERING SENSOR | *10 | PARKING BRAKE SWITCH ASSEMBLY |
| *11 | STOP LIGHT SWITCH ASSEMBLY | *12 | BRAKE PEDAL LOAD SENSING SWITCH |
| *a | Master Warning Light | *b | TRC OFF Indicator Light |
| *c | VSC OFF Indicator Light | *d | Slip Indicator Light |
| *e | ABS Warning Light | *f | Parking Brake Indicator Light |
| *g | Brake System Warning Light | *h | Multi-information Display |
| *i | VSC OFF Switch | *j | This illustration is an example. |
