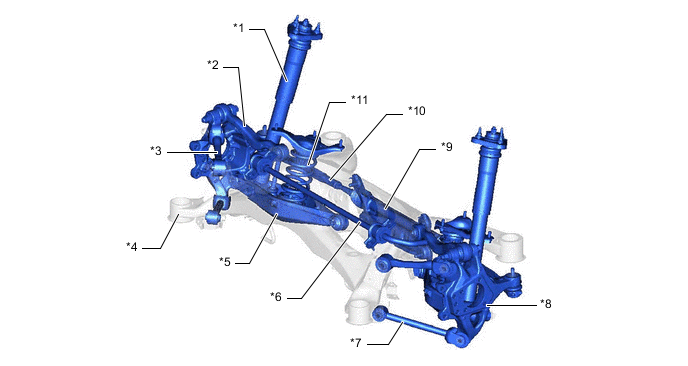

REAR SUSPENSION SYSTEM
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY |
| *3 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *6 | REAR STABILIZER BAR |
| *7 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *8 | REAR AXLE CARRIER SUB-ASSEMBLY |
| *9 | REAR SUSPENSION ARM BRACKET ASSEMBLY | *10 | TOE CONTROL ARM (REAR STEERING TIE ROD ASSEMBLY) |
| *11 | REAR COIL SPRING | - | - |
