FUEL SYSTEM

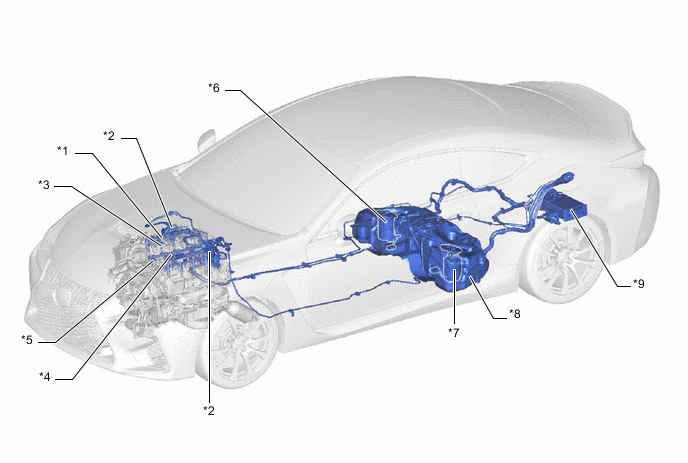

Figure 1. Destination Package for South Korea

A01FJNZC01
*1 FUEL DELIVERY PIPE (for Port Injection) *2 FUEL PUMP ASSEMBLY (for High Pressure)
*3 FUEL INJECTOR ASSEMBLY (for Port Injection) *4 FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection)
*5 FUEL INJECTOR ASSEMBLY (for Direct Injection) *6

FUEL TANK VENT TUBE ASSEMBLY


  • FUEL SENDER GAUGE ASSEMBLY
*7

FUEL PUMP ASSEMBLY (for Low Pressure)


  • FUEL PUMP

  • FUEL FILTER ASSEMBLY

  • FUEL MAIN VALVE ASSEMBLY

  • FUEL PRESSURE REGULATOR ASSEMBLY

  • FUEL SENDER GAUGE ASSEMBLY

  • JET PUMP

 *8 FUEL TANK ASSEMBLY
*9 CANISTER - -

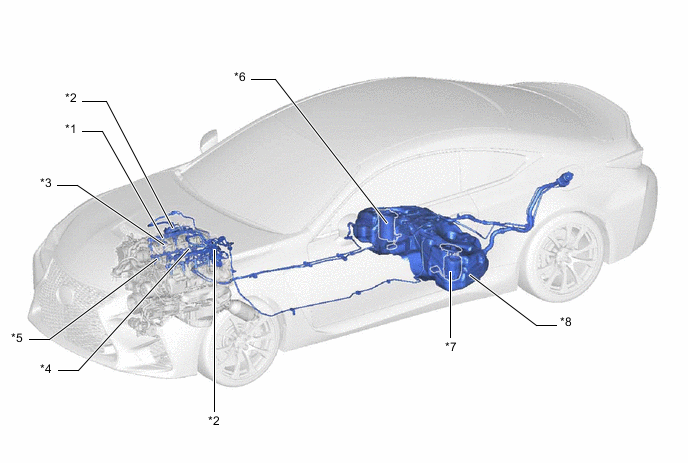

Figure 2. Except Destination Package for South Korea

A01FJTFC01
*1 FUEL DELIVERY PIPE (for Port Injection) *2 FUEL PUMP ASSEMBLY (for High Pressure)
*3 FUEL INJECTOR ASSEMBLY (for Port Injection) *4 FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection)
*5 FUEL INJECTOR ASSEMBLY (for Direct Injection) *6

FUEL TANK VENT TUBE ASSEMBLY


  • CANISTER

  • FUEL SENDER GAUGE ASSEMBLY
*7

FUEL PUMP ASSEMBLY (for Low Pressure)


  • FUEL PUMP

  • FUEL FILTER ASSEMBLY

  • FUEL MAIN VALVE ASSEMBLY

  • FUEL PRESSURE REGULATOR ASSEMBLY

  • FUEL SENDER GAUGE ASSEMBLY

  • JET PUMP

 *8 FUEL TANK ASSEMBLY
