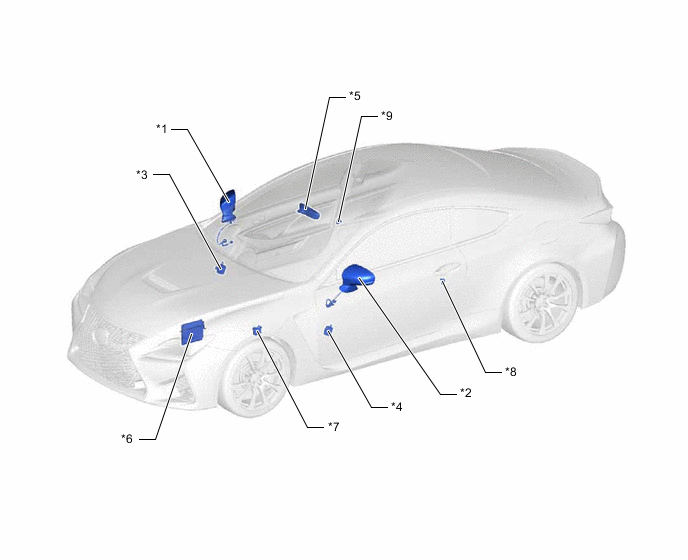

MIRROR SYSTEM
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY (RH) | *4 | OUTER MIRROR CONTROL ECU ASSEMBLY (LH) |
| *5 | INNER REAR VIEW MIRROR ASSEMBLY | *6 | ECM |
| *7 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *8 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
| *9 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) | - | - |

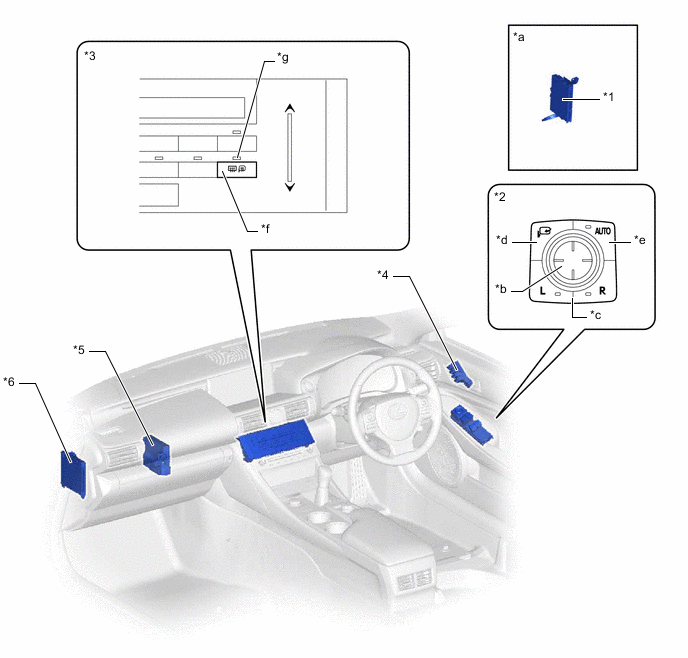

Figure 1. LHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | AIR CONDITIONING CONTROL ASSEMBLY |
| *3 | OUTER MIRROR SWITCH (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY) | *4 | SEAT MEMORY SWITCH LH |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | Rear Window Defogger Switch |
| *c | Indicator Light | *d | Mirror Surface Angle Adjustment Switch |
| *e | Right/Left Selector Switch | *f | Retraction/Restoration Switch |
| *g | Auto Switch | - | - |

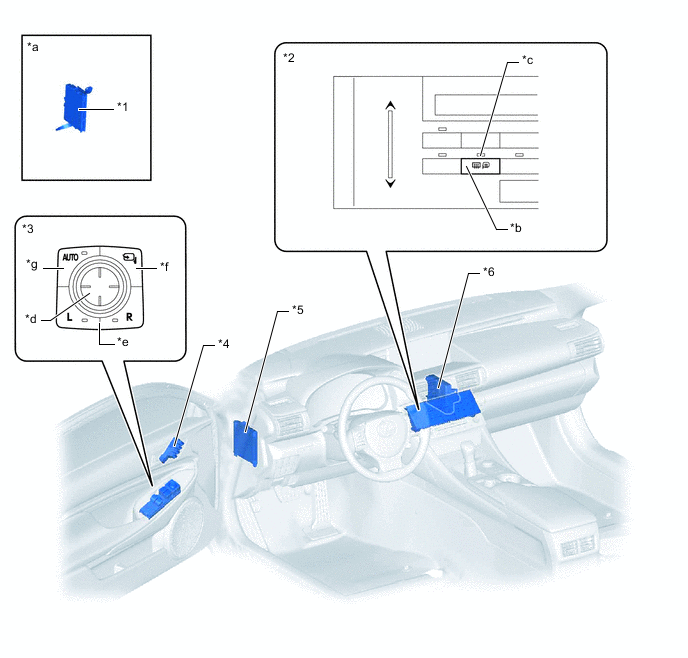

Figure 2. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | OUTER MIRROR SWITCH (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY) |
| *3 | AIR CONDITIONING CONTROL ASSEMBLY | *4 | SEAT MEMORY SWITCH LH |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | Mirror Surface Angle Adjustment Switch |
| *c | Right/Left Selector Switch | *d | Retraction/Restoration Switch |
| *e | Auto Switch | *f | Rear Window Defogger Switch |
| *g | Indicator Light | - | - |
