MIRROR SYSTEM

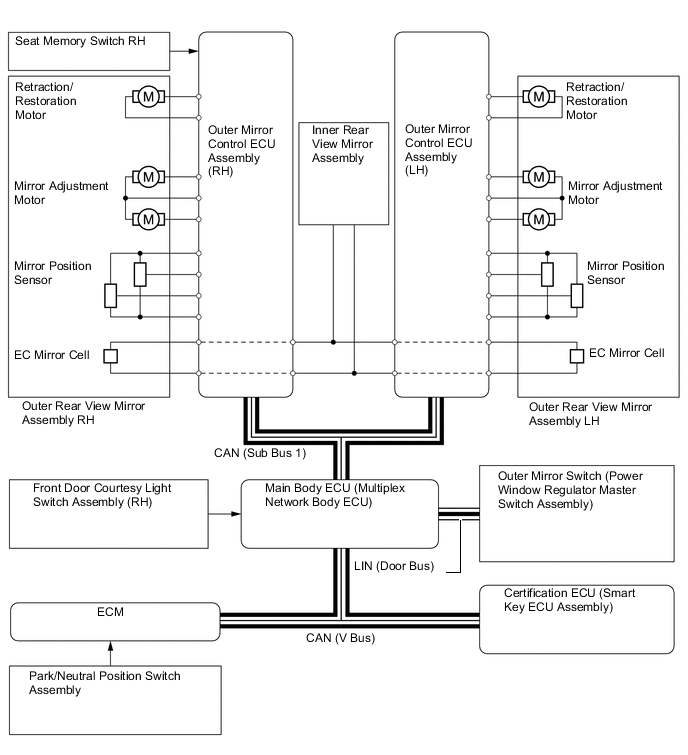

Figure 1. Mirror System (LHD Models)

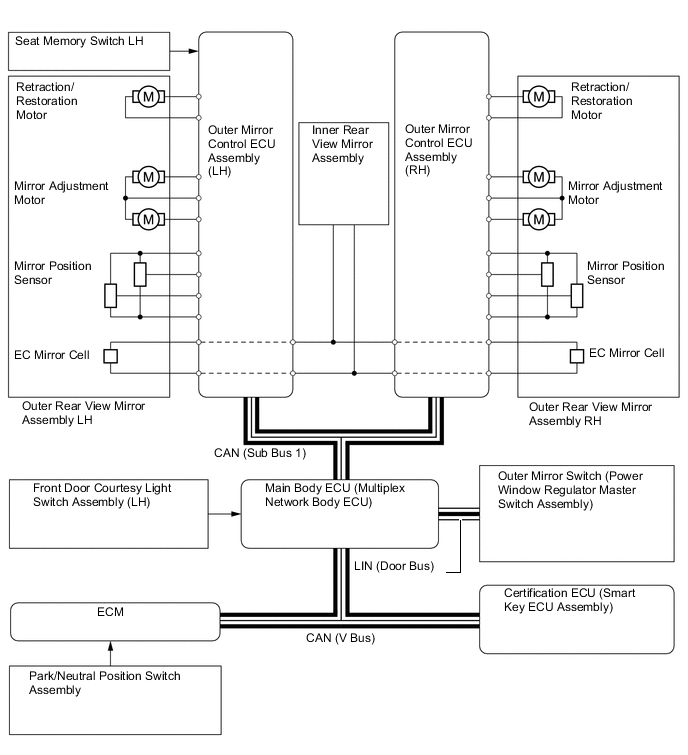

Figure 2. Mirror System (RHD Models)

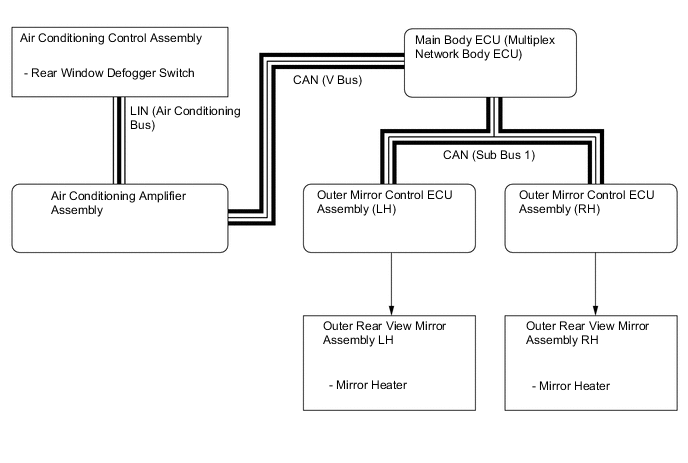

Figure 3. Mirror Heater System (Models with Mirror Heater System)
Figure 1. Mirror System (LHD Models)
Figure 2. Mirror System (RHD Models)
Figure 3. Mirror Heater System (Models with Mirror Heater System)
