ASC SYSTEM

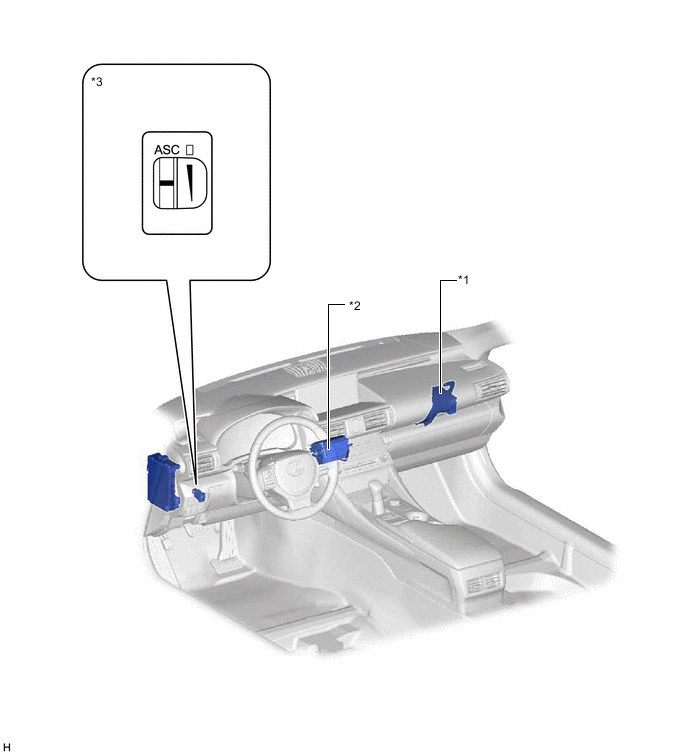

Figure 1. LHD Models
| *1 | STEREO COMPONENT EQUALIZER ASSEMBLY | *2 | NO. 1 SPEAKER WITH BOX ASSEMBLY |
| *3 | VEHICLE SOUND SWITCH | - | - |

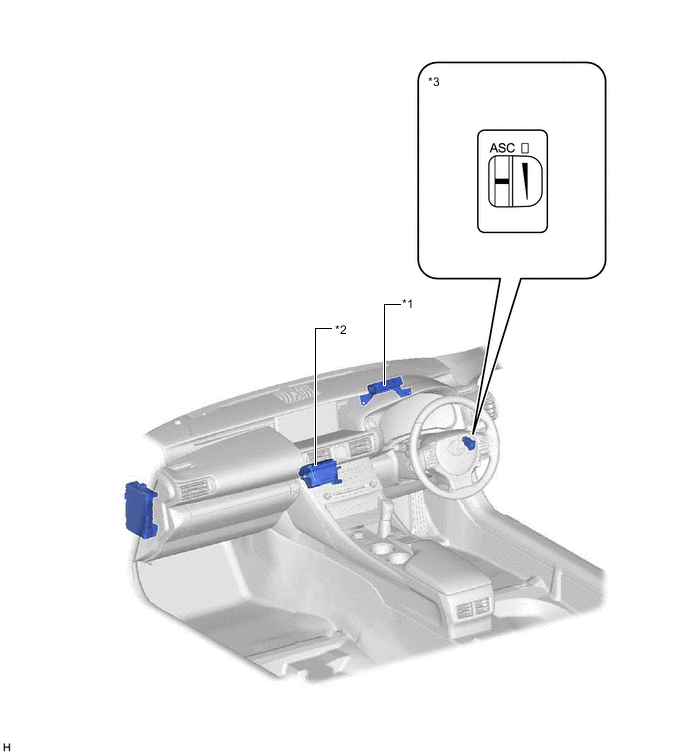

Figure 2. RHD Models
| *1 | STEREO COMPONENT EQUALIZER ASSEMBLY | *2 | NO. 1 SPEAKER WITH BOX ASSEMBLY |
| *3 | VEHICLE SOUND SWITCH | - | - |
