AUDIO AND VISUAL SYSTEM

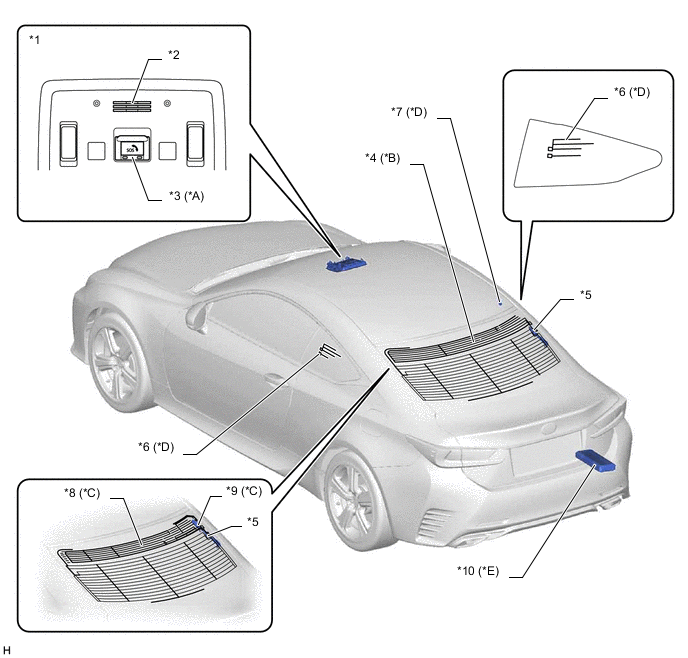

| *A | Models with Manual (SOS) Switch | *B | Except Models with Digital Audio Broadcast (DAB) Tuner |
| *C | Models with Digital Audio Broadcast (DAB) Tuner | *D | Models with Digital TV Tuner |
| *E | Models with Lexus Display Audio System (10-speaker Type), 10-speaker Surround Sound System, 17-speaker Surround Sound System or Navigation System | - | - |
| *1 | MAP LIGHT ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | MANUAL (SOS) SWITCH | *4 | WINDOW GLASS ANTENNA WIRE
|
| *5 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *6 | WINDOW GLASS ANTENNA WIRE
|
| *7 | TELEVISION ANTENNA ASSEMBLY | *8 | WINDOW GLASS ANTENNA WIRE
|
| *9 | DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |

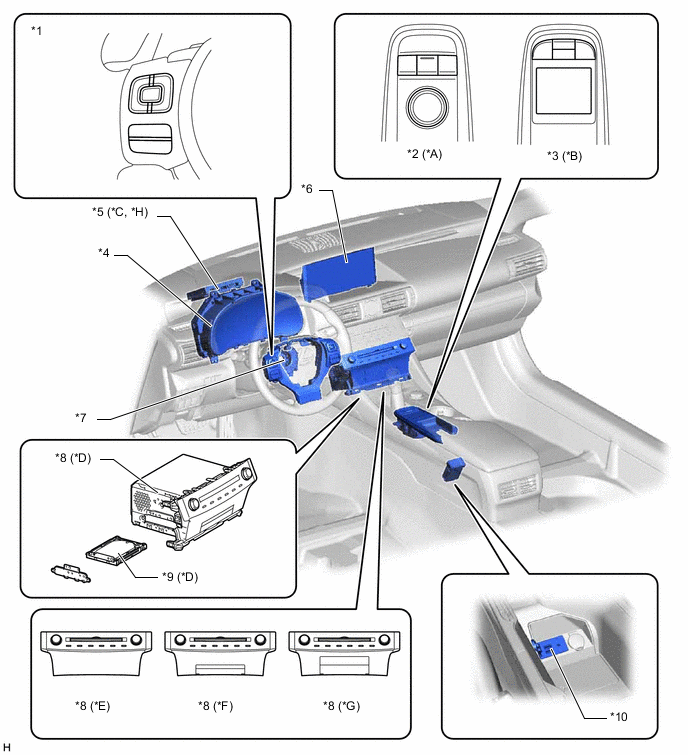

Figure 1. LHD Models
| *A | Models with Lexus Display Audio System | *B | Models with 10-speaker Surround Sound System, 17-speaker Surround Sound System or Navigation System |
| *C | Models for China with Telematics Transceiver Connection Type G-BOOK System | *D | Models for China with Navigation System |
| *E | Models with 10-speaker Surround Sound System or Lexus Display Audio System | *F | Models with Navigation System (10-speaker Type) |
| *G | Models with 17-speaker Surround Sound System or Navigation System (17-speaker Type) | *H | Models with Manual (SOS) Switch |
| *1 | STEERING PAD SWITCH ASSEMBLY
|
*2 | LEXUS DISPLAY AUDIO CONTROLLER (REMOTE OPERATION BOARD) |
| *3 | REMOTE TOUCH | *4 | COMBINATION METER ASSEMBLY |
| *5 | TELEMATICS TRANSCEIVER (DATA COMMUNICATION MODULE) | *6 | MULTI-DISPLAY ASSEMBLY |
| *7 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *8 | RADIO RECEIVER ASSEMBLY |
| *9 | HARD DISK DRIVE | *10 | NO. 1 STEREO JACK ADAPTER ASSEMBLY |
Figure 2. RHD Models
| *A | Models with Lexus Display Audio System | *B | Models with Navigation System (10-speaker Type) |
| *C | Models with 17-speaker Surround Sound System or Navigation System (17-speaker Type) | *D | Models with Navigation System |
| *1 | RADIO RECEIVER ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY
|
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *6 | LEXUS DISPLAY AUDIO CONTROLLER (REMOTE OPERATION BOARD) |
| *7 | REMOTE TOUCH | *8 | NO. 1 STEREO JACK ADAPTER ASSEMBLY |
