AUDIO AND VISUAL SYSTEM


  1. OUTLINE


    1. Audio System


      1. The following audio systems are available:

        Audio System Audio Head Unit Speaker
        Lexus Display Audio System Radio Receiver Assembly 6 Speakers
        10 Speakers
        10-speaker Surround Sound System 10 Speakers
        17-speaker Surround Sound System 17 Speakers
        Navigation System 10 Speakers
        17 Speakers

    2. Audio Head Unit


      1. In consideration of the unity with the instrument panel, a uniquely sized audio head unit is provided.

      2. A Thin Film Transistor Liquid Crystal Display (TFT LCD) is used for the multi-display, enabling operation of the audio screen, Bluetooth hands-free screen, vehicle information screen, etc. using the Lexus display audio controller (remote operation board)*1 or remote touch*2.

        Tech Tips

        For details on the remote touch, refer to the navigation system/multi-information system section. Click here

        *1: Models with Lexus display audio system

        *2: Models with 10-speaker surround sound system, 17-speaker surround sound system or navigation system

      3. Due to the change in the multi-display location, the Lexus display audio controller (remote operation board) is used to ensure operability.*


        • *: Models with Lexus display audio system

        A01VQU4

      4. The audio source can be switched on the audio source selection screen. The arrangement of the audio sources displayed on the audio source screen can be changed according to the frequency of use.

        B0072D0E05
        Audio Source Selection Screen
        *1 Navigation System, 10-speaker Surround Sound System and 17-speaker Surround Sound System
        *2 Lexus Display Audio System
        *3 The illustrations shown are examples only. The illustrations may differ from the actual vehicle screens.

      5. The status of the currently selected audio source can be displayed on the multi-information display in the combination meter assembly.

      6. The MirrorLink function is provided. This function enables the user to operate their smartphone using the multi-display by connecting it to the system via a USB cable.*

        *: Models with Lexus display audio system (except models for Australia)

      7. Discs containing MPEG audio layer-3 (MP3) files, Windows Media Audio (WMA) files and Advanced Audio Coding (AAC) files can be played.

      8. Discs with the marks shown below can be played.

        B0072FRC05
        *A Models with Lexus Display Audio System *B Models with 10-speaker Surround Sound System, 17-speaker Surround Sound System or Navigation System
        *C Models with Lexus Display Audio System (Destination Package for Southeast Asia) *D Models with Navigation System (Destination Package for Southeast Asia)
        *E Models with Lexus Display Audio System (Models for G.C.C. Countries and Destination Packages for Taiwan, Southeast Asia, Central and South America and South Africa) - -

    3. Digital Audio Broadcast (DAB) (Models for Russia and Australia and Destination Package for Hong Kong and South Africa with Navigation System and Australia with Lexus Display Audio System)


      1. Digital Audio Broadcast (DAB) reception is available. This mostly prevents broadcast interference, achieving clear reception with high quality sound.

      2. The time shift operation function can be used to play back DAB programs at a later time. (Except destination package for Hong Kong)

        Tech Tips

        The amount of playback possible depends on the bit rate of the DAB station to be recorded, the amount of DAB unit memory, and the time at which reception of the broadcast began.

    4. USB/AUX Port


      1. 2 USB ports are provided so that up to 2 of the following items can be available at once: USB memory device, portable audio player (USB type), iPhone, iPod classic, iPod, iPod nano or iPod touch.

      2. The USB system enables the display of photo data stored on a USB memory device. (Models with Lexus display audio system (except destination package for Hong Kong))

      3. The USB system enables playback of video data stored on a USB memory device and the display of photo data. (Models for Russia and G. C. C. countries and destination packages for Taiwan, Southeast Asia and South Africa with navigation system and destination package for Central and South America with 17-speaker surround sound system)

      4. Videos stored on a video capable device such as an iPod or VTR, can be displayed on the multi-display by connecting the video capable device to the AUX port using a dedicated 4-pole AUX cable. (Except destination package for Hong Kong)

        A01VQSL

        Tech Tips


        • Even if 3 or more USB devices are connected using a USB hub, only the first 2 connected USB devices will be recognized.

        • In order to display video from an iPod, it is necessary to connect the iPod to the USB and AUX ports using a dedicated iPod video cable and dedicated 4-pole AUX cable and select "video sound input cable" from the "iPod Settings" screen.

        • Depending on the specifications of the 4-pole AUX cable used for connecting a video capable device such as an iPod or VTR, the video function may not operate correctly. Use a dedicated 4-pole AUX cable when using the video function.

        • iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

        • The following iPod, iPod nano, iPod classic, iPod touch and iPhone devices can be used with this system.


        • Made for


          • iPod touch (5th generation)*1

          • iPod touch (4th generation)

          • iPod touch (3rd generation)

          • iPod touch (2nd generation)

          • iPod touch (1st generation)

          • iPod classic

          • iPod with video

          • iPod nano (7th generation)*1

          • iPod nano (6th generation)

          • iPod nano (5th generation)

          • iPod nano (4th generation)

          • iPod nano (3rd generation)

          • iPod nano (2nd generation)

          • iPod nano (1st generation)

          • iPhone 5*1

          • iPhone 4S

          • iPhone 4

          • iPhone 3GS

          • iPhone 3G

          • iPhone*2*3

        • *1: iPod video not supported.

        • *2: Destination package for Hong Kong

        • *3: Models with 10-speaker Surround Sound System and 17-speaker Surround Sound System

      5. Depending on differences between models, software versions, etc., some models may be incompatible with this system.

      6. USB memory devices that meet the following specifications are supported:

        USB Communication Formats

        • USB 2.0, Full Speed (12 Mbps)

        • USB 2.0, High Speed (480 Mbps)
        File System FAT 16/32
        Correspondence Class Mass Storage Class
        File Format MP3, WMA, AAC

      7. Photo data, which meets the following specifications, is supported:

        File Format JPEG
        Compatible Image Size Maximum 10MB
        Compatible Pixel Size Maximum 10,000,000 pixels

      8. Video data, which meets the following specifications, is supported:

        File Format WMV, AVI, MP4
        Compatible Image Size Maximum 1920 X 1080
        Compatible Frame Rates Maximum 60 i/30 p

    5. Bluetooth Audio System


      1. The Bluetooth audio system enables users to enjoy music stored on a portable audio player from the vehicle speakers via Bluetooth communication.

      2. The Bluetooth specifications and profiles required for operation are as follows:

        Specification/Profile Version
        Requirements Recommendations
        Bluetooth Specification Version 2.0 Version 3.0 + EDR
        Profile Advanced Audio Distribution Profile (A2DP) Version 1.0 Version 1.2
        Audio/Video Remote Control Profile (AVRCP) Version 1.0 Version 1.4

    6. Bluetooth Hands-free System


      1. The Bluetooth hands-free system allows the user to make or receive a call without taking their hands off the steering wheel when the system is linked with a Bluetooth-compatible cellular phone.

      2. The Bluetooth specifications and profiles required for operation are as follows:

        Specification/Profile Version
        Requirements Recommendations
        Bluetooth Specification Version 2.0 Version 3.0 + EDR
        Profile Hands Free Profile (HFP) Version 1.0 Version 1.6
        Object Push Profile (OPP) Version 1.1 Version 1.2
        Phone Book Access Profile (PBAP) Version 1.0 Version 1.1
        Message Access Profile (MAP)*1*2 - Version 1.0
        Serial Port Profile (SPP)*3 - Version 1.1
        Dial-up Networking Profile (DUN)*4 Version 1.1 -
        Personal Area Network (PAN)*4 Version 1.0 -

        *1: Models for Russia and Australia

        *2: Destination package for South Africa with navigation system

        *3: Models for Australia

        *4: Models for Russia with navigation system

        Tech Tips


        • The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.

          B0072JL "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

        • Some profiles described above may not be supported by the system depending on the audio head unit equipped.

        • If the specification of the connected Bluetooth phone is lower than the recommended or does not support the functions required, the available functions may be limited.

        • Registration and connection of a Bluetooth phone is not available when only Object Push Profile (OPP), Phone Book Access Profile (PBAP) and MAP (Message Access Profile) are supported.

      3. When a Bluetooth phone is connected to the audio head unit, e-mails and Short Message Service (SMS) messages received on the phone can be displayed or read out. In addition, it is possible to reply to the received e-mails and send Short Message Service (SMS) messages. (Messages may not be displayed depending on the message service or profile that the connected Bluetooth phone supports.)

    7. Status Display

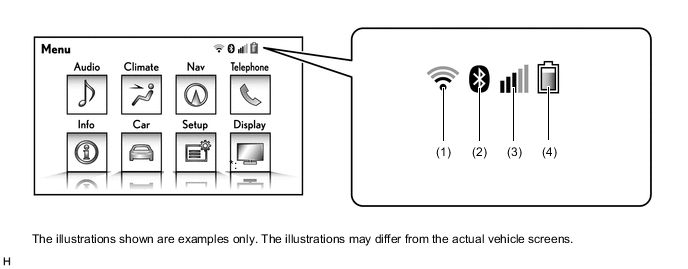

      1. The user can confirm the Wi-Fi and Bluetooth connection statuses, signal strength and remaining battery level of a cellular phone which is connected by Bluetooth, using the status bar displayed on the screen. The status bar is displayed in all modes.

        B00721FE01
        Item Outline
        (1) Wi-Fi connection status*1 Displays the Wi-Fi connection status between the audio head unit and a tethering-compatible cellular phone or mobile Wi-Fi router.
        (2) Bluetooth connection status Displays the Bluetooth connection status between the audio head unit and cellular phone.
        (3) Cellular phone signal strength*2 Displays the signal strength of the cellular phone connected by Bluetooth.
        (4) Cellular phone battery level*2 Displays the battery level of the cellular phone connected by Bluetooth.

        *1: Models for Russia with navigation system

        *2: May not be displayed depending on the Bluetooth specifications and profiles of the cellular phone.

    8. Voice Recognition Search System (Models for Russia and Australia and Destination Package for South Africa with Navigation System)


      1. Due to the Grapheme to Phoneme (G2P) function of converting sounds into text, songs on an iPod, iPod nano, iPod classic, iPod touch or iPhone device can be searched for by saying an artist name, album name, title or playlist name. Additionally, the adoption of the Gracenote MediaVOCS database improves the speech recognition ratio of the Grapheme to Phoneme (G2P) function.

        Tech Tips


        • Music recognition technology and related data are provided by Gracenote.

        • Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

          A01VQLY Gracenote, CDDB, MusicID, Playlist Plus, MediaVOCS, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

        • One or more patents owned by Gracenote apply to this product and service.

        • See the Gracenote website for a non-exhaustive list of applicable Gracenote patents.

    9. Automatic Sound Levelizer (ASL)


      1. The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases).

      2. Vehicle speed signals are received from the combination meter assembly and used for ASL control.

    10. Clari-Fi Music Restoration Technology (Models with 17-speaker Surround Sound System or Navigation System (with 17 Speaker Type))


      1. Files such as an MP3 or AAC have lost the audio details of the original music source during the file compression process. The Clari-Fi technology is used to restore the lost audio details and optimize data.

      2. During playback of a compressed music file, the Clari-Fi technology improves the frequency characteristics, dynamic range, low frequency sounds, etc. of the music file in real time, recreating the wide soundstage of the original music source.

    11. Steering Pad Switch


      1. Switches that the driver often uses are provided on the steering wheel for convenience.

  2. SPECIFICATION


    1. Audio System

      LHD Models
      Design Specification Destination
      A01VQO6

        Lexus Display Audio System:

      • Display Language Supported: English, German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungarian, Czech, Slovak and Romanian

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Automatic Sound Levelizer (ASL)

      • CD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • MirrorLink Function

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 6-speaker System

      • Unit: Fujitsu Ten

      		 Russia
      A01VQS5

        Lexus Display Audio System:

      • Display Language Supported: English and Arabic

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • MirrorLink Function

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Fujitsu Ten

      • Stereo Amplifier: Pioneer

      		 G.C.C. Countries
      A01VQTQ

        Lexus Display Audio System:

      • Display Language Supported: English, Spanish and Portuguese

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • MirrorLink Function

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Fujitsu Ten

      • Stereo Amplifier: Pioneer

      		 Central and South America
      A01VQSA

        10-speaker Surround Sound System:

      • Display Language Supported: Korean

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Fujitsu Ten

      • Stereo Amplifier: Pioneer

      		 South Korea
      A01VQN9

        17-speaker Surround Sound System:

      • Display Language Supported: Korean

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Fujitsu Ten

      • Stereo Amplifier: Mark Levinson

      		 South Korea
      A01VQQ8

        17-speaker Surround Sound System:

      • Display Language Supported: English, Spanish and Portuguese

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 Central and South America
      A01VQV1

        Navigation System:

      • Display Language Supported: English, German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungarian, Czech, Slovak and Romanian

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Transport Protocol Experts Group (TPEG) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Wi-Fi function

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Pioneer

      		 Russia
      A01VQSB

        Navigation System:

      • Display Language Supported: English, German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungarian, Czech, Slovak and Romanian

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Transport Protocol Experts Group (TPEG) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Wi-Fi function

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Mark Levinson

      		 Russia
      A01VQT6

        Navigation System:

      • Display Language Supported: English and Arabic

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Pioneer

      		 G.C.C. Countries
      A01VQNG

        Navigation System:

      • Display Language Supported: English and Arabic

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Mark Levinson

      		 G.C.C. Countries
      A01VQT6

        Navigation System:

      • Display Language Supported: Taiwanese

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Pioneer

      		 Taiwan
      A01VQNG

        Navigation System:

      • Display Language Supported: Taiwanese

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Mark Levinson

      		 Taiwan
      A01VQT6

        Navigation System:

      • Display Language Supported: English, Thai, Malay and Indonesian

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Video-CD (VCD) Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Pioneer

      		 Southeast Asia
      A01VQNG

        Navigation System:

      • Display Language Supported: English, Thai, Malay and Indonesian

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Video-CD (VCD) Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Mark Levinson

      		 Southeast Asia
      RHD Models
      Design Specification Destination
      A01VQQ1

        Lexus Display Audio System:

      • Display Language Supported: English

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Fujitsu Ten

      		 Australia
      A01VQM2

        Lexus Display Audio System:

      • Display Language Supported: English, Simplified Chinese and Traditional Chinese

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • MirrorLink Function

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Fujitsu Ten

      • Stereo Amplifier: Pioneer

      		 Hong Kong
      A01VQOP

        Lexus Display Audio System:

      • Display Language Supported: English, Thai, Malay and Indonesian

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Video-CD (VCD) Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • MirrorLink Function

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Fujitsu Ten

      • Stereo Amplifier: Pioneer

      		 Southeast Asia
      A01VQR9

        Lexus Display Audio System:

      • Display Language Supported: English

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • MirrorLink Function

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Fujitsu Ten

      • Stereo Amplifier: Pioneer

      		 South Africa
      A01VQUF

        Navigation System:

      • Display Language Supported: English

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): DENSO

      • Stereo Amplifier: Pioneer

      		 Australia
      A01VQQJ

        Navigation System:

      • Display Language Supported: English

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): DENSO

      • Stereo Amplifier: Mark Levinson

      		 Australia
      A01VQTI

        Navigation System:

      • Display Language Supported: English, Simplified Chinese and Traditional Chinese

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): DENSO

      • Stereo Amplifier: Pioneer

      		 Hong Kong
      A01VQSR

        Navigation System:

      • Display Language Supported: English, Simplified Chinese and Traditional Chinese

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): DENSO

      • Stereo Amplifier: Mark Levinson

      		 Hong Kong
      A01VQMV

        Navigation System:

      • Display Language Supported: English, Thai, Malay and Indonesian

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Video-CD (VCD) Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Pioneer

      		 Southeast Asia
      A01VQRS

        Navigation System:

      • Display Language Supported: English, Thai, Malay and Indonesian

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Video-CD (VCD) Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Mark Levinson

      		 Southeast Asia
      A01VQN5

        Navigation System:

      • Display Language Supported: English

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 10-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Pioneer

      		 South Africa
      A01VQOF

        Navigation System:

      • Display Language Supported: English

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • Clari-Fi Music Restoration Technology

      • CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod/iPhone Interface

      • USB Memory Device Interface

      • USB Video

      • USB Photo

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter (4-pole AUX cable supported)

      • Customizable vehicle settings can be changed

      • 17-speaker System

      • Unit: Pioneer

      • microSD Card (Disc Player Disc): Aisin AW

      • Stereo Amplifier: Mark Levinson

      		 South Africa

    2. 6-speaker System

      B00723TN01
      Location Speaker Name Quantity Size Impedance Rated Input Power
      (1) Front No. 2 Speaker Assembly 2 5.5 cm (2.2 in.) 4 Ω 20 W
      (2) Front No. 1 Speaker Assembly 2 18 cm (7.1 in.) 4 Ω 20 W
      (3) Rear Speaker Assembly 2 16 cm (6.3 in.) 4 Ω 20 W

    3. 10-speaker System

      B0071Y6N01
      Location Speaker Name Quantity Size Impedance Rated Input Power
      (1) Front No. 3 Speaker Assembly 1 6.5 cm (2.6 in.) 5 Ω 16 W
      (2) Front No. 2 Speaker Assembly (1 + 1) x 2 9 cm (3.5 in.) 4 Ω 20 W
      (3) Front No. 1 Speaker Assembly 2 18 cm (7.1 in.) 4 Ω 20 W
      (4) Rear Speaker Assembly 2 16 cm (6.3 in.) 4 Ω 20 W
      (5) Rear No. 3 Speaker Assembly 1 25 cm (9.8 in.) 2.5 Ω 32 W

    4. 17-speaker System

      B00724VN01
      Location Speaker Name Quantity Size Impedance Rated Input Power
      (1) Front No. 3 Speaker Assembly 1 + 1 9 cm (3.5 in.) 8 Ω 4 W
      (2) Front No. 2 Speaker Assembly (1 + 1) x 2 9 cm (3.5 in.) 8 Ω 4 W
      (3) Front No. 1 Speaker Assembly 2 18 cm (7.1 in.) 4.3 to 6.3 Ω 13.5 W
      (4) Rear No. 2 Speaker Assembly 2 2.5 cm (0.9 in.) 4 Ω 0.5 W
      (5) Rear Speaker Assembly 2 17 cm (6.7 in.) 3.6 to 5.6 Ω 18 W
      (6) Rear Header Speaker Assembly (1 + 1) x 2 9 cm (3.5 in.) 8 Ω 4 W
      (7) Rear No. 3 Speaker Assembly 1 25 cm (9.8 in.) 4.8 to 6.8 Ω 4 W

    5. Lexus Display Audio Controller (Remote Operation Board)

      B0072BXC01
      *a AUDIO Switch *b MENU Switch
      *c Return Switch *d Rotary Knob
      *e Rotary Switch (Cursor Operation) *f 4-way Switch (Cursor Operation)
      *g Push Switch (Enter) - -

    6. Steering Pad Switch Assembly

      B0072CBC01
      *a MODE Switch *b Seek +/- Switch
      *c On Hook Switch *d Voice Switch
      *e Off Hook Switch *f Volume +/- Switch

  3. MAIN FEATURES


    1. Lexus Display Audio Controller (Remote Operation Board)


      1. Press the AUDIO button or MENU button on the Lexus display audio controller (remote operation board) to start operation of the Lexus display audio system. Audio sources, such as radio and CD, can be operated on the audio screen. The set up function of the Lexus display audio system, telephone function, the air conditioning system, etc. can be operated from the menu screen.

      2. The user interface of the Lexus display audio system is optimized for operation using the Lexus display audio controller (remote operation board).

        B0072GNE01
        *1 Audio Screen
        *2 MENU Screen
        *3 The illustrations shown are examples only. The illustrations may differ from the actual vehicle screens.

    2. MirrorLink*1 Function


      1. To utilize the MirrorLink function, it is necessary to connect a compatible smartphone*2 to the radio receiver assembly using a USB cable.

      2. After a connection is established, the screen of the smartphone is displayed on the multi-display. Using this screen, the user can operate applications installed on the smartphone and listen to the audio of the smartphone via the vehicles speakers.

        Tech Tips

        *1: MirrorLink is a registered trademark of Car Connectivity Consortium.

        *2: This function is not available if the smartphone is not compliant with MirrorLink of Car Connectivity Consortium standards.

        B0072G9E01
