LEXUS DYNAMIC HANDLING

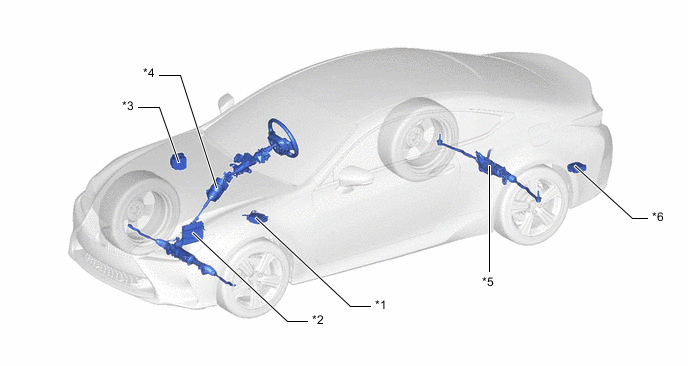

Figure 1. LHD Models
| *1 | POWER STEERING ECU ASSEMBLY | *2 | ECM |
| *3 | BRAKE ACTUATOR ASSEMBLY
|
*4 | STEERING ACTUATOR ASSEMBLY |
| *5 | REAR STEERING LINK ASSEMBLY | *6 | REAR STEERING CONTROL ECU |
Figure 2. RHD Models
| *1 | POWER STEERING ECU ASSEMBLY | *2 | ECM |
| *3 | BRAKE ACTUATOR ASSEMBLY
|
*4 | STEERING ACTUATOR ASSEMBLY |
| *5 | REAR STEERING LINK ASSEMBLY | *6 | REAR STEERING CONTROL ECU |

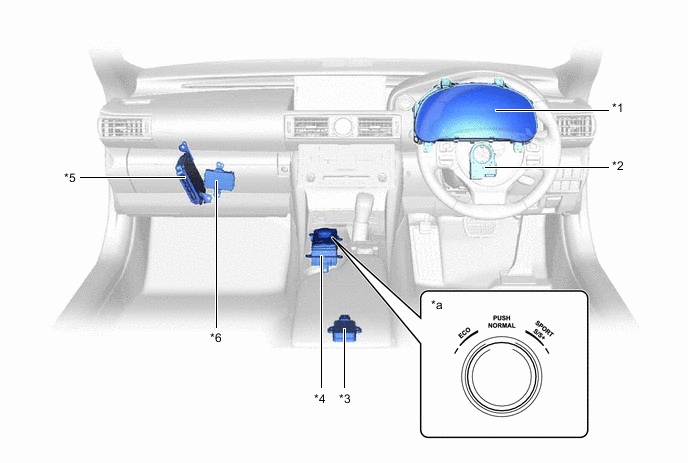

Figure 3. LHD Models
| *1 | COMBINATION METER ASSEMBLY | *2 | STEERING SENSOR |
| *3 | YAWRATE SENSOR | *4 | COMBINATION SWITCH ASSEMBLY |
| *5 | FRONT STEERING CONTROL ECU | *6 | NETWORK GATEWAY ECU |
| *a | Drive Mode Select | - | - |
Figure 4. RHD Models
| *1 | COMBINATION METER ASSEMBLY | *2 | STEERING SENSOR |
| *3 | YAWRATE SENSOR | *4 | COMBINATION SWITCH ASSEMBLY |
| *5 | FRONT STEERING CONTROL ECU | *6 | NETWORK GATEWAY ECU |
| *a | Drive Mode Select | - | - |
