REAR SUSPENSION SYSTEM

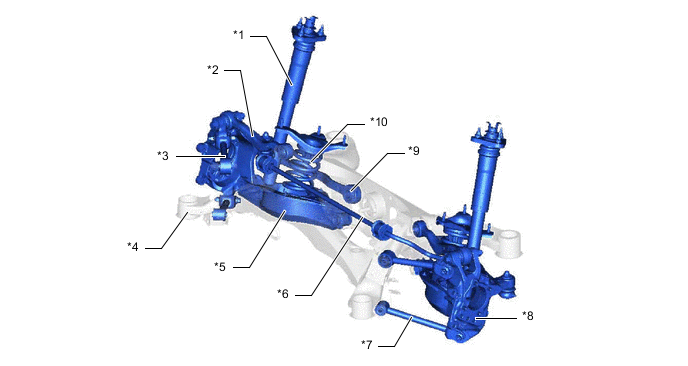

Figure 1. Models without Lexus Dynamic Handling System
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY |
| *3 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *6 | REAR STABILIZER BAR |
| *7 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *8 | REAR AXLE CARRIER SUB-ASSEMBLY |
| *9 | TOE CONTROL LINK SUB-ASSEMBLY | *10 | REAR COIL SPRING |

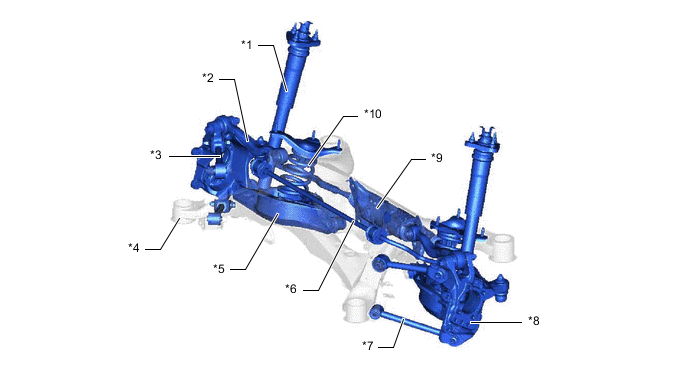

Figure 2. Models with Lexus Dynamic Handling System
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY |
| *3 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *6 | REAR STABILIZER BAR |
| *7 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *8 | REAR AXLE CARRIER SUB-ASSEMBLY |
| *9 | REAR STEERING LINK ASSEMBLY | *10 | REAR COIL SPRING |
