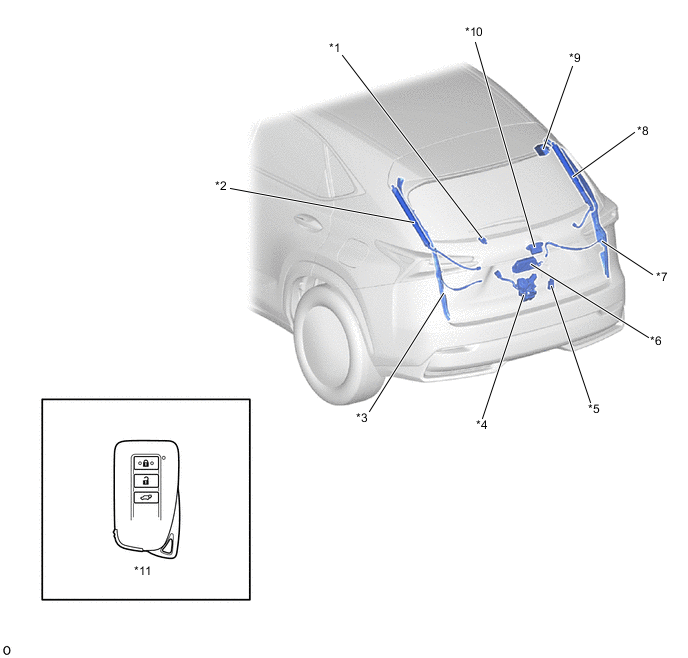

POWER BACK DOOR SYSTEM
| *1 | Power Back Door Warning Buzzer | *2 | Power Back Door Unit Assembly Set LH |
| *3 | Touch Sensor (Power Back Door Sensor Assembly LH) | *4 | Back Door Lock Assembly |
| *5 | Back Door Control Switch | *6 | Power Back Door ECU (Multiplex Network Door ECU) |
| *7 | Touch Sensor (Power Back Door Sensor Assembly RH) | *8 | Power Back Door Unit Assembly Set RH |
| *9 | Smart Door Control Receiver Assembly | *10 | Back Door Opener Switch Assembly |
| *11 | Electrical Key Transmitter Sub-assembly
|
- | - |

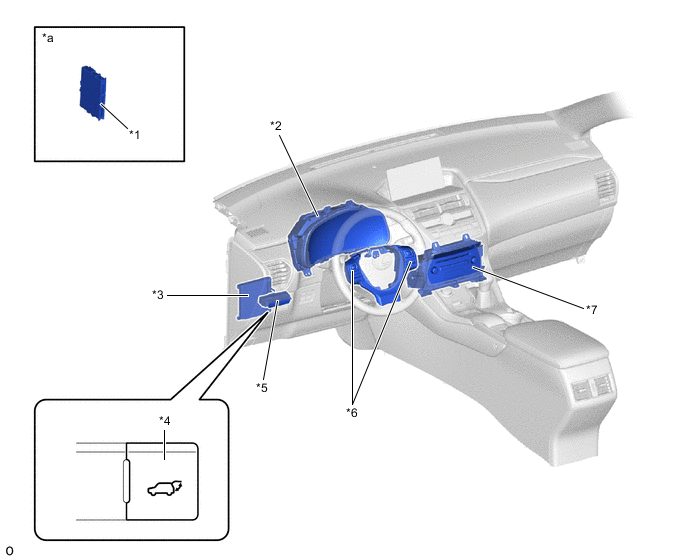

| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | Combination Meter Assembly |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Power Back Door Switch |
| *5 | Combination Switch Assembly | *6 | Steering Pad Switch Assembly |
| *7 | Radio Receiver Assembly | - | - |
| *a | Refer to Service Bulletin for the installation position of the part | - | - |
