HEATED STEERING WHEEL SYSTEM


  1. CONSTRUCTION

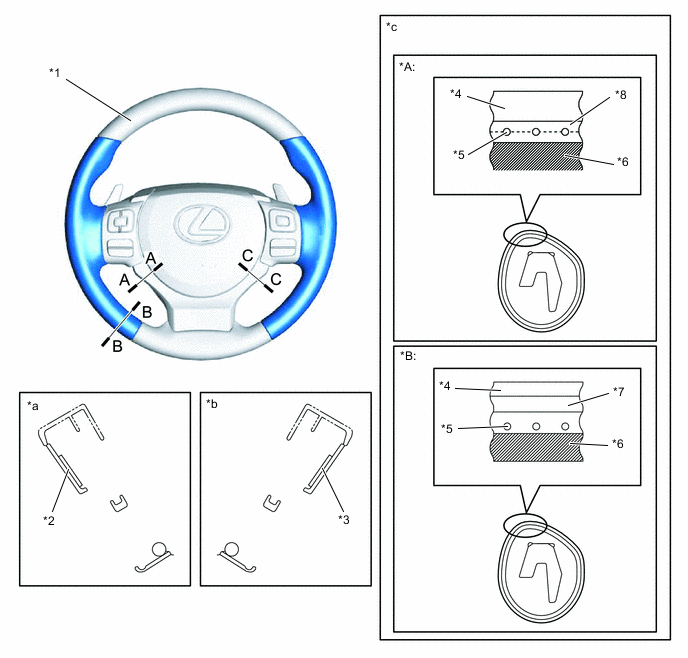

    1. The heater portion of the steering wheel assembly consists of a thermistor, heater wire and thermostat.

      B002GC2C01
      *A Models with Lane Departure Alert System *B Models without Lane Departure Alert System
      *1 Steering Wheel Assembly *2 Thermostat
      *3 Thermistor *4 Leather
      *5 Heater Wire *6 Urethane
      *7 Polychloroprene *8 Cushion
      *a A-A Cross Section *b C-C Cross Section
      *c B-B Cross Section - -
