BRAKE SYSTEM


  1. CONSTRUCTION


    1. The stroke simulator is positioned beside the brake master cylinder assembly. It generates a pedal stroke in accordance with the driver's pedal effort during braking. Containing 2 types of coil springs with different spring constants, the stroke simulator provides pedal stroke characteristics in relation to the master cylinder pressure.

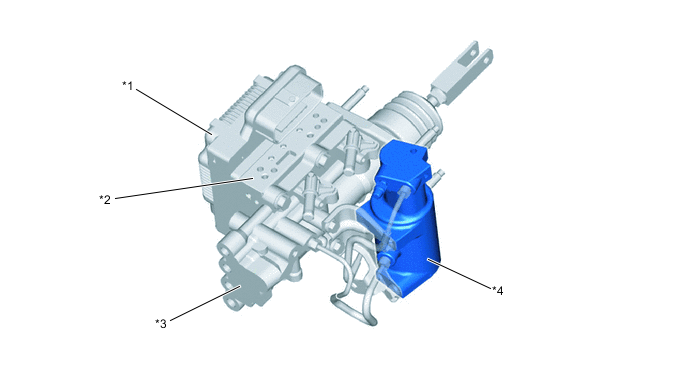

      A01CSDHC01
      *1 Skid Control ECU *2 Brake Actuator
      *3 Brake Master Cylinder *4 Brake Master Stroke Simulator Cylinder Assembly

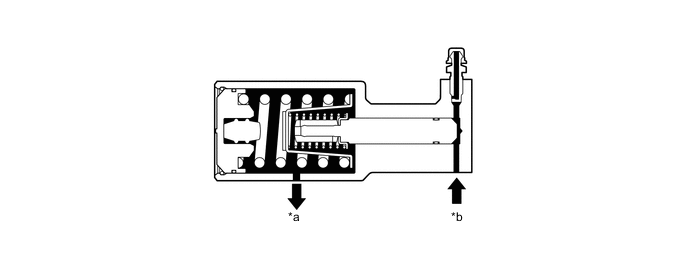

      A01CRXYC01
      *a To Brake Master Cylinder *b From Brake Actuator
