ADAPTIVE VARIABLE SUSPENSION SYSTEM

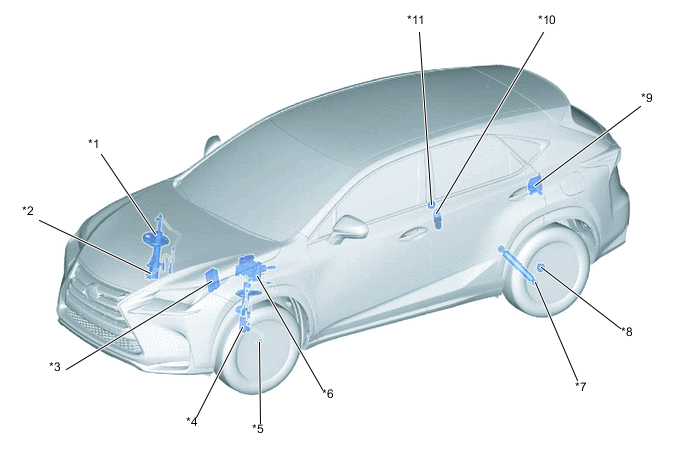

A01CS9WC01
*1

Front Shock Absorber Assembly RH


  • Absorber Control Actuator

 *2 Front Speed Sensor RH
*3 ECM *4

Front Shock Absorber Assembly LH


  • Absorber Control Actuator
*5 Front Speed Sensor LH *6

Brake Booster with Master Cylinder Assembly


  • Skid Control ECU

  • Wheel Cylinder Pressure Sensor
*7

Rear Shock Absorber Assembly LH


  • Absorber Control Actuator

 *8 Rear Speed Sensor LH
*9

Absorber Control ECU


  • Rear Acceleration Sensor

 *10

Rear Shock Absorber Assembly RH


  • Absorber Control Actuator
*11 Rear Speed Sensor RH - -

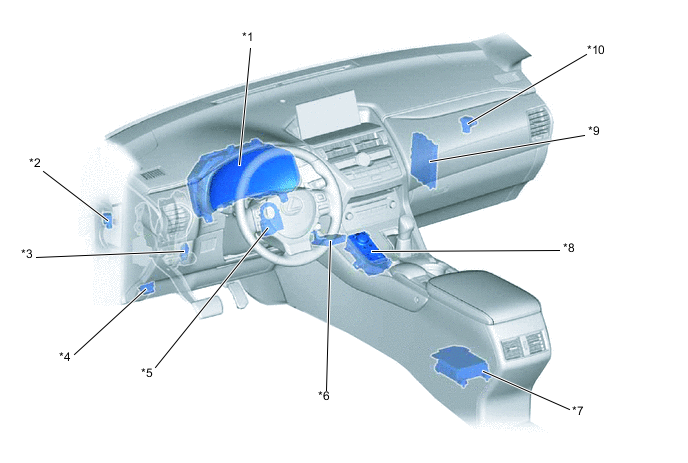

A01CRU1C01
*1

Combination Meter Assembly


  • Multi-information Display

 *2 Front Acceleration Sensor Assembly LH
*3 Stop Light Switch Assembly *4 DLC3
*5 Steering Sensor *6 Driving Support ECU Assembly (Modelswith Pre-crash Safety System)
*7

Airbag ECU Assembly


  • Deceleration Sensor

 *8

Integration Control and Panel Assembly


  • Drive Mode Select
*9 Hybrid Vehicle Control ECU *10 Front Acceleration Sensor Assembly RH
