LUBRICATION SYSTEM


  1. CONSTRUCTION


    1. An oil filter with a replaceable oil filter element is used. The oil filter element uses a high performance filter paper to improve filtration performance. It is also combustible for environmental protection.

    2. An aluminum alloy filter cap sub-assembly is used to extend its life.

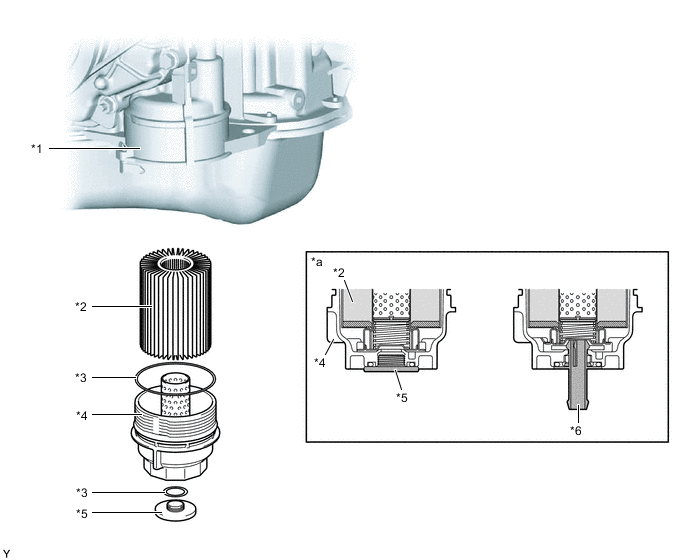

      A01CS52C01
      *1 Stiffening Crank Case Assembly *2 Oil Filter Element
      *3 Oil Filter Cap O-ring *4 Oil Filter Cap Assembly
      *5 Oil Filter Drain Plug *6 Drain Pipe
      *a Oil Filter Cross Section - -
