LUBRICATION SYSTEM


  1. CONSTRUCTION


    1. Oil nozzle sub-assemblies are provided on the left side of the cylinder block for cooling and lubricating the pistons.

    2. Each oil nozzle sub-assembly contains a check ball to prevent oil from being fed when the oil pressure is low. This prevents the overall oil pressure in the engine from dropping.

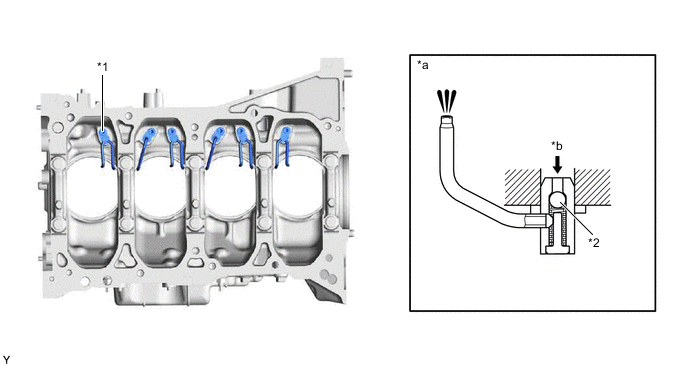

      A01CS3TC01
      *1 No. 2 Oil Nozzle Sub-assembly *2 Check Ball
      *a Oil Nozzle Sub-assembly Cross Section *b Oil
