LIGHTING SYSTEM

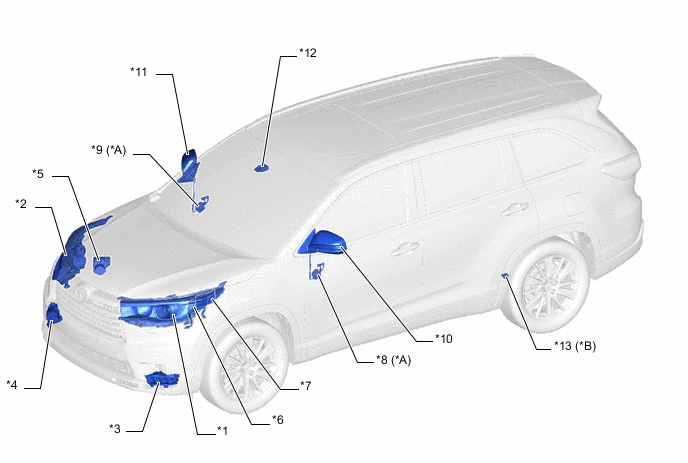

| *A | Models with Door Mirror Foot Light | *B | Models with LED Headlights |
| *1 | HEADLIGHT ASSEMBLY LH
|
*2 | HEADLIGHT ASSEMBLY RH
|
| *3 | DAYTIME RUNNING LIGHT ASSEMBLY LH | *4 | DAYTIME RUNNING LIGHT ASSEMBLY RH |
| *5 | BRAKE ACTUATOR ASSEMBLY
|
*6 | ECM |
| *7 | SEMICONDUCTOR PWR INTEGRATION ECU | *8 | OUTER MIRROR CONTROL ECU ASSEMBLY (LH) |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY (RH) | *10 | OUTER REAR VIEW MIRROR ASSEMBLY LH
|
| *11 | OUTER REAR VIEW MIRROR ASSEMBLY RH
|
*12 | AUTOMATIC HIGH BEAM SENSOR (LANE DEPARTURE WARNING CAMERA) |
| *13 | REAR HEIGHT CONTROL SENSOR SUB-ASSMEBLY LH | - | - |
| *A | Models with Rear Fog Lights | - | - |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *3 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *4 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *9 | REAR FOG LIGHT RELAY | - | - |

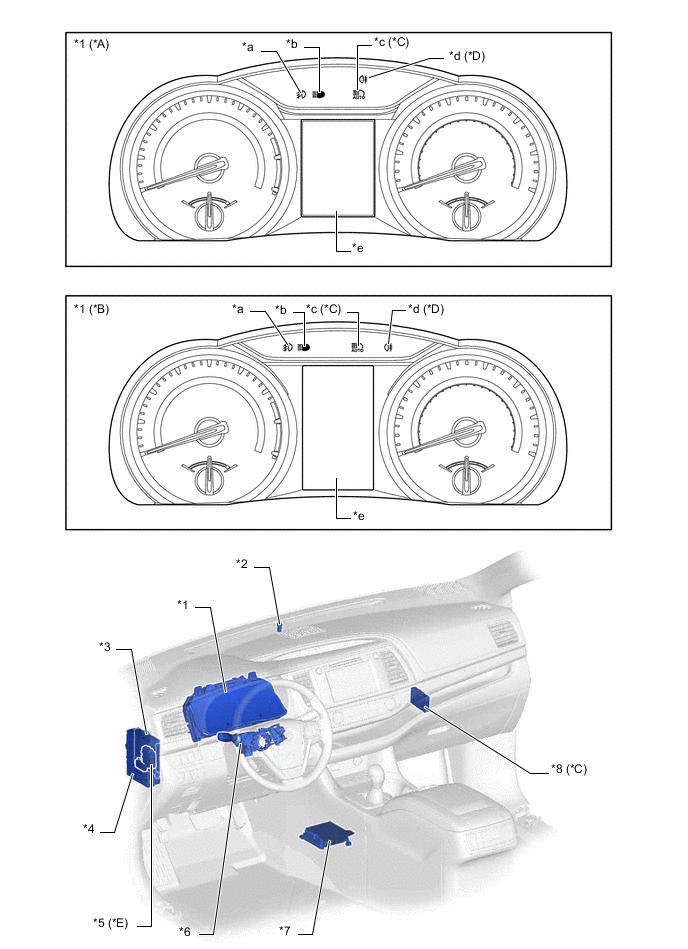

Figure 1. LHD Models
| *A | Models with Monochrome Type Multi-information Display | *B | Models with Color Type Multi-information Display |
| *C | Models with Automatic High Beam System | *D | Models with Rear Fog Lights |
| *E | Models with LED Headlights | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *5 | HEADLIGHT LEVELING ECU ASSEMBLY | *6 | HEADLIGHT DIMMER SWITCH ASSEMBLY
|
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | NETWORK GATEWAY ECU |
| *a | Front Fog Light Indicator Light | *b | High Beam Indicator Light |
| *c | Automatic High Beam Indicator Light | *d | Rear Fog Light Indicator Light |
| *e | Multi-information Display | - | - |
Figure 2. LHD Models
| *A | Models with Smart Entry and Start System | *B | Models without Smart Entry and Start System |
| *C | Models with Automatic High Beam System | *D | Models with Halogen Headlights |
| *1 | AUTO HIGH BEAM SWITCH | *2 | HEADLIGHT LEVELING SWITCH |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | IGNITION OR STARTER SWITCH ASSEMBLY | *6 | ENGINE SWITCH |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

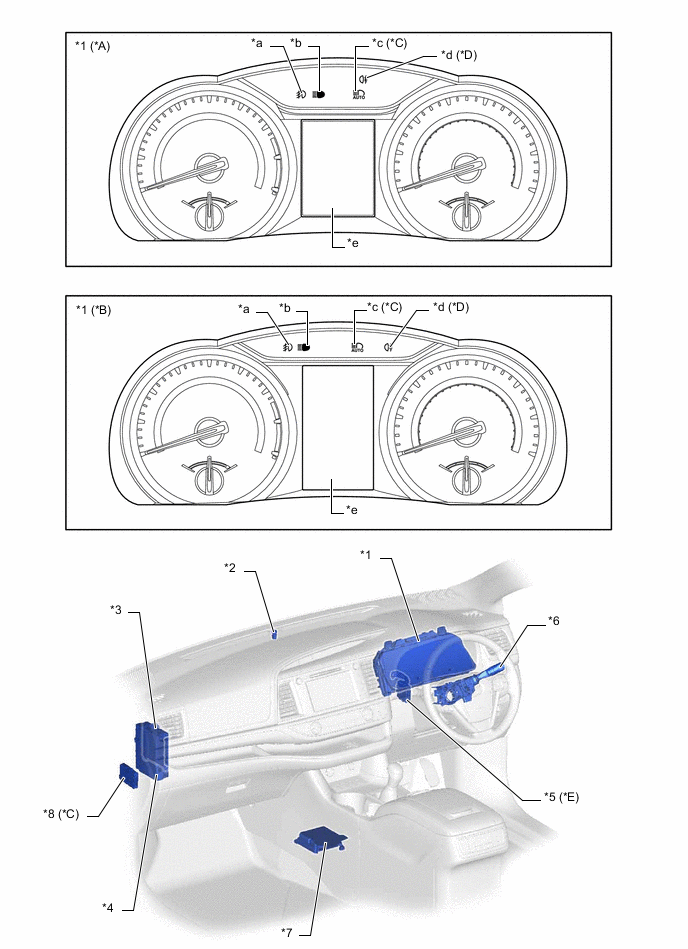

Figure 3. RHD Models
| *A | Models with Monochrome Type Multi-information Display | *B | Models with Color Type Multi-information Display |
| *C | Models with Automatic High Beam System | *D | Models with Rear Fog Lights |
| *E | Models with LED Headlights | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *5 | HEADLIGHT LEVELING ECU ASSEMBLY | *6 | HEADLIGHT DIMMER SWITCH ASSEMBLY
|
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | NETWORK GATEWAY ECU |
| *a | Front Fog Light Indicator Light | *b | High Beam Indicator Light |
| *c | Automatic High Beam Indicator Light | *d | Rear Fog Light Indicator Light |
| *e | Multi-information Display | - | - |
Figure 4. RHD Models
| *A | Models with Smart Entry and Start System | *B | Models without Smart Entry and Start System |
| *C | Models with Automatic High Beam System | - | - |
| *1 | AUTO HIGH BEAM SWITCH | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | PARKING BRAKE SWITCH ASSEMBLY | *4 | IGNITION OR STARTER SWITCH ASSEMBLY |
| *5 | ENGINE SWITCH | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
